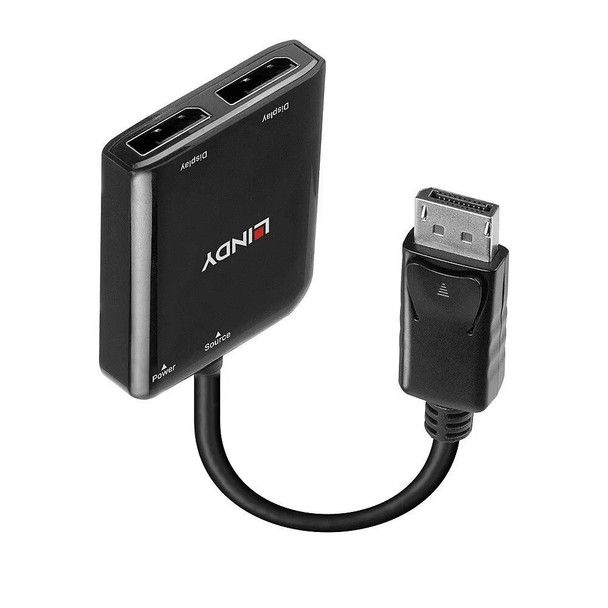

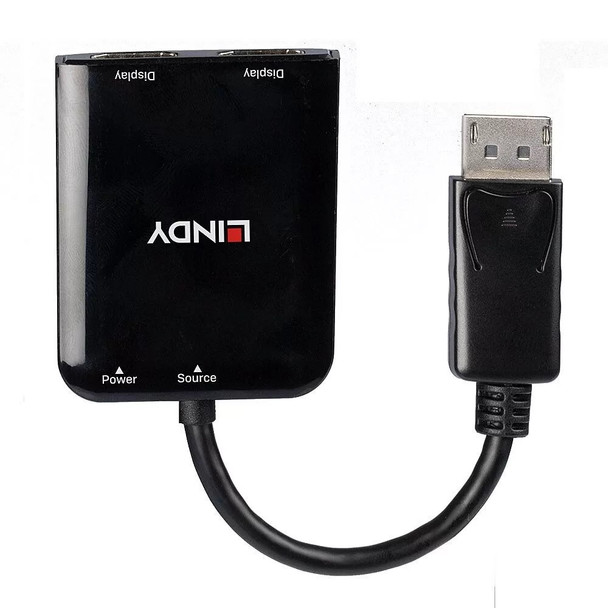

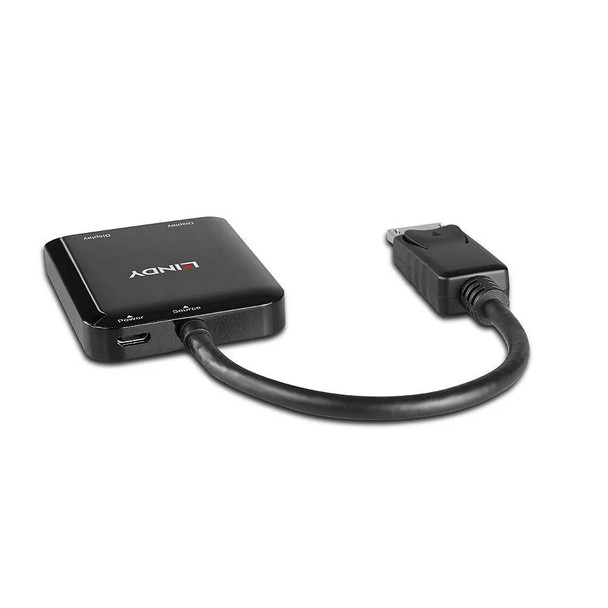

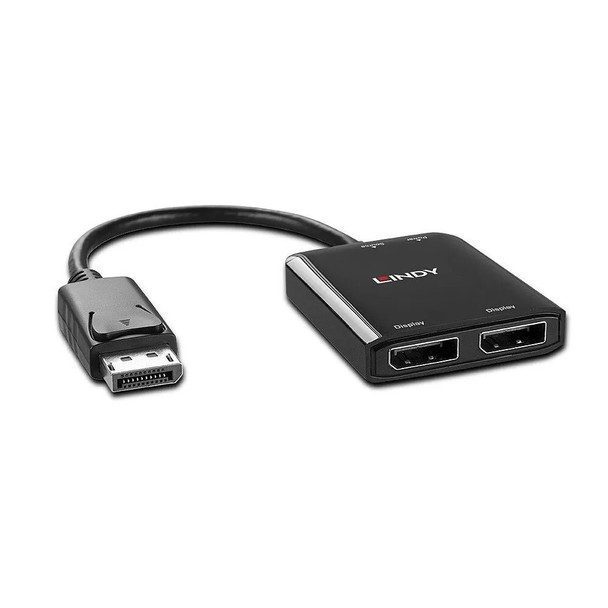

The Lindy 2 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 DisplayPort monitors.

MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 2 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail.

Content can also be independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

• Connect 2 DisplayPort displays to a DisplayPort computer or laptop
• Expand, duplicate or display independent DP signals over dual DP monitors
• Supports resolutions up to 2 x 4K 30Hz, and audio up to 7.1CH
• Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage
• 2 Year Warranty

Please note: This hub is not compatible with Apple products

Package Contents

• DisplayPort MST Hub
• USB Micro-B to USB Type A Cable

TECHNICAL INFORMATION:

Specification

• AV Interface: DisplayPort
• Interface Standard: DP 1.2
• Supported Bandwidth: 21.6Gbps
• Maximum Resolution: 2 x 3840x2160@30Hx 4:4:4 8bit
• Support: HDCP 1.4
• Supported Audio: Up to 7.1CH

Connectors

• Input: DisplayPort (Male)
• Output: 2 x DisplayPort (Female)
• Power: Micro-USB (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 254x49x10mm (10x1.93x0.39in)
• Housing Material: ABS
• Net Weight: 0.055kg (0.12lb)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 5V1A
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x10mm (6.85x7.64x0.39in)
• Gross Weight: 0.062kg (0.14lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, UL & REACH
