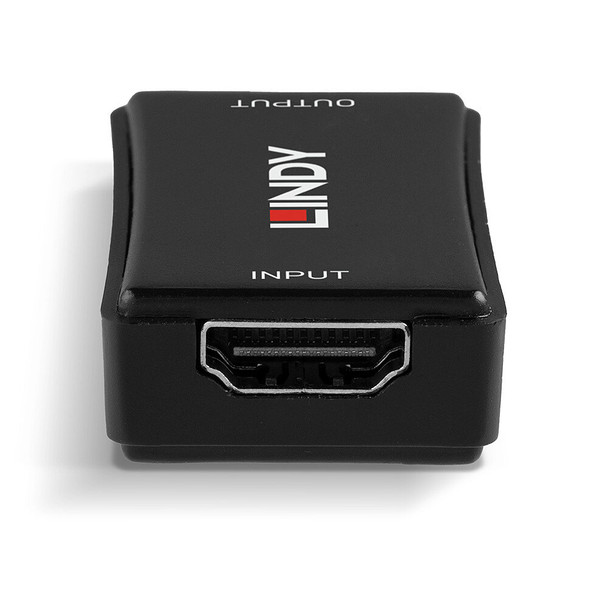

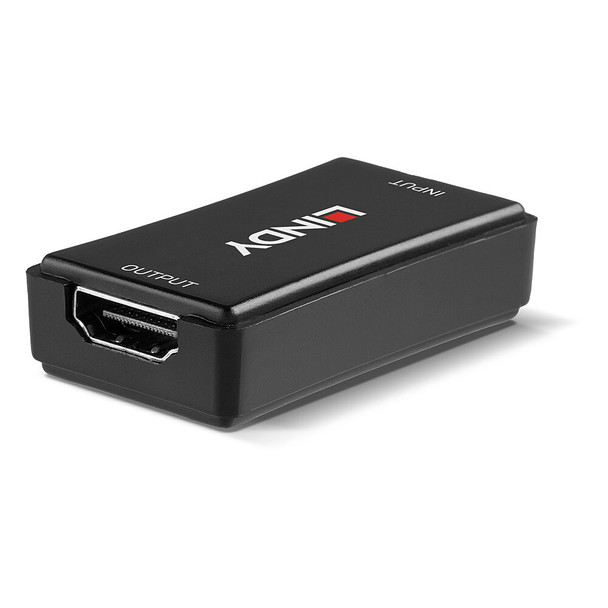

Lindy 50m HDMI 2.0 18G Repeater

The Lindy 50m HDMI 2.0 18G Repeater is a high-end solution for extending premium HDMI signals up to 50m while maintaining reliable, zero-compromise transmission. Supporting resolutions up to 3840x2160@60Hz (4:4:4, 8-bit) with HDR, it delivers lifelike colour, enhanced contrast, and full support for protected 4K content via HDCP pass-through. Its sleek, minimalistic metal housing is ideal for professional AV/IT and home cinema installs where space is at a premium.

Key Features

• Extends HDMI 2.0 18Gbps signals up to 50m (installation/cable dependent)
• Supports up to 3840x2160@60Hz 4:4:4 (8-bit) and HDR
• HDCP pass-through for seamless playback of protected 4K content
• Compact, discreet design with durable metal housing
• Optional USB Micro-B power input for challenging runs or marginal sources
• Backed by a 2-year warranty

Applications

• Professional AV/IT installations needing long HDMI runs
• Home cinema links between 4K sources and projectors/TVs
• Connecting next-gen games consoles or 4K Blu-ray players over extended distances
• Retail, education, and corporate environments requiring reliable 4K distribution

Performance & Distance Guide

• Total link distance (source → cable → repeater → cable → display):
• Up to 40m at 3840x2160@60Hz 4:2:0 8-bit
• Up to 25m at 3840x2160@60Hz 4:2:0 12-bit
• Up to 20m at 3840x2160@60Hz 4:4:4 8-bit

• Per-side guidance (quality HDMI 2.0 18G cables recommended):
• Input side: up to 20m (4:2:0 8-bit) / 15m (4:2:0 12-bit) / 10m (4:4:4 8-bit)
• Output side: up to 20m (4:2:0 8-bit) / 10m (4:2:0 12-bit) / 10m (4:4:4 8-bit)

Note: Achievable distances depend on cable quality and installation factors. Use certified high-quality HDMI 2.0 (18G) cables for best results.

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8-bit
• HDR Support: Yes
• HDCP: Pass-through
• Transmission Medium: 2 × HDMI cables (in/out)
• Special Features: —

Connectors

• Input: HDMI (Female)
• Output: HDMI (Female)

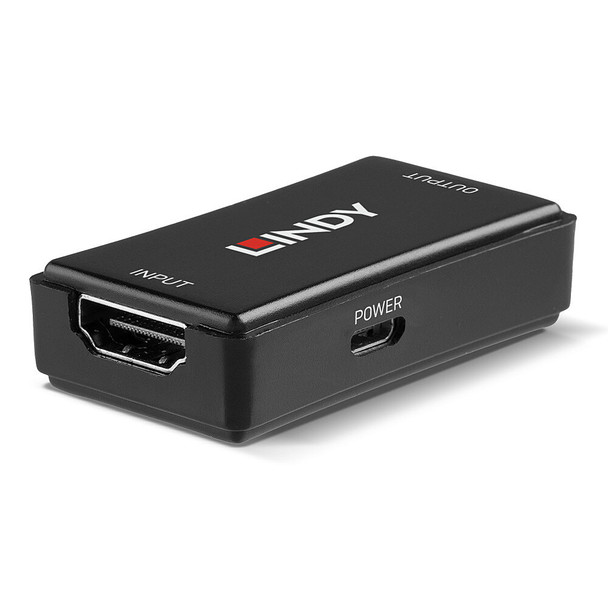

• Power (optional): USB Micro-B (Female)

Physical Properties

• Dimensions (W×H×D): 28 × 51 × 13mm
• Housing Material: Metal
• Net Weight: 0.022kg
• Operating Temperature: 0°C – 45°C
• Storage Temperature: −20°C – 60°C
• Humidity: 20–90% RH (non-condensing)
• Colour: Black

Package Contents

• HDMI 2.0 18G UHD HDR Repeater
• Lindy Manual

Product Compliance

CE, FCC, RoHS & REACH compliant; California Proposition 65. Warranty: 2 years.

Download

• User Manual for HDMI 2.0 Repeater
