Lindy HDMI 18G Audio Extractor

The Lindy HDMI 18G Audio Extractor provides a seamless solution for extracting both digital and analogue audio from an HDMI source while passing the video signal to a 4K UHD display or projector. This extractor is ideal for users who need to connect non-HDMI AV receivers or analogue 2-channel speaker setups to HDMI source devices. It offers flexibility for various AV applications, including home installations, retail environments, and conference rooms.

Key Features

• Extracts stereo or multi-channel audio (up to 7.1) from an HDMI source
• Supports 4K UHD 4096x2160@60Hz video pass-through with HDR for enhanced color and contrast
• Supports both digital audio (SPDIF) and analogue audio (L/R RCA connections)
• High Bit Rate Audio pass-through for superior music playback
• Supports CEC pass-through for convenient control
• Compact design with mounting brackets for secure, tidy installation
• 2-year warranty for long-lasting reliability

Applications

This audio extractor is perfect for:

• Connecting HDMI sources to non-HDMI audio systems (e.g., older AV receivers or analogue speakers)
• Home AV setups requiring separate audio and video output
• Retail stores and meeting rooms using separate non-HDMI audio systems
• Providing immersive surround sound for films, games, and music in various environments

Package Contents

• HDMI 18G Audio Extractor
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Technical Specifications

• Video Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit, 3840x2160@60Hz 4:2:2 12bit
• HDCP Support: 2.2 / 1.4
• Audio Interface: SPDIF, Analogue L/R
• Supported Audio: Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD (via HDMI); Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH (via Optical); Analogue Stereo 2CH (via 3.5mm)
• Maximum Audio Sample Rate: 24-bit/192kHz
• Input Impedance: 1K
• Output Impedance: 10KΩ
• Output Voltage: 5V 1A
• Frequency Response: <3db; 20Hz ~ 20kHz
• Signal to Noise Ratio: 85db

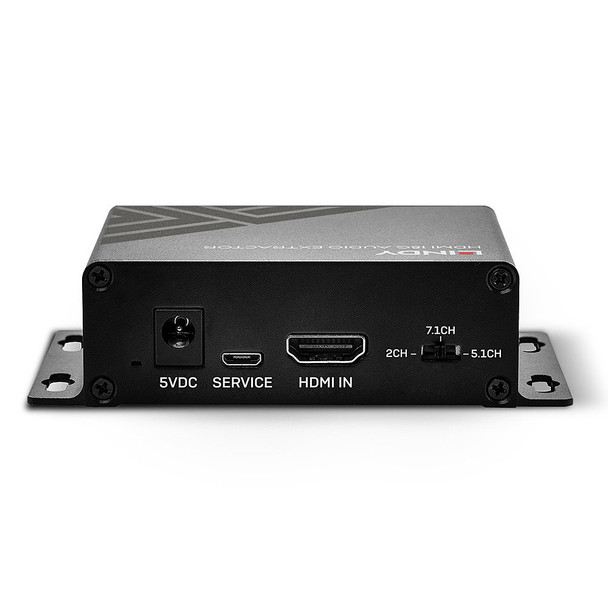

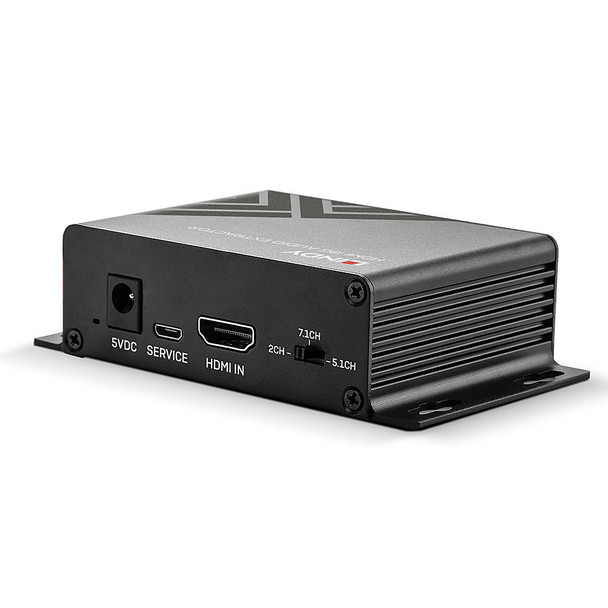

• Connectors: HDMI Type A (Male), SPDIF (Female), Analogue L/R (Female), USB Micro-B (Female), Power: 5.5/2.1mm
• Dimensions: 104.4x64x28.3mm (4.11x2.52x1.11in)
• Housing Material: Metal
• Net Weight: 0.118kg (0.26lb)
• Operating Temperature: -5°C to 35°C (23°F to 95°F)
• Storage Temperature: -5°C to 35°C (23°F to 95°F)
• Humidity: 5% to 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black
• Certifications: CE, FCC, RoHS, REACH, California Proposition 65

Download

• User Manual for HDMI 18G Audio Extractor
• Datasheet for 38361 HDMI 18G Audio Extractor

Why Choose the Lindy HDMI 18G Audio Extractor?

The Lindy HDMI 18G Audio Extractor provides an easy and effective way to manage your audio and video setups by offering both HDMI video pass-through and versatile audio extraction options. With support for 4K UHD video, HDR, and multiple audio formats, it's a perfect solution for high-quality audio and video management across various professional and home environments.
