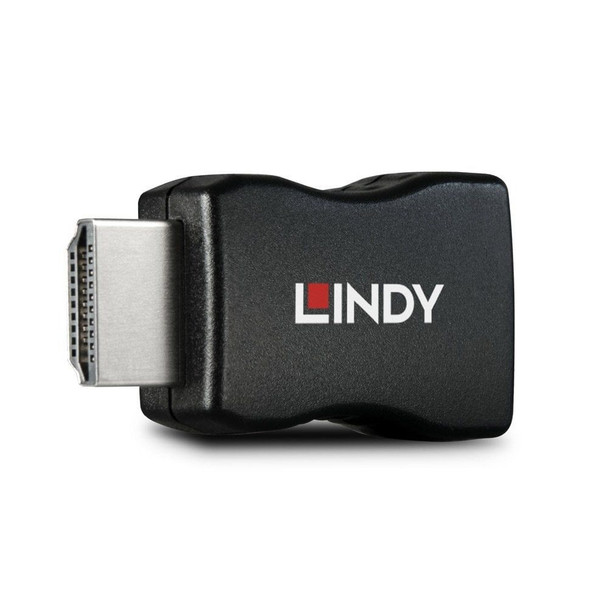

Lindy HDMI 10.2G EDID Emulator

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The Lindy HDMI 10.2 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2160p including the ability to pass–through HDCP content, the Emulator is suitable for use with a wide variety of PC and AV applications. When used with the Lindy HDMI / VGA / DVI EDID Recorder (32120) this compact device can provide cloned EDID information to your graphics card.

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

• Continuously emulates HDMI EDID information
• Supports resolutions up to 3840x2160@30Hz including HDCP pass-through
• For use with 32120 for cloning
• Powered via HDMI Source Interface
• 2 Year warranty

*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators

Package Contents

• HDMI 1.4 EDID Emulator
• Lindy Manual

TECHNICAL INFORMATION:

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8Bit
• Video EDID:
  640 x 480p 60/72/75Hz
  720 x 400p 60Hz/70Hz
  720 x 480i 60Hz
  720 x 576p 50Hz
  720 x 576i 50Hz
  800 x 600p 56/60/72/75Hz
  832 x 624p 75Hz
  1024 x 768p 60/70/75Hz
  1280 x 800p 60Hz
  1280 x 720p 50/60Hz
  1152 x 864p 75Hz
  1152 x 870p 75Hz
  1280 x 1024p 60/75Hz
  1280 x 960p 60Hz
  1440 x 900p 60Hz
  1600 x 1200p 60Hz
  1680 x 1050p 60Hz
  1920 x 1080i/p 50/60Hz
  1920 x 1200p 60Hz
  2560 x 1440p 60Hz
  3840 x 2160p 24/30Hz
• Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
• HDCP Support: 1.4
• Special Features: CEC Compatible

Connectors

• Input: HDMI Type A Male
• Output: HDMI Type A Female
• Power: Via HDMI Source Interface

Physical Properties

• Dimensions (approx.) WxDxH: 24x43x12.3mm (0.94x1.69x0.48in)
• Housing Material: ABS
• Net Weight: 0.008kg (0.02lb)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 0 - 80% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 136x138mm (5.35x5.43in)
• Gross Weight: 0.013kg (0.03lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH
