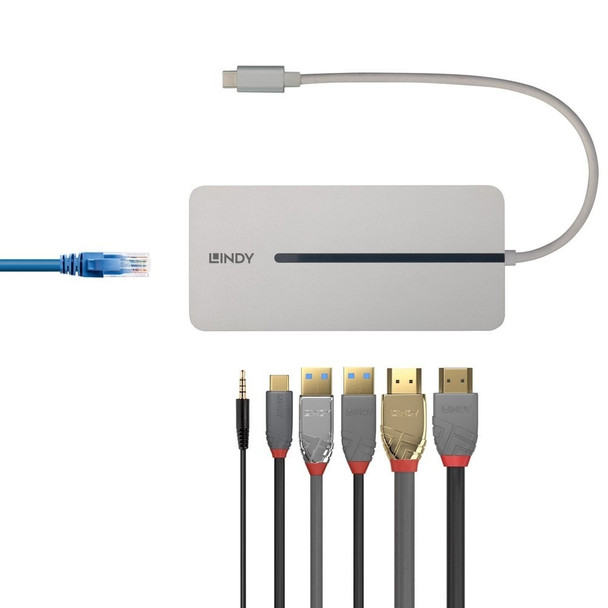

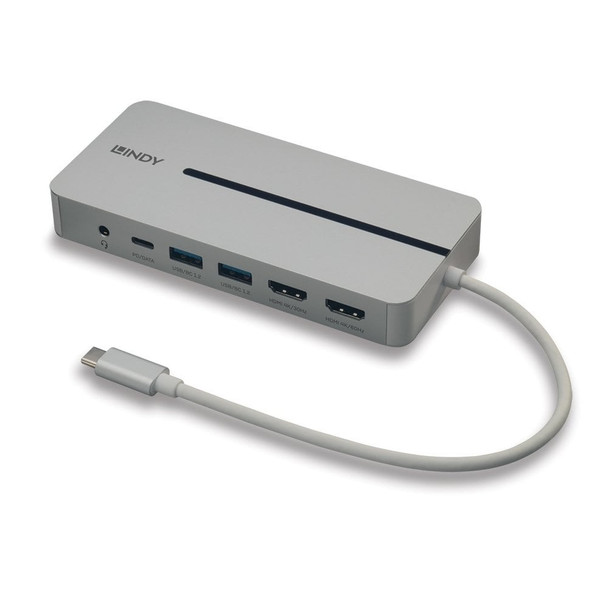

Lindy DST-Mx Duo, USB-C Laptop/Macbook Docking Station

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The DST-Mx Duo Docking Station is a premium solution for connecting your laptop or MacBook (including M1 & M2) to a range of peripherals. Part of Lindy’s expert range of laptop docking stations, this product has been designed with Mac users in mind. Maximising the productivity of any creative by providing extended screen real estate with Ultra HD quality as well as SuperSpeed data transfer for all your USB peripherals. Housed in a robust aluminium body, this docking station is reliable and compact, perfect for travel.

• Adds Dual 4K 3840x2160 HDMI displays to Windows and Apple M1 PC’s
• Provides 2 USB Type A ports & 1 USB Type C port (5Gbps), Gigabit Ethernet and an Audio combo port
• Software-based Silicon solution to connect any display to any computer that supports USB
• USB Power Delivery 3.0 (100W) allows charging the laptop while using the DST-Mx Duo
• 2-year warranty

Extended Displays
Unlike other docking stations, the DST-Mx Duo can support two external displays at 4k resolution with your MacBook. This is thanks to the docks support for MST (Multi Stream Transport) for Mac. There are two HDMI ports, one with 60Hz capability and the other with 30Hz. Simply plug in your HDMI displays and the docking station will provide Ultra HD resolution through a single USB-C connection.

Added Connectivity
Providing all the ports you will need for a productive workflow; this docking station uses a single USB 3.2 Type C cable to connect up to two 4k HDMI displays whilst providing Gigabit Ethernet connection, Superspeed 5Gbps USB Type A ports and a 3.5mm combined headphone jack.

Pass-through Charging
Thanks to the integrated PD 3.0 port, you can plug your device’s charger into the docking station and experience up to 100W pass-through charging (depending on the charger’s capabilities). This allows you to charge your device whilst working without having to use up any more ports, meaning there is more connectivity potential for other peripherals and accessories.

Easy Driver Installation
A driver DOES need to be installed for this docking station. A software-based solution is required for MST for Mac to enable the dual extended display feature. Download the driver straight from the product page, connect the docking station to your device and you are good to go.

Package Contents:

• USB 3.2 Type C Mini Dock
• Lindy Manual

TECHNICAL INFORMATION:

Specifications:

• Interface: USB Type C to 2x HDMI / 2x USB Type A / 1x USB Type C / 1x RJ45 / 1x Audio 3.5mm
• Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4 + 2.0, Gigabit LAN, Audio (combo)
• Supported Bandwidth: 10.8Gbps (HDMI 1.4), 18Gbps (HDMI 2.0), 5Gbps (USB 3.0), 10/100/100Mbps (LAN)
• Maximum Input Resolution: 3840x2160@60Hz
• Maximum Output Resolution: Single display: 4K 60Hz, Dual display: 1x 4K60Hz, 1x 4K30Hz
• Chipset: SM768, ANX7518, 2xVL817, AX88179A, HS-100B, IM2600
• Compatibility: USB Type C or Thunderbolt 3 equipped computers.
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 2.2
• Supported Audio: Supports 48/44.1kHz Audio sampling rate
• Separate Audio Ports: 1x Audio combo port 3.5mm
• Special Features: USB Type C Female port supports power and data, 2x Battery Charging 1.2 port, Software-based Silicon solution to connect any display to any computer that supports USB, compatible with Windows and MacOS; MST dual display for Apple M1

Connectors:

• Inputs: 1 x USB Type C (Male)
• Outputs: 2x HDMI (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x 3.5mm Audio (Female)
• Power: 1 x USB Type C (Female) PD port

Physical Properties:

• Dimensions WxDxH: 140x65x20mm (5.51x2.56x0.79in)
• Housing Material: Aluminium, ABS (RJ45 port cover)
• Net Weight: 0.2kg (0.44lb)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40 °C - 80°C (-40°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: Bus-powered
• Colour: Silver, white

Miscellaneous:

• Packaging Type: Carton Box
• Packaging Dimensions: 207x137x38mm (8.15x5.39x1.5in)
• Gross Weight: 0.3kg (0.66lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65

DOWNLOADS:

• User Manual for DST-Pro M USB-C Laptop Docking Station (pdf)
• Drivers, Software & Tools (zip)
