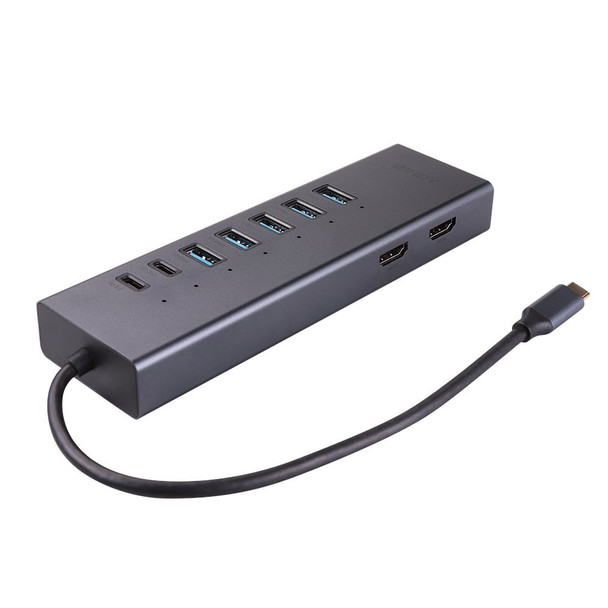

Lindy DST-Mini Duo USB-C Laptop Mini Docking Station 2x 4K HDMI

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The DST-Mini Duo is a high performance and versatile solution for connecting laptops, tablets or smartphones to a range of interfaces including 2 HDMI displays. Featuring all critical interfaces required for a modern workstation, this Mini Docking Station uses a single USB 3.2 Type C cable to connect up to two 4K displays simultaneously*, while improving connectivity to other devices through Gigabit Ethernet and USB 3.2 / 3.1 SuperSpeed 10Gbps and 5Gbps ports.

This Laptop Docking Station enables the connection of an HDMI display to a laptop at resolutions of 8K 7680x4320 30Hz using DisplayPort Alternate Mode through the USB Type C port. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming. It features three USB 3.2 Gen 2 Type C and A ports providing 10Gbps high data transfer speeds as well as three 5Gbps USB Type A ports.

This Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.

• Connects 2 HDMI displays, USB peripherals, Gigabit Ethernet and power over a single cable
• Supports 8K 30Hz or 4K 120Hz for a single display and 4K for two displays (MST)*
• Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x USB Type A, 1 x Type C) and 3port 5Gbps Hub
• USB Power Delivery capable up to 100W
• 2 year warranty

*Please note that Apple computers do not support MST.

TECHNICAL INFORMATION:

Specifications

• Interface: USB Type C to 5x USB Type A / 2x USB Type C / 1x RJ45 / 2x HDMI
• Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1, Gigabit LAN, HDMI 2.1
• Supported Bandwidth: 10 Gbps, 10/100/1000 Mbps
• Maximum Input Resolution: 8K 7680x4320 30Hz
• Maximum Output Resolution:
• Single Display: 7680x4320 30Hz, 3840x2160 120Hz
• Dual Displays: 3840x2160 60Hz & 3840x2160 30Hz
• Chipset: RTS5459, RTS5420, RM1211, VMM6210, PS8402A, AX88179A
• Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 2.3
• Supported Audio: 7.1 8 Channels, sampling rate 192kHz/24bit, LPCM, DTS, AC3, HBR
• Separate Audio Ports: -
• Special Features: DisplayPort Alternate Mode, MST for Windows, Wake on LAN (WOL) support; supports MAC Address pass through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

• Inputs: 1x USB Type C (Male)
• Outputs: 5x USB Type A (Female), 1x USB Type C (Female), 1x RJ45 (Female), 2x HDMI (Female)
• Power: 1 x USB Type C (Female) PD port

Physical Properties

• Dimensions WxDxH: 165x49x21.7mm (6.5x1.93x0.85in)
• (Fixed) cable length: 220mm (8.66in)
• Housing Material: Aluminium, plastic
• Net Weight: 0.16kg (0.35lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)
• Humidity: 10% - 85% RH (non-condensing)
• Power Requirements: 15W
• Colour: Dark Grey

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 185x80x25mm (7.28x3.15x0.98in)
• Gross Weight: 0.2kg (0.44lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

• USB-C Laptop Mini Docking Station
• Lindy manual

DOWNLOADS:

• DoC for 43373 (pdf)
• Manual for 43373 (pdf)
