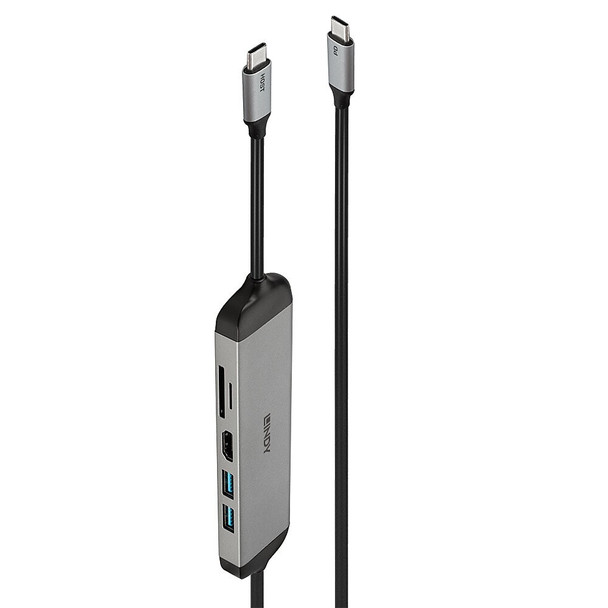

Lindy DST-Micro 140, USB-C Laptop Micro Docking Station

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The DST-Micro 140 is a compact and versatile micro docking station designed to be adaptable for use in different environments. Part of Lindy’s expert docking station range, this product is ideal for those who travel with their tech and often find themselves in environments not built for laptop or desktop use. Housed in a robust aluminium body, this micro docking station is built to provide adaptability on the go.

• Adds 2 USB Type A ports (5Gbps), an HDMI port and an SD card reader to your notebook
• Integrated 1.4m USB Type C cable for convenient and flexible laptop charging
• Supports max. HDMI resolution up to Ultra HD 4K 30Hz
• USB Power Delivery 3.0 capable up to 60W
• 2 year warranty

Key Features

The DST-Micro 140 unlocks connectivity for your device with SuperSpeed USB, microSD and SD Card Slots and a 4k capable HDMI port. Pair this functionality with pass-through charging of up to 60W and the 1.4m power delivery cable and you are left with an incredibly adaptable and capable docking station.

Plug-and-Play

This micro docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Package Contents:

• USB-C Laptop Micro Docking Station
• Lindy Manual

TECHNICAL INFORMATION:

Specifications:

• Interface: USB Type C to 2x USB Type A / 1x HDMI / 1x microSD / 1x SD
• Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI
• Supported Bandwidth: 5 Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum Output Resolution: 3840x2160@30Hz
• Chipset: AG9311, VL815, AU84612
• Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support. Windows, MacOS, Linux, Android, Chrome OS
• Power Delivery: PD 3.0 up to 60W (20V 3A)
• HDCP Support: Yes
• Special Features: DisplayPort Alternate Mode, integrated 1.4m USB Type C PD cable

Connectors:

• Inputs: 1 x USB Type C (Male)
• Outputs: 2x USB Type A (Female), 1x HDMI (Female), 1x microSD slot, 1x SD slot

Physical Properties:

• Dimensions WxDxH: 148x36x13mm (5.83x1.42x0.51in)
• Housing Material: Aluminium & Plastic
• Net Weight: 0.1kg (0.22lb)
• Operating Temperature: 5°C - 30°C (41°F - 86°F)
• Storage Temperature: 0°C - 40°C (32°F - 104°F)
• Humidity: 25 - 60% RH (non-condensing)
• Power Requirements: Bus-powered
• Colour: Grey & Black

Miscellaneous:

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.1kg (0.22lb)
• Warranty (Years): 2
• Certificated: CE, FCC, REACH & RoHS, CP65

DOWNLOADS:

• Datasheet for 43326 USB 3.2 Type C Laptop Micro Dock (pdf)
