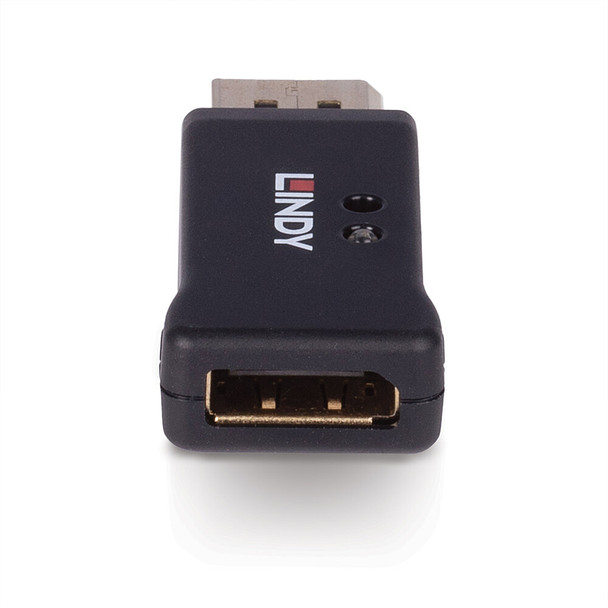

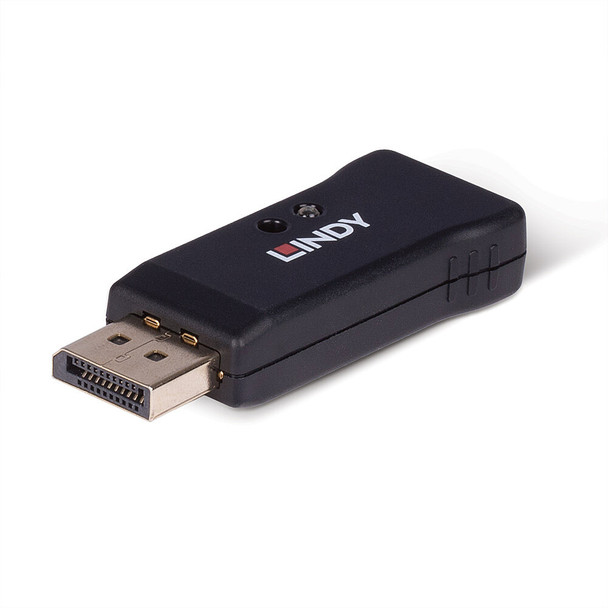

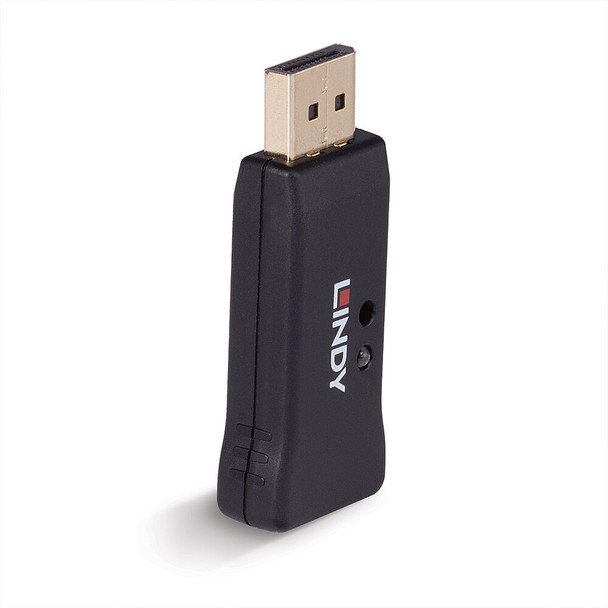

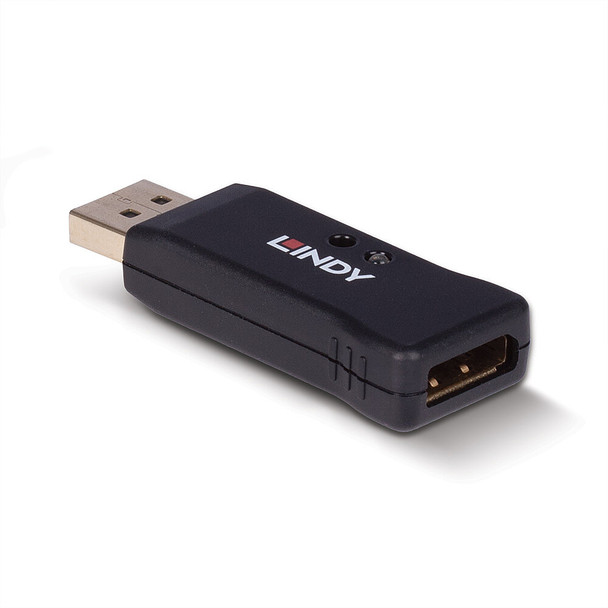

Lindy DisplayPort 1.4 EDID Emulator Adapter

The Lindy DisplayPort 1.4 EDID Emulator Adapter is designed to maintain a continuous signal, eliminating common EDID-related issues when using AV equipment such as KVM switches, extenders, splitters, and switchers. Its compact, minimalistic design makes it an ideal connectivity solution for both AV and IT installers, ensuring seamless performance with legacy and modern DisplayPort devices.

Key Features

• Continuously emulates DisplayPort EDID information for uninterrupted signal
• Supports resolutions up to 7680x4320@30Hz or 3840x2160@144Hz HDR (via cloning)
• Headless connection – no monitor required
• Uses cloned EDID data or pre-stored common resolution/timing combinations
• Quick EDID cloning process – under 10 seconds
• HDCP 2.2 and DPCP 2.0 pass-through support
• 2-year warranty

Applications

• Ensuring stable video output for Ultra HD 4K and 8K monitors
• Preventing signal loss in KVM, splitter, and extender setups
• Maintaining resolution settings without requiring a connected display
• Ideal for AV professionals and IT technicians working with mixed-generation DisplayPort equipment

Technical Specifications

• AV Interface: DisplayPort 1.4
• Supported Bandwidth: 32.4Gbps
• Maximum Resolution: 7680x4320@30Hz (4:4:4, 8-bit)
• Supported EDID Resolutions: 800x600 up to 3840x2160@60Hz (default)
• Audio EDID: LPCM 2-Channel, 16/20/24-bit at 32/44.1/48 kHz
• HDCP Support: 2.2
• Power: Via DisplayPort source
• Connectors: DisplayPort Male input / DisplayPort Female output
• Dimensions: 25.17 x 51.59 x 12.05mm
• Net Weight: 0.012kg
• Colour: Black

Package Contents

• Lindy DisplayPort 1.4 EDID Emulator
• User Manual

Product Compliance

CE, UKCA, FCC, RoHS & REACH certified.

Downloads

• User Manual for DisplayPort 1.4 EDID Emulator
• Data Sheet for 32118 DisplayPort 1.4 EDID Emulator
