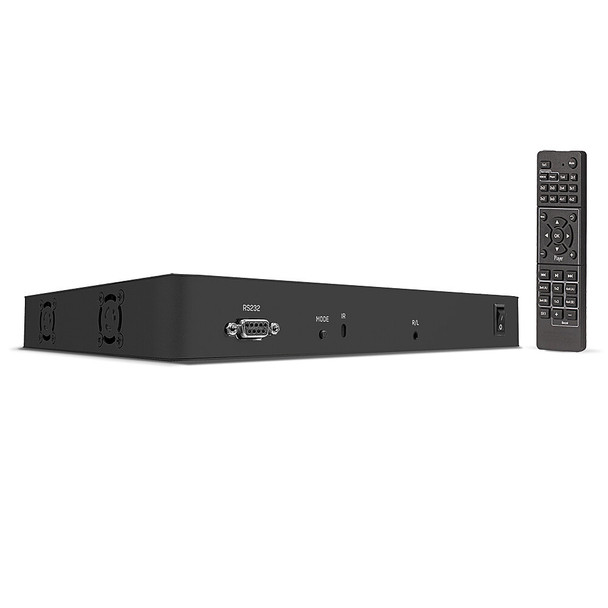

Lindy 9 Port HDMI Video Wall Scaler

The 9 Port HDMI Video Wall Scaler is a versatile solution for creating stunning multi-screen video wall displays. Designed for retail, hospitality, corporate and entertainment environments, this unit allows a single 4K HDMI source to be scaled across up to 9 displays in full HD 1080p. With multiple preset layouts and simple operation, it is an ideal choice for impactful digital signage and large-format video installations.

Key Features

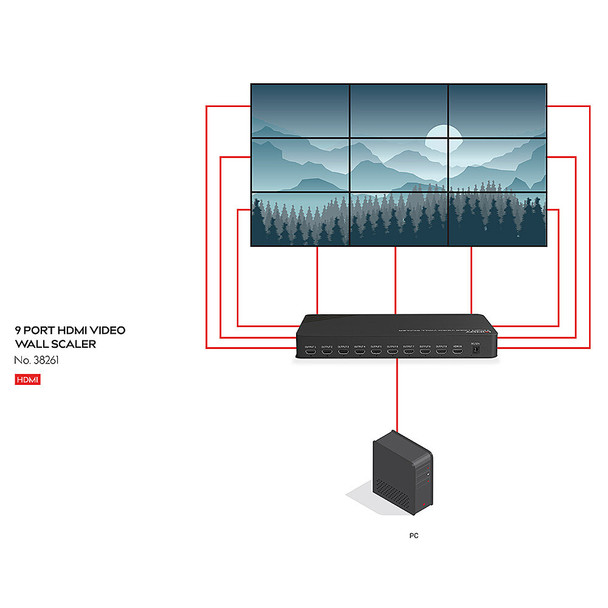

• Scale a single HDMI input across up to 9 displays
• Supports resolutions up to 3840x2160@30Hz input and 1920x1080@60Hz output
• Create 13 different video wall layouts without additional control software
• HDMI audio extraction via 3.5mm stereo output
• Daisy chain two units for larger layouts up to 3x4 or 4x4
• HDCP 1.4 compliant
• 2-year warranty

Package Contents

• 9 Port HDMI Video Wall Scaler
• Multi-country power supply (US, UK, EU & AUS)
• Remote control
• User manual

Applications

This HDMI Video Wall Scaler is perfect for:

• Retail and showroom displays
• Advertising and promotional signage
• Hospitality venues such as bars, clubs, and restaurants
• Corporate lobbies and reception areas
• Exhibitions and event displays

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 10.2Gbps
• Max Input Resolution: 3840x2160@30Hz 4:4:4 8bit
• Max Output Resolution: 1920x1080@60Hz 4:4:4 8bit
• Audio Support: HDMI pass-through (Output 1), 3.5mm stereo
• HDCP Support: 1.4

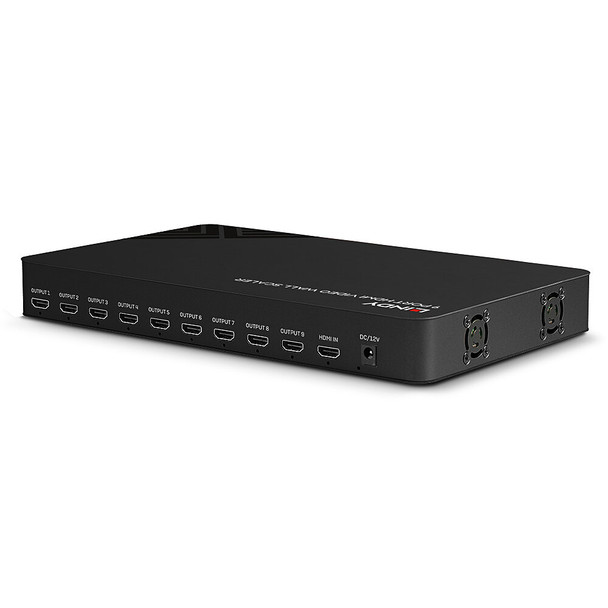

• Connectors: 1 x HDMI input, 9 x HDMI outputs, 5.5/2.1mm DC power socket
• Dimensions: 305 x 185 x 35mm
• Weight: 1.747kg
• Operating Temperature: -10°C to 45°C
• Power Requirements: 12VDC 3A
• Colour: Black
• Certifications: CE, UKCA, FCC, REACH, RoHS, California 65

Download

• User Manual for 3x3 HDMI Video Wall Scaler
• Data Sheet for 38261 3x3 HDMI Video Wall Scaler

Why Choose This Video Wall Scaler?

This professional-grade scaler is designed to make video wall creation simple, efficient and impactful. With no need for control software, it is a plug-and-play solution that delivers high-quality visuals with minimal setup. Whether you’re building a small 3x3 wall or expanding to a 4x4 configuration, this unit ensures seamless performance and reliability.
