Lindy 70m Cat.6 DVI-D Single Link Extender

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

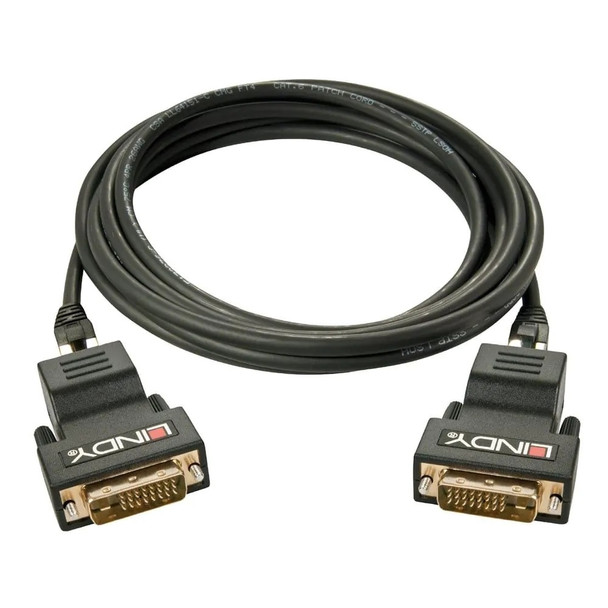

With this Extender you can use up to 70m of high quality inexpensive CAT5e/6 cable to connect a DVI source to a DVI display device. The slim RJ45 connectors and CAT6 cable (not included) allow greater flexibility not possible with larger DVI connectors and cables. Normal operation will not require external power; however the Transmitter unit allows external power to be attached in cases where the graphics card does not provide sufficient power.

The Extender supports the following resolutions/distance combinations:

Extends DVI-D video signals up to 70m using low cost CAT5e/6 Cable (not included)
Supports resolutions from 800x600 up to 1920x1200 including 1080p

• 800x600 up to 70m
• 1024x768 up to 65m
• 1280x1024 to 1920x1200 up to 50m
• HDCP not supported
• 2 year warranty

Additional Requirements:

• RJ-45 patch cable: 1 x CAT5e/6 UTP Cable

Package Contents

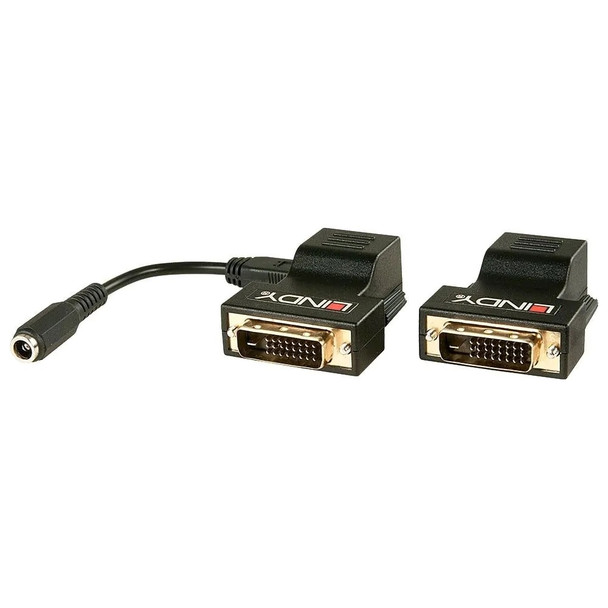

• Transmitter and Receiver Units
• LINDY Manaul

TECHNICAL INFORMATION:

Specifications

• AV Interface: DVI-D
• Interface Standard: DVI-D 1.1 (Single Link)
• Supported Bandwidth: 4.95Gbps
• Maximum Distance:
• 70m (229.66ft) - 800x600@60Hz
• 50m (164.04ft) - 1920x1200@60Hz
• Maximum Resolution: 1920x1200@60Hz
• Transmission Medium: 1 x Cat.5e or Cat.6

Connectors

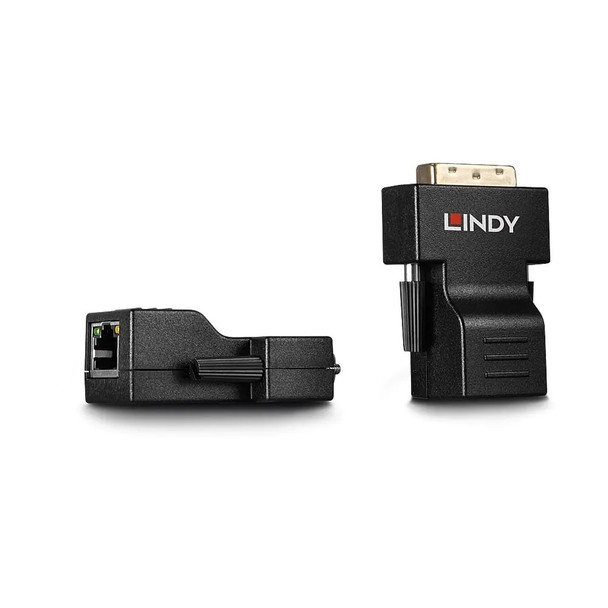

• Transmitter Input: DVI-D (Male)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Ouput: DVI-D (Male)
• Bidirectonal Ports: -
• Power: USB Micro-B socket

Physical Properties

• Dimensions WxDxH: 55x40x22mm (2.17x1.57x0.87in) per unit
• Housing Material: Plastic
• Net Weight: 0.03kg (0.07lb) per unit
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 0 - 95% RH (non-condesing)
• Power Requirements: 5VDC
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 110x165x42mm (4.33x6.5x1.65in)
• Gross Weight: 0.14kg (0.31lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH

DOWNLOADS:

• User Manual for 70m CAT6 DVI Extender
