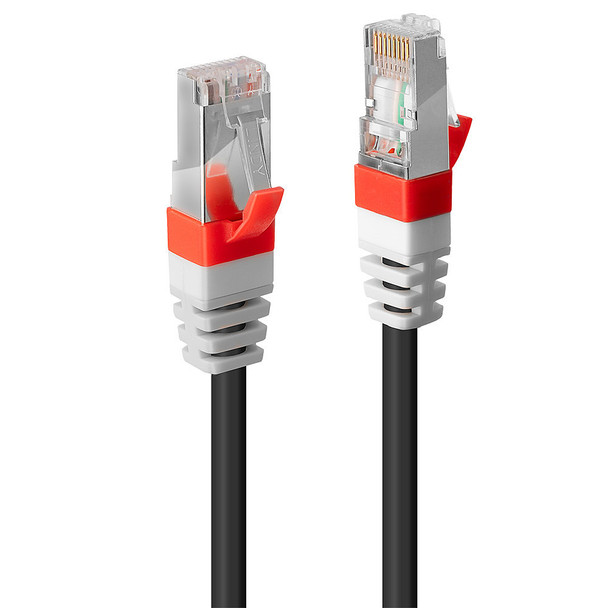

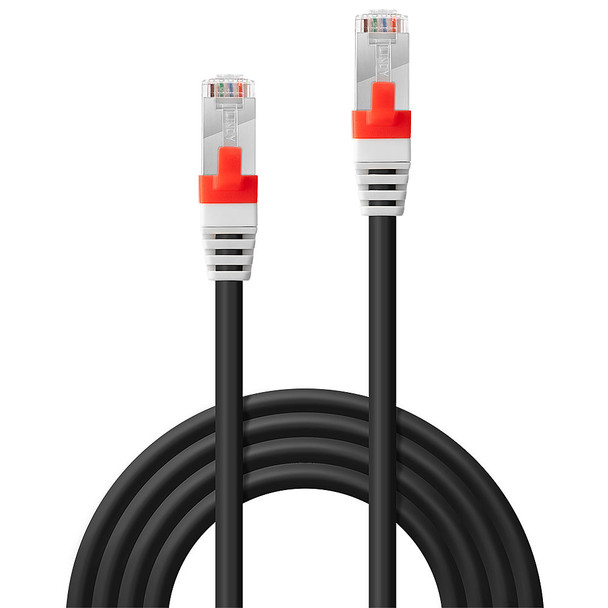

Lindy Cat.6A S/FTP Network Cable – High-Speed 10G Ethernet with LSZH Safety Jacket

The Cat.6A S/FTP Network Cable is engineered for exceptional network performance, supporting bandwidths of up to 500MHz and meeting Ethernet standards up to 10GBase-T. With superior shielding and robust construction, it ensures stable, interference-free connections for demanding networking environments.

Its gold-plated contacts provide long-lasting, corrosion-resistant connectivity, while the snagless strain relief design protects the connector latch during repeated installations. The LSZH (Low Smoke Zero Halogen) jacket makes it ideal for public spaces, offering low smoke emissions and eliminating toxic halogens for improved safety.

Key Features

• Cat.6A S/FTP (shielded braid + foil) cable for superior interference protection
• Supports up to 500MHz bandwidth – ideal for 10GBase-T Ethernet
• Manufactured and tested to ISO/IEC 11801 specifications
• Gold-plated contacts for excellent conductivity and reduced signal loss
• Snagless connector design for latch protection
• LSZH jacket for safer installations in public spaces
• Individually tested with included test report
• 10-year warranty for long-term reliability

Technical Specifications

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass with gold plating
• Dimensions: 11.6 x 21.5 x 8.3mm (0.46 x 0.85 x 0.33in)
• Cable Type: Cat.6A S/FTP PIMF
• Jacket Material: LSZH
• Jacket Diameter: 6.2mm (0.24in)
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium / Polyester
• Supported Bandwidth: 500MHz
• Nominal Attenuation: 67.86dB/100m @ 500MHz
• Minimum Bend Radius: 18.6mm (0.74in)
• Operating Temperature: -25°C to 60°C
• Storage Temperature: -25°C to 60°C
• Certifications: RoHS, REACH, UL

Applications

• High-speed networking in data centres and enterprise environments
• Server-to-switch and switch-to-switch connections
• Public and commercial installations requiring LSZH compliance
• Environments with high EMI requiring stable, shielded connections

Why Choose This Cat.6A Cable?

Built to handle the demands of modern high-speed networks, this Cat.6A S/FTP cable combines industry-standard compliance, premium shielding, and long-term durability. Whether for data centres, offices, or public facilities, it ensures dependable 10G Ethernet performance backed by a 10-year warranty.
