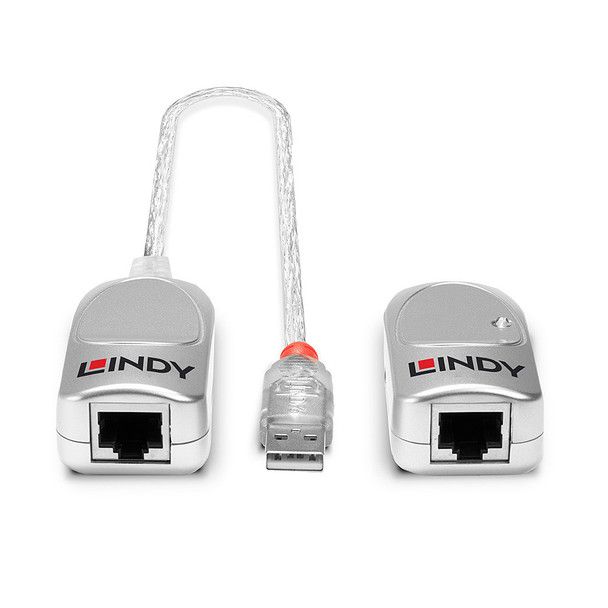

Lindy Cat.6 USB Extender

The Lindy Cat.6 USB Extender allows you to extend the distance between your USB device and host computer up to 50 meters, using low-cost Cat.5/5e/6 network cable. This makes it ideal for situations where long-distance access to files or video conferencing with USB devices like webcams and storage devices is required. It’s a reliable and cost-effective solution for extending USB connectivity in a variety of professional and home environments.

Key Features

• Extends a single USB port up to 50 meters using Cat.5/5e/6 or higher network cable (not included)
• Supports data transfer rates of up to 12Mbps for reliable USB communication
• Plug and Play installation with no additional software required, making it OS independent
• Powered by the USB Bus, no external power supply needed unless using high-current USB devices
• Compact design with easy installation and flexibility in use
• 2-year warranty for long-term reliability

Applications

This USB extender is ideal for:

• Video conferencing setups where webcams need to be positioned at longer distances from the computer
• Remote access to USB storage devices or peripherals in offices or at home
• Long-distance USB connections in data centers, retail setups, or industrial environments
• Extending USB connections in conference rooms or classrooms

Package Contents

• Transmitter Unit
• Receiver Unit
• Lindy Manual

Technical Specifications

• USB Standard: USB 1.1
• Supported Bandwidth: 12Mbps
• Maximum Distance: 50m (164.04ft) using Cat.5/5e/6 network cable
• Transmission Medium: Cat.5/5e/6 or higher network cable (not included)
• Chipset: LAN0101
• Connectors: Transmitter: USB Type A (Male), RJ45 (Female); Receiver: RJ45 (Female), USB Type A (Female)
• Power: 3.5/1.35mm DC socket (optional for high-current devices)
• Dimensions: Transmitter: 30x63x20mm (1.18x2.48x0.79in), Receiver: 30x63x20mm (1.18x2.48x0.79in)
• Housing Material: Plastic
• Net Weight: 0.06kg (0.13lb)
• Operating Temperature: -0°C to 70°C (32°F to 158°F)
• Storage Temperature: -20°C to 80°C (-4°F to 176°F)
• Humidity: 0% to 90% RH (non-condensing)
• Colour: Grey
• Certifications: CE, FCC, RoHS, REACH

Download

• Datasheet for 42805 50m CAT5/6 USB Extender
• User Manual for 50m CAT5/6 USB Extender

Why Choose the Lindy Cat.6 USB Extender?

The Lindy Cat.6 USB Extender provides an easy and cost-effective way to extend USB connectivity up to 50 meters, making it perfect for long-distance access to USB devices. Whether it's for a video conferencing setup, remote access to storage, or extending USB peripherals in various environments, this extender ensures a stable, high-performance connection. Its plug-and-play functionality makes it ideal for both novice and experienced users alike.
