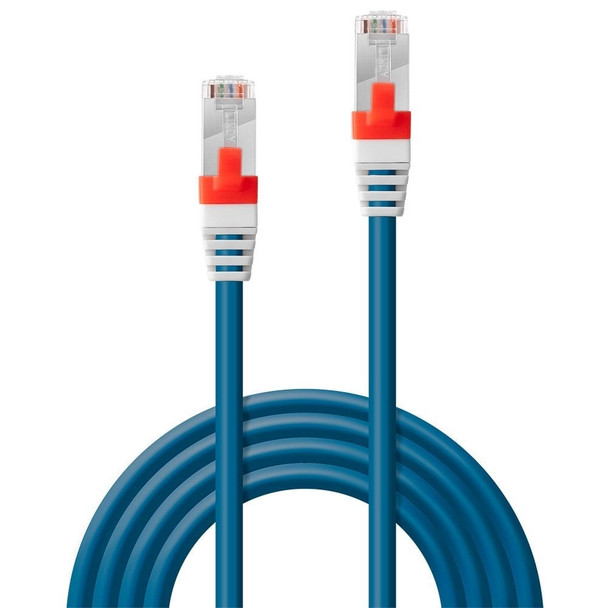

Lindy 45379 10M Cat.6A S/Ftp Lszh Gigabit Network Cable, Blue

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

• Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Tested)
• Cat.6A S/FTP PIMF, LSZH
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss
• 10 year warranty

TECHNICAL INFORMATION:

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Type: Cat.6A
• Jacket Diameter: 6.2mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium / Polyester

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 67.86dB/100m @ 500MHz
• Minimum Bend Radius: 18.6mm (0.74in)
• Operating Temperature: -25°C - 60°C (-43F - 140°F)
• Storage Temperature: -25°C - 60°C (-43F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
