Lindy 42674 100m CAT6 USB 2.0 Extender Black

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

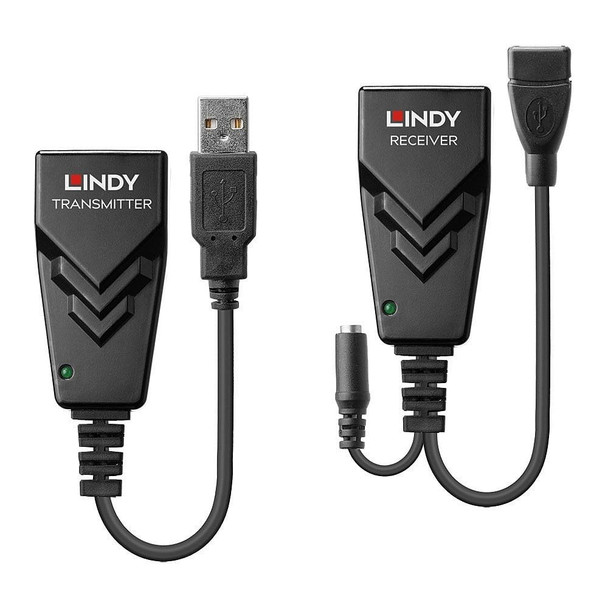

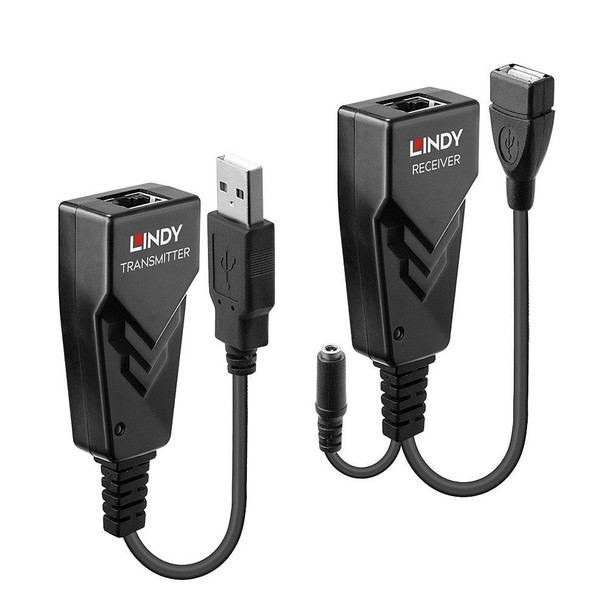

The Lindy 100m USB 2.0 CAT6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5/5e/6 network cable (not included) is then used to bridge the connection between the two units.

Connecting a 2 port USB hub to the receiver also provides additional access to two USB devices. For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

• Extends a single USB port up to 100m using Cat.5/5e/6 network cable (not included)
• Plug & Play installation, OS independent
• Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards
• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
• 2 year warranty

Package Contents

• Transmitter unit
• Receiver unit
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

TECHNICAL INFORMATION:

Specifications

• USB Standard: USB2.0
• Supported Bandwidth: 480Mbps
• Maximum Distance: 100m (328.08ft)
• Transmission Medium: Cat. 5/5e/6 or higher UTP network cable
• Chipset: CH317Q, CH536G
• Special Features: -

Connectors

• Transmitter Input: USB Type A (Male)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: USB Type A (Female)
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions WxDxH: 69x36x22mm (2.72x1.42x0.87in)
• Housing Material: Plastic
• Net Weight: 0.05kg (0.11lb)
• Operating Temperature: 0° - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: 5V DC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 200x200x48mm (7.87x7.87x1.89in)
• Gross Weight: 0.25kg (0.55lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65
