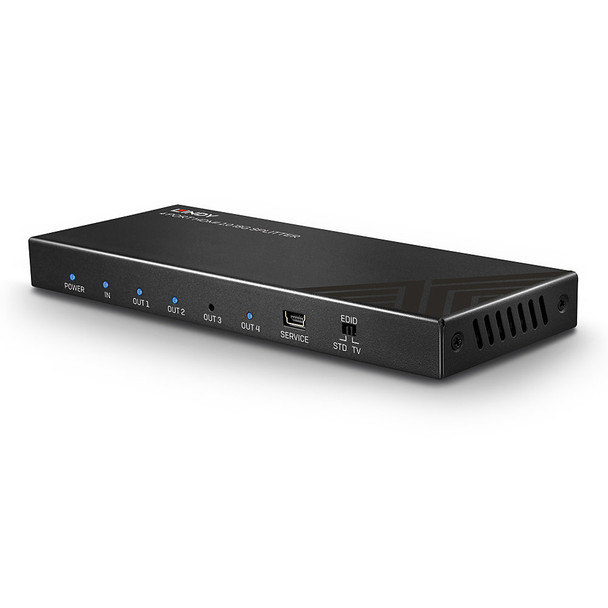

Lindy 4 Port HDMI 18G Splitter

The Lindy 4 Port HDMI 18G Splitter is a compact, high-quality solution for distributing HDMI 2.0 18G signals from a single source device to up to four displays simultaneously. With support for Ultra HD resolutions up to 3840x2160@60Hz 4:4:4 8-bit and HDR, this splitter ensures crisp, vibrant images with enhanced contrast and lifelike colour reproduction.

Perfect for retail digital signage, medical facilities, corporate environments, and sports bars, this splitter delivers reliable HDMI distribution while maintaining full signal integrity. Its cascading support of up to three additional splitter levels makes it suitable for large-scale, multi-display installations such as airports, transport hubs, and financial trading floors.

With HDCP 2.2 support, compatibility is assured with the latest 4K content from Blu-Ray players, set-top boxes, and HDR streaming devices. The integrated EDID management system ensures hassle-free setup and reliable communication with connected displays. Housed in a compact, durable metal enclosure, this splitter is designed for professional AV environments where discreet installation is essential.

Key Features

• Split a single HDMI 2.0 source across 4 HDMI displays simultaneously
• Supports resolutions up to 3840x2160@60Hz 4:4:4 8-bit with HDR
• HDCP 2.2 support ensures playback of protected 4K content
• EDID management switch for maximum display compatibility
• Cascade support for multi-screen distribution across larger networks
• Durable, compact metal housing for professional installations
• Backed by a 2-year warranty

Applications

• Retail digital signage and advertising networks
• Sports bars and hospitality venues showing live broadcasts
• Medical facilities requiring content on multiple displays
• Corporate AV setups and training rooms
• Airports, transport hubs, and stock exchanges with multi-screen broadcasting

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Audio pass-through
• Special Features: EDID emulation, cascade up to 3 levels

Connectors

• Input: 1 x HDMI (Female)
• Outputs: 4 x HDMI (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (W×D×H): 163 × 63 × 16mm (6.42 × 2.48 × 0.63in)
• Housing Material: Metal
• Net Weight: 0.373kg (0.82lb)
• Operating Temperature: 0°C – 40°C
• Colour: Black

Package Contents

• 4 Port HDMI Splitter
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Product Compliance

Certified CE, FCC, RoHS, REACH & California Proposition 65.

Download

• User Manual for 2 & 4 Port HDMI 2.0 18G Splitter
• Datasheet for 38236 4 Port HDMI 18G Splitter
