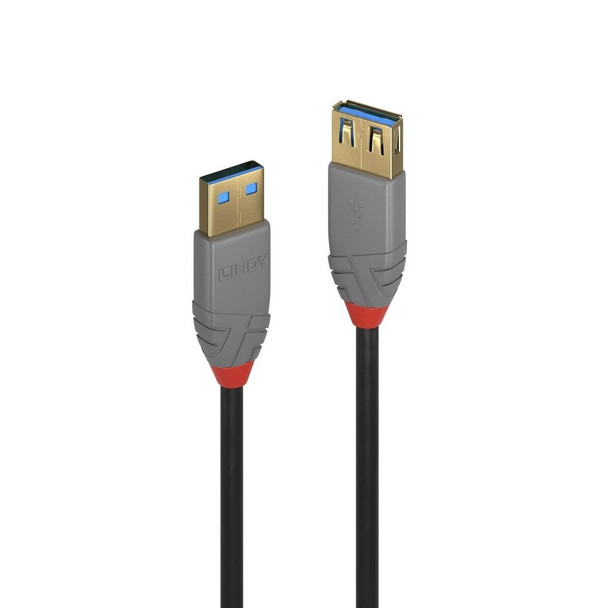

Lindy 36761 1M Usb 3.0 Type A To A Extension Cable, Anthra Line

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 3.0 Type A to A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

The SuperSpeed protocol is supported with up to 5Gbps bandwidth to allow the rapid transfer of large data volumes.

Anthra Line USB 3.0 Type A to A Extension cables are available in lengths from 0.5m to 3m.

• Professional choice USB 3.0 Type A to A Extension cable for commercial and high performance AV and IT installations
• Supports SuperSpeed data transfer speeds up to 5Gbps
• Robust PVC housing, gold plated connectors and contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• SuperSpeed, USB 3.0, 5Gbps; 10 year warranty

TECHNICAL INFORMATION:

Connectors

• Connector A: USB 3.0 Type A Male
• Connector B: USB 3.0 Type A Female
• Housing Material: PVC
• Connector Plating: Gold Plated
• Pin Construction: Copper
• Pin Plating: Gold Plated
• Dimensions, USB A Male (approx.) WxDxH: 12.0x4.5x20mm (0.47x0.18x0.79in)
• Dimensions, USB A Female (approx.) WxDxH: 14.7x7.0x18.6mm (0.58x0.28x0.73in)

Cable Construction

• Standard: USB 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/28/30AWG
• Shielding: Aluminium Braid 85%

Specifications

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
