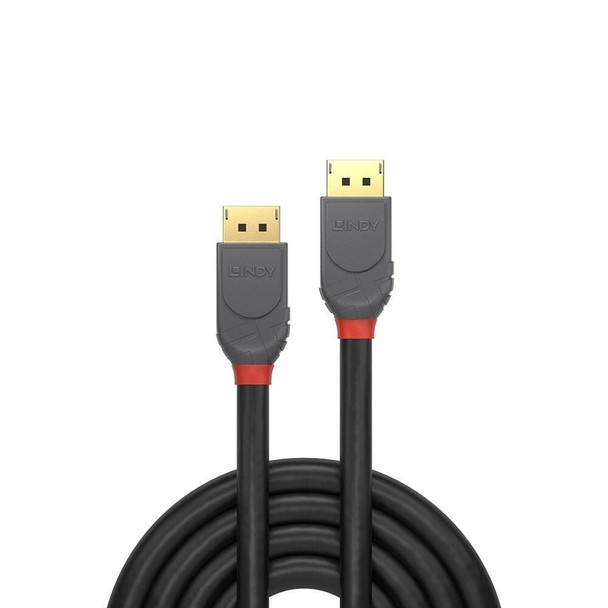

Lindy 36481 1M Displayport 1.4 Cable, Anthra Line

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 27AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@160Hz 4:4:4 8bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m and 15m.

• Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
• Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@160Hz 4:4:4 8bit
• Robust ABS housing 24K gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper 27AWG conductors
• DisplayPort 1.4, 32.4Gbps; 10 year warranty

TECHNICAL INFORMATION:

Connectors

• Connector A: DisplayPort Male
• Connector B: DisplayPort Male
• Housing Material: ABS
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 19.7x38.9x12mm (0.78x1.53x0.47in)

Cable Construction

• Standard: DisplayPort 1.4
• Colour: Black
• Type: Round
• Jacket Diameter: 7.3mm (0.29in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 27AWG
• Shielding: Copper Braid 65%

Specifications

• Supported Bandwidth: 32.4Gbit/s
• Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit 4096x2160@120Hz 4:4:4 8bit
• Nominal Attenuation: 100MHz-450MHz <5.1dB, 450MHz-8100MHz <33.28dB
• Minimum Bend Radius: 28.4mm (1.12in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)
• ATC Approved

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL

DOWNLOAD:

• Datasheet for 36481 DisplayPort 1.4 Cable, Anthra Line (pdf) [Size: 172.97K]
