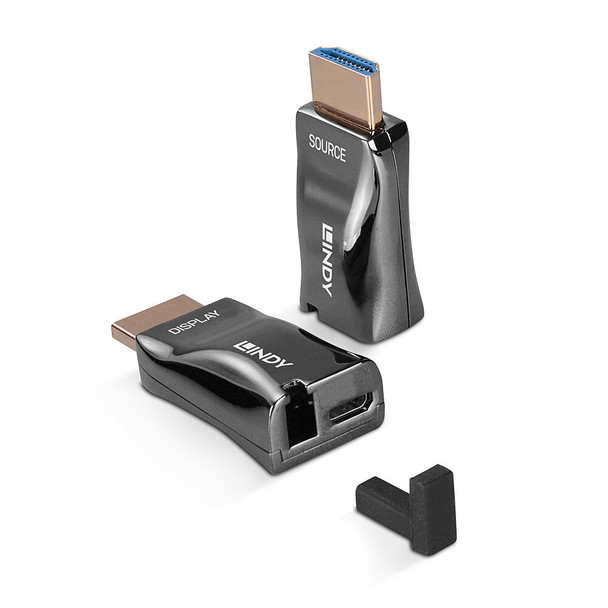

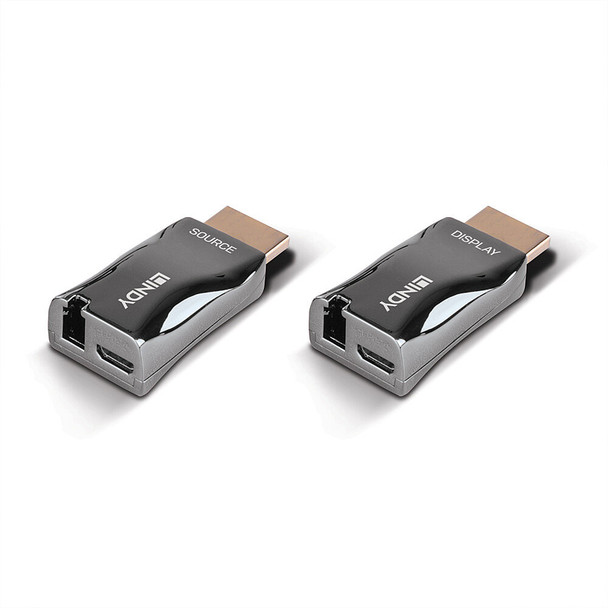

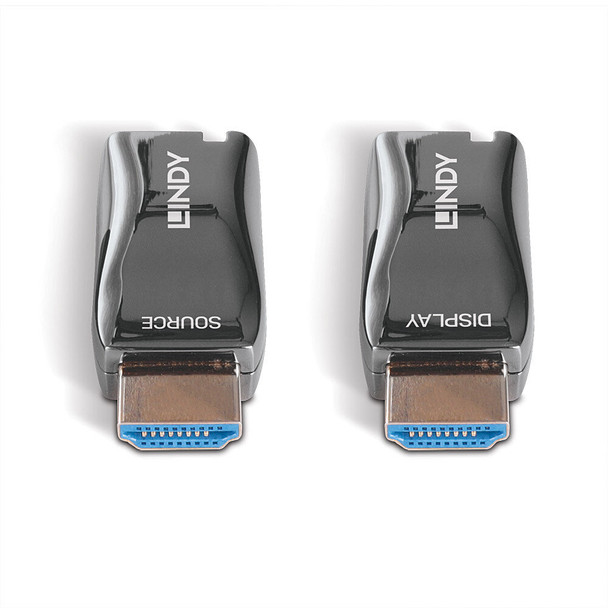

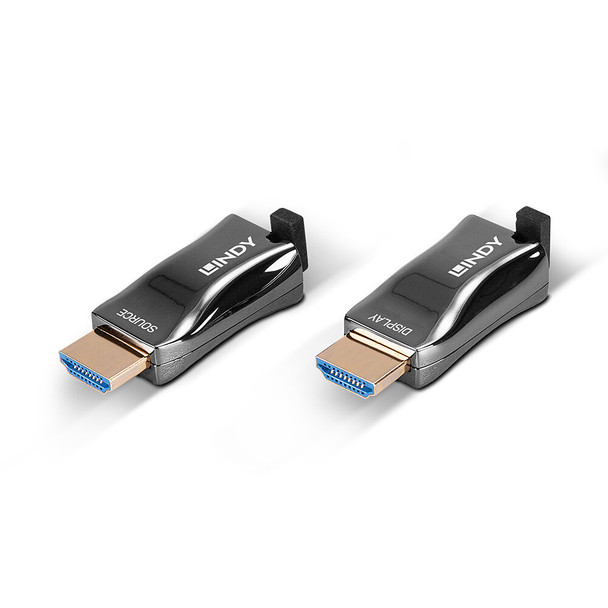

Lindy Fibre Optic HDMI 4K60 Dongle Extender

The Lindy Fibre Optic HDMI® 4K60 Dongle Extender is a high-performance solution designed to extend UHD HDMI® signals over distances of up to 300 meters using a single simplex LC OM3 or OM4 multi-mode fibre optic cable. This extender provides a reliable, lossless transmission of 4K content, ideal for a variety of professional and commercial applications, including home cinemas, digital signage, and environments susceptible to high interference such as medical or manufacturing facilities.

Key Features

• Extends HDMI® signals up to 300m using a single simplex LC OM3 or OM4 fibre optic cable
• Supports UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit
• HDR (High Dynamic Range) support for enhanced contrast, brightness, and wider colour gamut
• Lossless audio formats including Dolby Atmos and DTS-X for immersive sound
• HDCP 2.2 compatibility for protected 4K content
• Compact, low-power, and easy to install with HDMI® extension cables
• Supports ARC (Audio Return Channel) and CEC (Consumer Electronics Control)
• 2-year warranty for reliability and peace of mind

Applications

This fibre optic HDMI® extender is perfect for:

• Home cinema installations requiring high-quality video and audio transmission over long distances
• Retail environments where digital signage requires extended HDMI® cable runs
• Professional setups such as conferences or trade shows with long-distance HDMI® needs
• Medical, aerospace, and manufacturing facilities where high levels of interference exist
• Environments where EMI (electromagnetic interference) is a concern

Package Contents

• Transmitter Unit
• Receiver Unit
• 2 x HDMI® Male/Female Cables (0.15m)
• 2 x USB A/Micro-B Cables (1m)
• 2 x LC Port Dust Covers
• Lindy Manual

Technical Specifications

• AV Interface: HDMI®
• Supported Bandwidth: 18Gbps (HDMI 2.0)
• Maximum Distance: 300m (984.24ft) using LC OM3 or OM4 multi-mode fibre
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass-through: Yes
• Audio Support: Lossless audio pass-through (Dolby Atmos, DTS-X)
• Transmission Medium: 1 x Simplex LC (50/125µm)
• Laser Class (Fibre): Class 1
• Wavelength (Fibre): 850nm
• Power Requirements: Transmitter: 0.9W (max), Receiver: 0.2W (max)
• Power Input: USB Micro-B
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20-90% RH (non-condensing)
• Dimensions (Transmitter & Receiver): 45x20x12mm (1.79x0.81x0.49in) per unit
• Housing Material: Aluminium
• Net Weight: 0.7kg (1.45lb)
• Colour: Dark Grey
• Certifications: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Download

• User Manual for 300m Fibre Optic HDMI 4K60 Extender

Why Choose the Lindy Fibre Optic HDMI® 4K60 Dongle Extender?

With the ability to extend UHD HDMI® signals over long distances using fibre optic cables, the Lindy Fibre Optic HDMI® 4K60 Dongle Extender offers a reliable, high-quality solution for video and audio transmission. Whether you're building a professional installation or creating an immersive home cinema experience, this extender ensures visually lossless UHD content with HDR and immersive audio formats, making it an ideal choice for any long-distance HDMI® transmission requirement.
