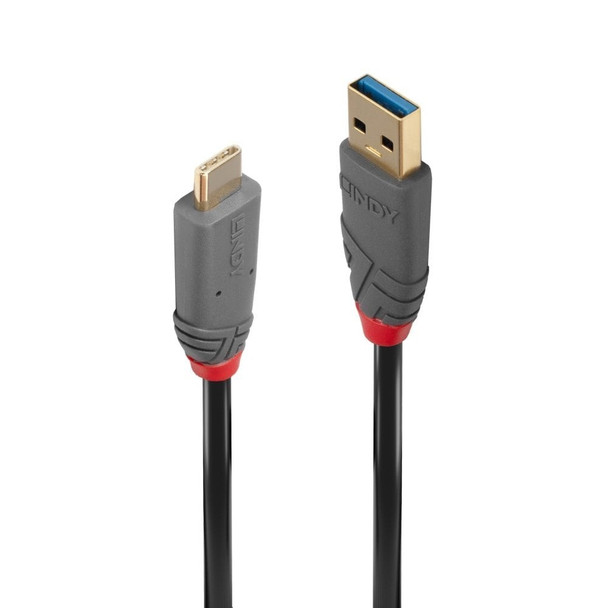

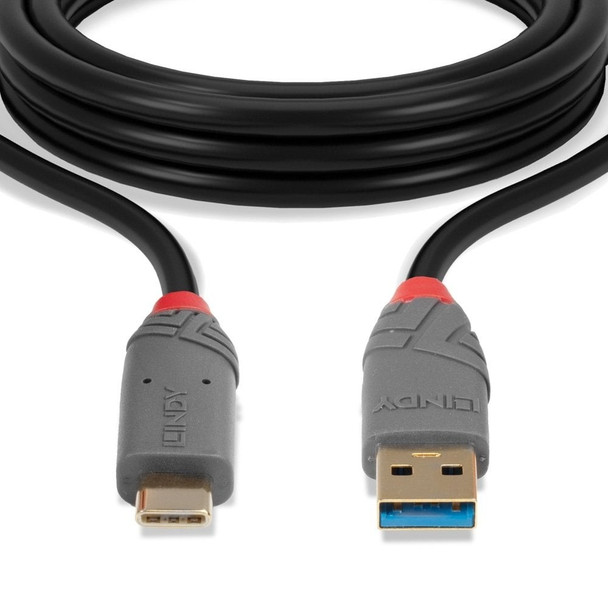

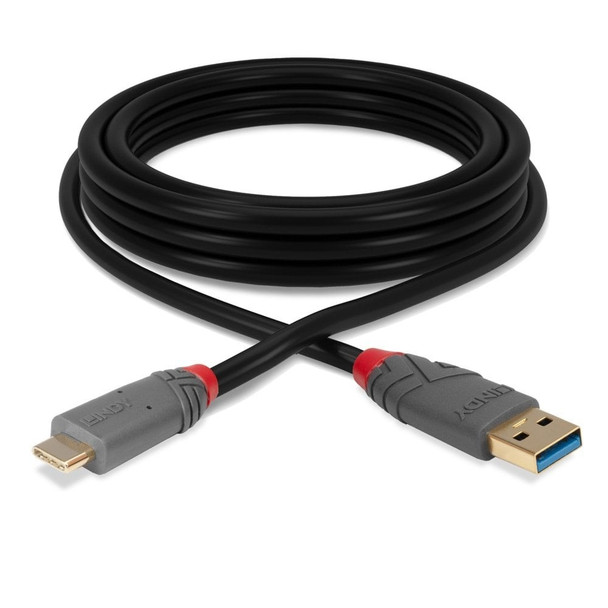

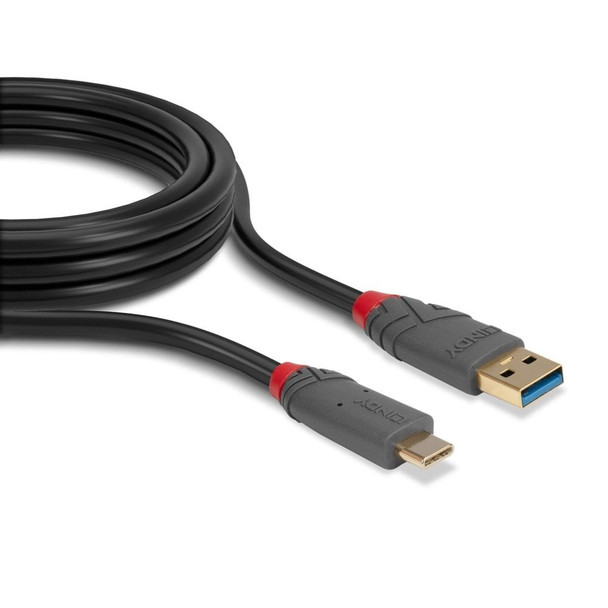

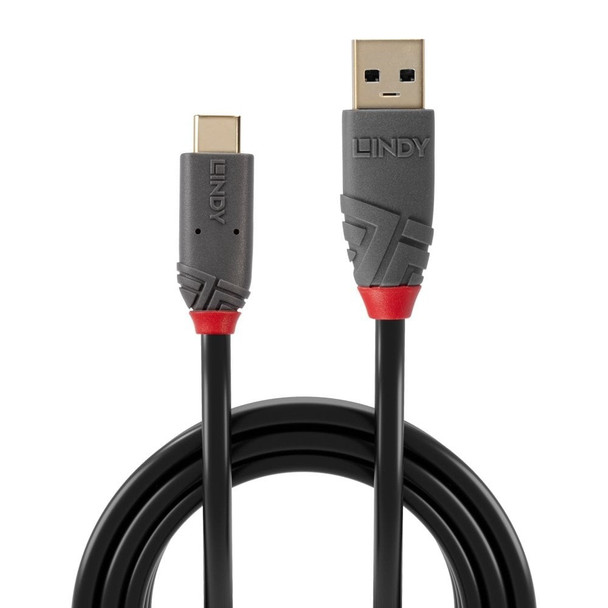

Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, 5A, PD, Anthra Line

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.

• Professional choice USB 3.2 Gen 2 Type A to C, 5A (100W), cable for commercial and high performance AV and IT installations
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
• Robust PVC housing, 24K gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 2 year warranty

Information about USB 3.0, 3.1 & 3.2

• USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
• USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
• USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
• USB 3.2 Gen 2x2 supports data transfer rates up to 20 Gbps.

TECHNICAL INFORMATION:

Connectors:

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male
• Housing Material: PVC
• Connector Plating: 24K Gold plated
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold plated
• Dimensions (approx.) WxDxH:
  A: 15.5x35x7.8mm (0.61x1.38x0.31in)
  C: 12.7x30.8x7.3mm (0.5x1.21x0.29in)

Cable Construction:

• Standard: USB 3.1
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/30/32AWG
• Shielding: Tinned Copper Braid 85%

Specifications:

• Supported Bandwidth: 10Gbps
• Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
• Minimum Band Radius: 45mm (1.77in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: RoHS, REACH & UL
