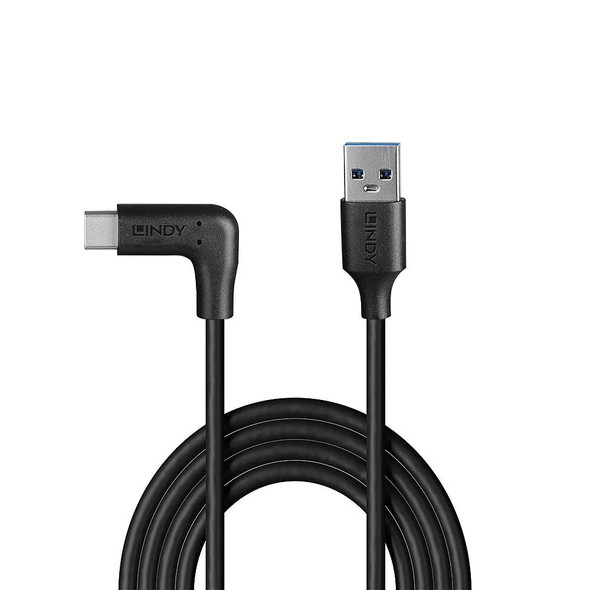

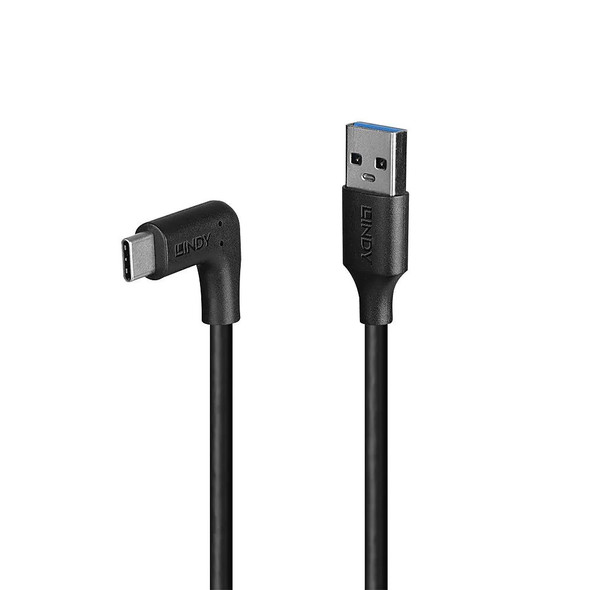

Lindy USB 3.2 Type C 90° Right Angle Cable – 10Gbps

The Lindy USB 3.2 Type C 90° Right Angle Cable is designed for high-speed, reliable data transfer while reducing strain on device ports. Ideal for use in confined spaces or with hard-to-reach USB ports, its angled plug design helps prevent cable breakage and prolongs device lifespan. Supporting data transfer speeds up to 10Gbps, this cable is perfect for both home and professional use.

Key Features

• USB 3.2 Gen 2 Type C cable with 90° right angle connector for reduced strain on ports
• Supports data transfer speeds up to 10Gbps (USB 3.1 Gen 2 / USB 3.2 Gen 2)
• Double-shielded construction with corrosion-resistant tinned copper conductors
• Nickel connectors with 24K gold-plated contacts for optimal signal integrity
• Reversible USB Type C connector for hassle-free connection in any orientation
• Available lengths: 0.5m, 1m, and 1.5m
• Backwards compatible with USB 3.0, 3.1, and earlier standards
• 10-year warranty

Technical Specifications

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male (90° right angle)
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold
• Connector Dimensions (W×D×H): Type A – 15.5 × 35 × 7.8mm; Type C – 11.0 × 25.0 × 7.3mm

• Cable Standard: USB 3.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/30/30AWG
• Shielding: Aluminium Magnesium Braid (85%)

• Supported Bandwidth: 10Gbps
• Nominal Attenuation: 0.5MHz – 15GHz < 40dB
• Minimum Bend Radius: 45mm
• Operating Temperature: −20°C to 80°C
• Storage Temperature: −25°C to 85°C
• Certifications: RoHS, REACH, UL
• Packaging: Polybag
• Warranty: 10 years

Applications

• Connecting USB Type C devices such as smartphones, tablets, and laptops to Type A hosts
• Ideal for use in confined spaces, behind monitors, or with wall-mounted equipment
• Fast data transfer for external drives, docks, and high-speed peripherals

USB 3.x Compatibility

USB 3.0, 3.1, and 3.2 devices, cables, and PCs are fully compatible with each other when using either Type A or Type C host interfaces.

• USB 3.0 / 3.1 Gen 1 / 3.2 Gen 1: Up to 5Gbps
• USB 3.1 Gen 2 / 3.2 Gen 2: Up to 10Gbps
• USB 3.2 Gen 2x2: Up to 20Gbps

Why Choose Lindy USB 3.2 Right Angle Cables?

With robust construction, high-speed performance, and port-protecting angled connectors, Lindy USB 3.2 Type C cables are a reliable solution for professional and home setups where both durability and performance matter.
