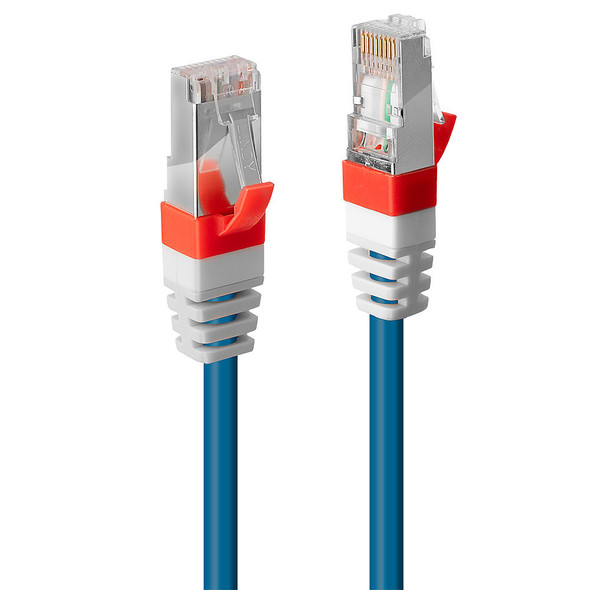

Lindy Cat.6A S/FTP Network Cable – High-Speed 10G Ethernet with LSZH Jacket

The Cat.6A S/FTP Network Cable delivers outstanding performance for demanding network environments, supporting bandwidths of up to 500MHz and Ethernet standards up to 10GBase-T. Designed with double shielding – braid as the overall shield and foil shielding for each twisted pair – this cable ensures superior signal integrity and reduced interference.

Featuring a snagless design and gold-plated contacts, it offers reliable, corrosion-free connectivity for long-term use. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions and smoke, making it suitable for public spaces and sensitive environments.

Key Features

• Cat.6A S/FTP network cable – supports up to 500MHz bandwidth
• Meets ISO/IEC 11801 specifications for 10GBase-T Ethernet
• Double shielding (S/FTP) for reduced crosstalk and interference
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Snagless strain relief design protects connector latch during use
• LSZH sheath – low smoke, halogen-free for safer installations
• Individually tested and supplied with test report
• 10-year warranty for peace of mind

Technical Specifications

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass with gold plating
• Dimensions: 11.6 x 21.5 x 8.3mm (0.46 x 0.85 x 0.33in)
• Cable Type: Cat.6A S/FTP PIMF
• Jacket Material: LSZH
• Jacket Diameter: 6.2mm (0.24in)
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium / Polyester
• Supported Bandwidth: 500MHz
• Nominal Attenuation: 67.86dB/100m @ 500MHz
• Minimum Bend Radius: 18.6mm (0.74in)
• Operating Temperature: -25°C to 60°C
• Storage Temperature: -25°C to 60°C
• Certifications: RoHS, REACH, UL

Applications

• Data centres and enterprise network infrastructure
• High-speed connections for servers, switches, and patch panels
• Safe networking in public buildings, schools, and offices
• Ideal for environments requiring low smoke and halogen-free materials

Why Choose This Cat.6A S/FTP Cable?

Built for performance and safety, this Cat.6A S/FTP network cable combines precision shielding, robust construction, and premium materials to deliver exceptional networking reliability. Backed by a 10-year warranty, it’s the perfect choice for professional and high-demand network installations.
