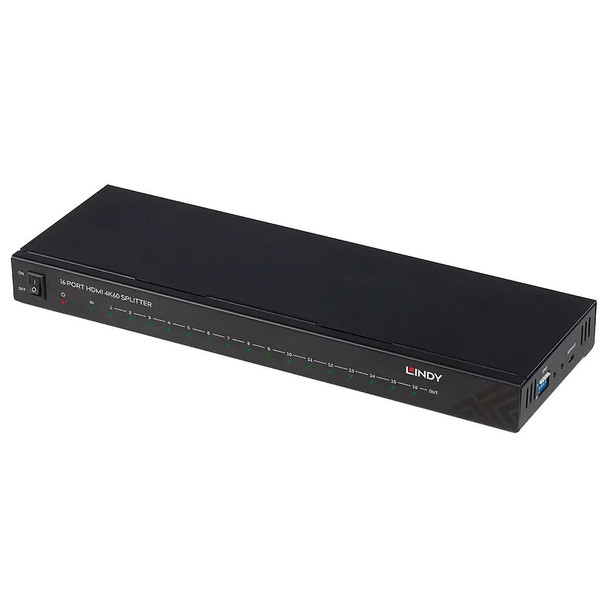

Lindy 16 Port HDMI 4K60 Splitter

The Lindy 16 Port HDMI Splitter is a professional-grade solution designed to distribute high quality HDMI content from a single source to up to 16 HDMI displays simultaneously. Ideal for use with media players, PCs, set-top boxes, and professional AV systems, this splitter ensures flawless HDMI signal distribution without loss of quality.

Supporting Ultra HD resolutions up to 3840x2160@60Hz 4:4:4 with HDR, the splitter guarantees stunning image clarity, vibrant colours, and enhanced contrast. With HDCP 2.2 support, it is fully compatible with the latest 4K content from Blu-ray players, games consoles, and on-demand streaming services.

An integrated smart EDID management system ensures optimum video performance across all connected displays, making installation simple and reliable. Housed in a durable metal chassis, this splitter is designed for professional AV and IT environments, ensuring consistent performance in demanding installations.

Key Features

• Distributes HDMI content from one source across 16 displays
• Supports resolutions up to 4K@60Hz 4:4:4 8bit with HDR
• HDCP 2.2 support for seamless 4K and Full HD playback
• Smart EDID management for optimum video performance
• Durable metal housing for professional installations
• Backed by a 2-year warranty

Applications

• Retail digital signage networks
• Hospitality and conference environments
• Transport hubs and public information displays
• Residential home cinema and multi-room AV setups
• Corporate training rooms and large-scale presentations

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Audio pass-through
• Special Features: EDID management

Connectors

• Input: 1 x HDMI Type A (Female)
• Outputs: 16 x HDMI Type A (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (W×D×H): 300 × 100 × 28mm (11.81 × 3.94 × 1.1in)
• Housing Material: Metal
• Net Weight: 0.9kg (1.98lb)
• Operating Temperature: 0°C – 40°C
• Colour: Black

Package Contents

• 16 Port HDMI 4K60 Splitter
• Multi-country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Product Compliance

Certified CE, UKCA, FCC, RoHS, REACH & California Proposition 65.

Download

• Data Sheet for 38239 16 Port HDMI 4K60 Splitter
• User Manual for 16 Port HDMI 4K60 Splitter
