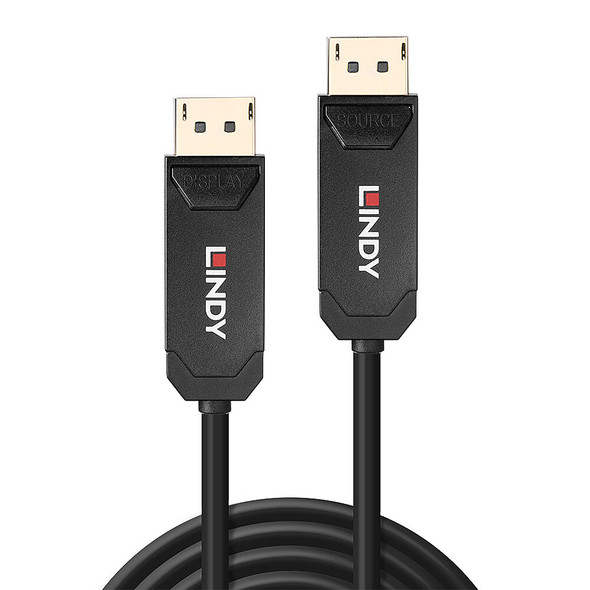

Lindy Fibre Optic Hybrid DisplayPort 2.0 Cable – 15m

The Lindy Fibre Optic Hybrid DisplayPort 2.0 Cable provides a professional, high-performance solution for extending DisplayPort (DP) signals over long distances. Combining the high EMI & RFI resistance of fibre optic technology with the reliability of copper cabling, this hybrid cable is ideal for critical AV setups, commercial displays, and high-performance residential installations. It ensures exceptional video and data transfer quality, even at extended lengths.

With a 40Gbps bandwidth (UHBR10), this cable supports DisplayPort 2.0 resolutions up to 8K at 60Hz and 4K at 144Hz, allowing you to enjoy crystal-clear, high-definition content with high refresh rates and HDR support. This hybrid design uses advanced technology to amplify the DP signal uncompressed, enabling long-distance extension of 8K content—something that passive cables simply cannot achieve.

Key Features

• Hybrid fibre optic and copper cable for long-distance, high-performance DisplayPort connectivity
• Supports up to 40Gbps bandwidth (UHBR10), with 4 lanes (10Gbps per channel)
• Supports up to 8K at 60Hz and 4K at 144Hz for immersive video quality
• Perfect for gaming, professional content creation, and high-end AV setups
• Static and dynamic HDR support for superior video clarity
• Gold-plated connectors for enhanced signal integrity and durability
• Flexible and robust construction for installation in any environment
• 2-year warranty for added reliability

Technical Specifications

• Connector A: DisplayPort (Male)
• Connector B: DisplayPort (Male)
• Connector Plating: Gold Plated
• Cable Length: 15m (49.21ft)
• Jacket Material: PVC
• Jacket Diameter: 4.0mm (0.16in)
• Conductor Material: Copper and Fibre
• Conductor Gauge: 24AWG
• Bandwidth: 40Gbps (UHBR10)
• Maximum Resolution: 7680x4320@60Hz (4:2:0 10bit), 3840x2160@144Hz (4:4:4 10bit)
• Nominal Attenuation: ≤10dB/km@850nm, ≤8dB/km@1300nm
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: -10°C to 60°C (14°F - 140°F)
• Storage Temperature: -20°C to 70°C (-4°F - 158°F)
• Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Package Contents

• 15m Fibre Optic Hybrid DisplayPort 2.0 Cable
• Lindy Manual

Downloads:

• Data Sheet for Fibre Optic Hybrid DP 2.0 UHBR10 Cable

Why Choose Lindy Fibre Optic Hybrid DisplayPort 2.0 Cable?

Designed for high-end applications, the Lindy Fibre Optic Hybrid DisplayPort 2.0 Cable provides a seamless connection for high-definition video, data transfer, and gaming over long distances. Whether you're connecting large displays, professional workstations, or creating an immersive home theatre, this cable offers the bandwidth and video quality needed for modern AV setups. Its robust hybrid design ensures durability, and with a 2-year warranty, it’s a reliable, long-term solution for your most demanding environments.
