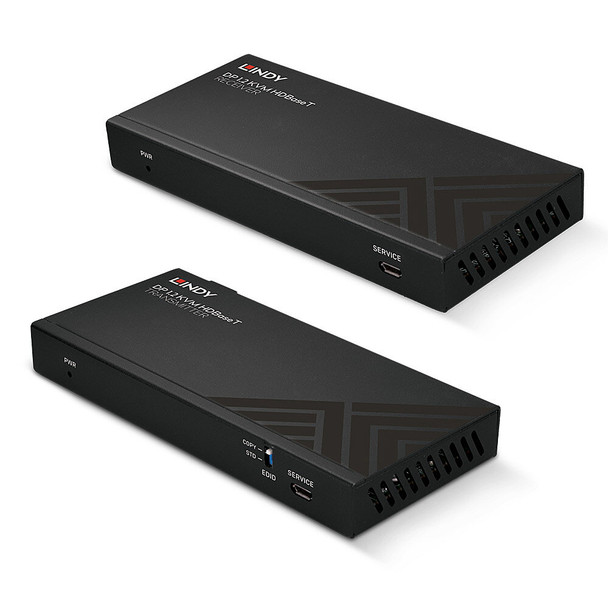

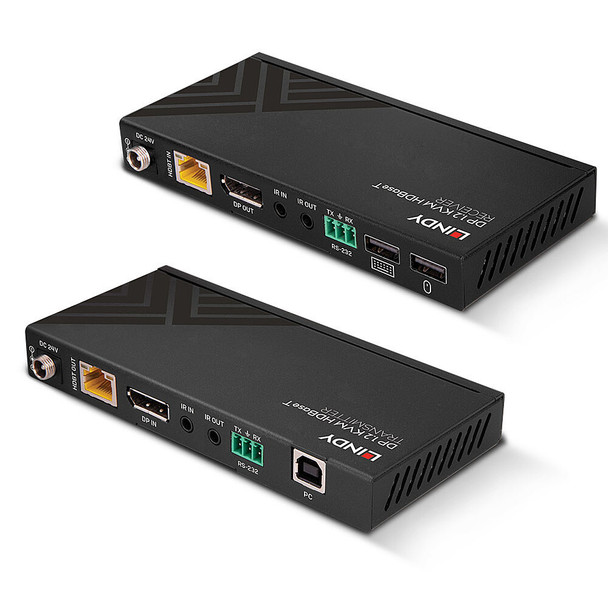

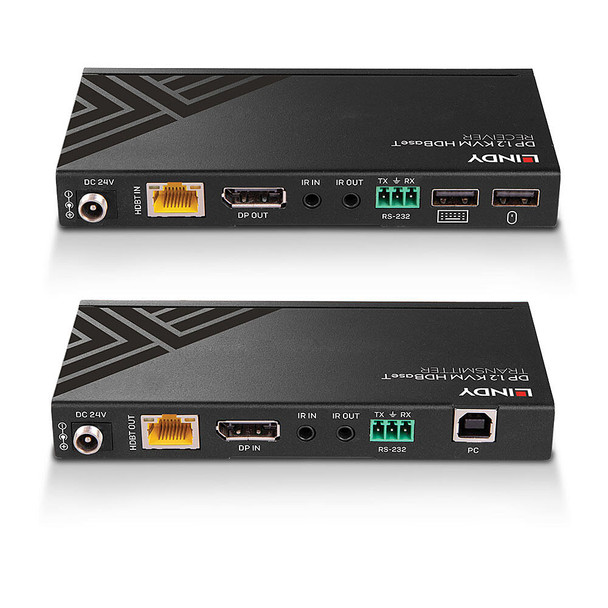

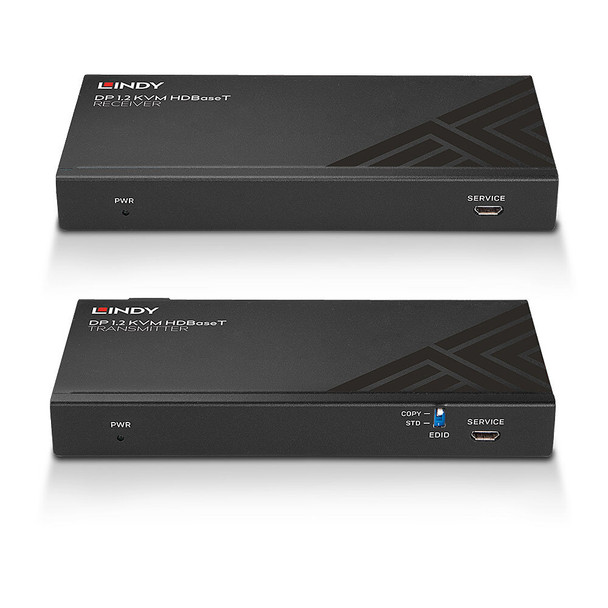

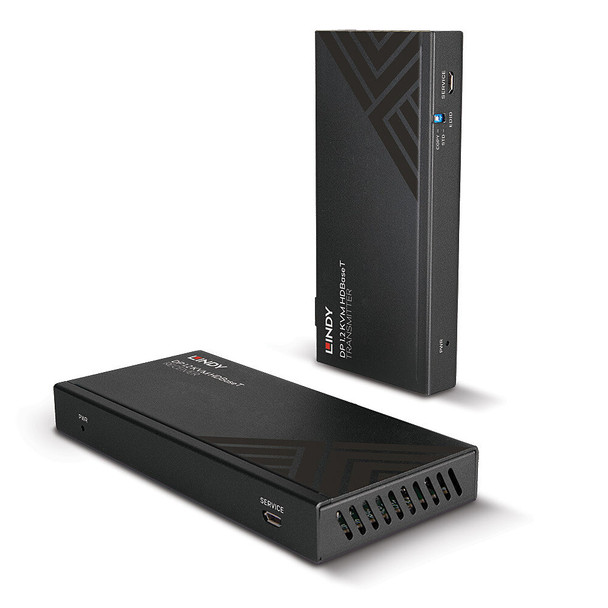

Lindy 120m Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender

The Lindy 120m Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender is a high-end, reliable solution for extending DisplayPort signals over long distances using standard Cat.6 network cables. Ideal for professional AV setups, this extender supports resolutions up to 4K@60Hz with HDR, delivering stunning video quality and immersive audio for applications like digital signage, conference rooms, and educational installations.

Key Features

• Extends DisplayPort signals up to 150m over Cat.6 cables via HDBaseT technology
• Supports resolutions up to 3840x2160@60Hz 4:4:4 with HDR support for vivid colors and contrast
• USB 2.0 ports for keyboard and mouse control of a remote PC
• Bi-directional IR and RS-232 for remote control of source and display devices
• PoC (Power over Cable) functionality reduces the need for multiple power supplies
• EDID pass-through for optimal display compatibility
• 2-year warranty for reliability

Applications

This DisplayPort KVM extender is ideal for:

• Professional AV and IT setups, including conference rooms and lecture halls
• Digital signage applications in retail, hospitality, and event venues
• Control of remote PCs from a single workstation or desk
• Home cinema and entertainment systems requiring long-distance signal transmission

Package Contents

• HDBaseT DP KVM Extender, Transmitter
• HDBaseT DP KVM Extender, Receiver
• USB 2.0 Type A to Type B Cable (1.5m)
• IR Emitter Cable (1.5m)
• IR Receiver Cable (1.5m)
• 4 x Mounting Ears with screws
• 2 x 3-Pin Terminal Block
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Technical Specifications

• AV Interface: DisplayPort
• Interface Standard: DisplayPort 1.2, USB 1.1
• Supported Bandwidth: 21.6Gbps
• Maximum Distance: 150m (492.12ft) over Cat.6 cable
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass-through: Dip switch with copy function
• Audio Support: HDMI Audio pass-through
• IR Support: 20-60kHz bi-directional
• RS-232 Interface: Pass-through for control integration
• Transmission Protocol: HDBaseT
• Transmission Medium: Cat.6
• Power Requirements: 24VDC 1A via 5.5/2.1mm DC socket
• Power Over Cable (PoC): Yes
• Dimensions: 140x65x18mm (5.51x2.56x0.71in) per unit
• Housing Material: Metal
• Net Weight: 0.65kg (1.43lb)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20-90% RH (non-condensing)
• Colour: Black
• Certifications: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Download

• User Manual for 150m CAT6 DisplayPort 1.2 HDBaseT KVM Extender

Why Choose the Lindy 120m Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender?

The Lindy 120m Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender is the perfect solution for extending 4K DisplayPort signals over long distances, ideal for high-quality AV distribution in professional environments. With PoC support, bi-directional IR, and RS-232 control, it provides a flexible, efficient way to manage video, audio, and device control over Cat.6 cable. Whether you're setting up a conference room, digital signage, or home entertainment system, this extender ensures high-quality video transmission and seamless control of connected devices.
