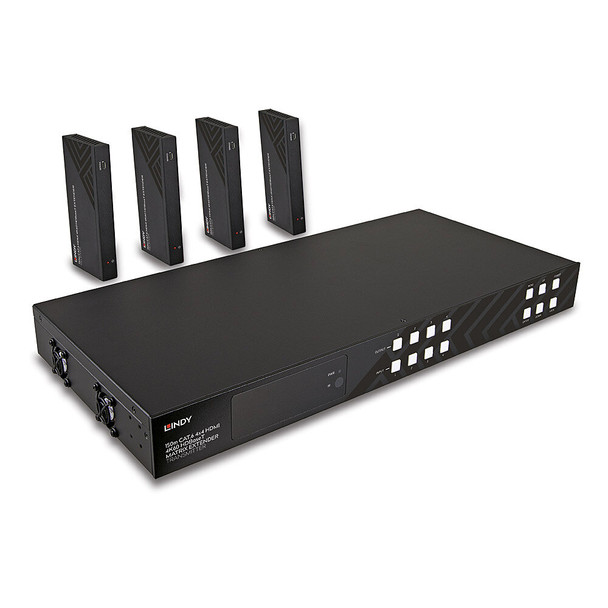

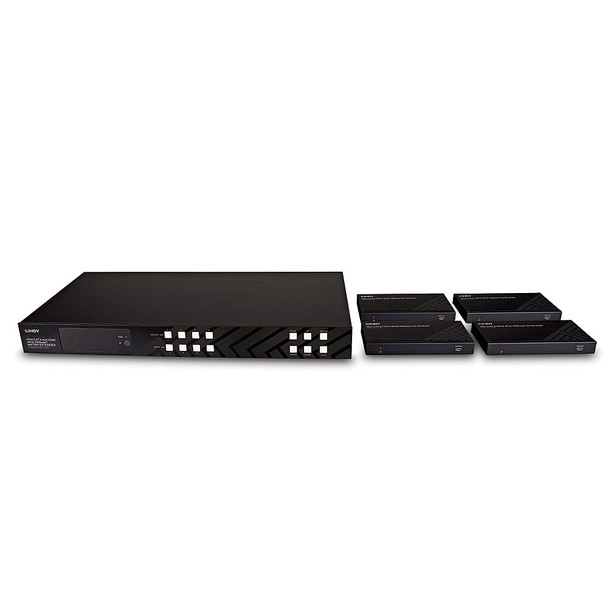

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an advanced and comprehensive solution for switching and extending 4 HDMI signals to up to 4 HDBaseT receivers, using Cat.6 cables (or higher) at distances of up to 150 meters. Designed for professional AV and digital signage applications, this extender ensures superior video quality and flexibility, making it perfect for education, retail, immersive displays at events, and conference rooms.

Key Features

• Extend and distribute HDMI, IR & RS-232 signals to 4 displays up to 150 meters
• Supports resolutions up to 4K60Hz with HDR and 1080p
• Features HDMI loop-out ports for local monitoring and creating additional viewing zones
• PoC (Power over Cable) support, powering receivers through Cat.6 cable
• Advanced EDID management, customizable downscaling, and audio de-embedding functions
• RS-232 and IR control options for easy integration and management
• 2-year warranty for reliability and peace of mind

Applications

This HDBaseT Matrix Extender is ideal for:

• Pro AV setups in education, retail, and corporate environments
• Large format displays and digital signage in public spaces
• Event venues, trade shows, and immersive displays
• Conference rooms requiring flexible AV switching and distribution

Package Contents

• 4x4 HDBaseT Extender Matrix - Transmitter
• 4 x HDBaseT Receivers
• 5 x IR Emitter Cables (1.5m)
• 5 x IR Receiver Cables (1.5m)
• 10 x Mounting Ears & Screws
• 4 x 3-Pin Terminal Block
• 4 x 5-Pin Terminal Block
• RS-232 Male to Female Cable (1.5m)
• 4 x Mains Cables (EU, UK, US & AUS) (1.5m)
• Lindy Manual

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 120m (393.7ft) at 3840x2160@60Hz, 150m (492.12ft) at 1920x1080@60Hz
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Audio Support: HDMI audio pass-through, digital audio up to 5.1Ch, analog audio up to 2.0Ch
• IR Support: 20 - 60KHz
• Transmission Protocol: HDBaseT
• Transmission Medium: Cat.6
• Power: 60W

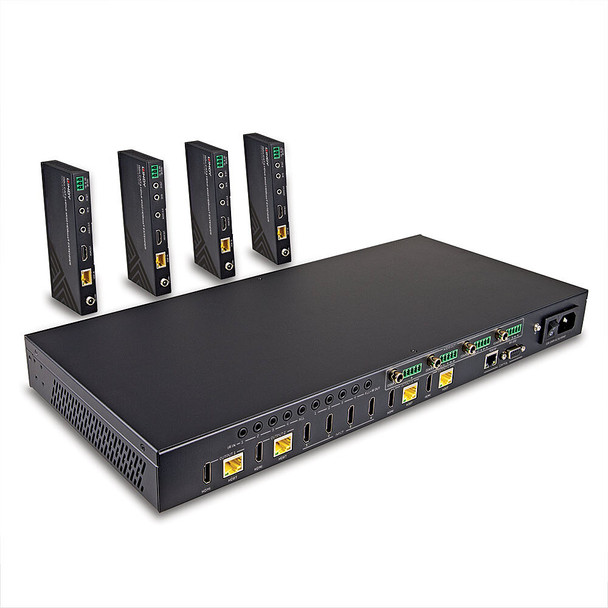

• Connectors (Transmitter): 4 x HDMI (Female), 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female), RS-232 9 pin (Female), RJ45 (Female)
• Connectors (Receiver): 3.5mm IR (Female), RJ45 HDBaseT (Female), HDMI (Female), 3.5mm Audio (Female)
• Dimensions (Matrix): 440x200x45mm (17.32x7.87x1.77in)
• Dimensions (Receivers): 140x65x18mm (5.51x2.56x0.71in)
• Housing Material: Metal
• Net Weight: 5.31kg (11.71lb)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Humidity: 20 - 90% RH (Non-condensing)
• Colour: Black
• Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Download

• User Manual for 150m CAT6 4x4 HDMI 4K60 HDBaseT Matrix Extender

Why Choose the Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender?

This high-end matrix extender offers an all-in-one solution for distributing and managing HDMI signals over long distances with advanced features such as PoC, EDID management, and flexible audio support. Whether you're managing a large AV setup, digital signage, or a conference room display, this system delivers professional-grade performance and reliability.
