Lindy 120m Cat.6 HDMI & USB KVM Extender

The Lindy 120m Cat.6 HDMI & USB KVM Extender provides a reliable, end-to-end solution for controlling a source device, such as a PC, using a single keyboard, mouse, and display over long distances using Cat.6 network cable. This versatile extender supports Full HD 1920x1080 resolution, making it perfect for high-performance KVM applications, digital signage, and large conference room or lecture hall setups.

Key Features

• Extends HDMI and USB signals up to 120m (393ft) over Cat.6 network cable
• Supports Full HD 1920x1080 resolution at 60Hz for clear, high-quality video
• HDMI loop-out port on the transmitter for simultaneous viewing on local and remote displays
• Supports PoC (Power over Cable), requiring only a single power supply at the transmitter unit
• USB ports for keyboard and mouse control of a USB source device (e.g., PC or laptop)
• Perfect for applications like educational systems, home cinema, entertainment setups, or trade shows
• 2-year warranty for reliability

Applications

This KVM extender is ideal for:

• Educational presentation systems
• Home cinema and entertainment systems
• AV installations in larger conference rooms and lecture halls
• Trade shows and events requiring long-distance signal transmission
• Retail environments with digital signage

Package Contents

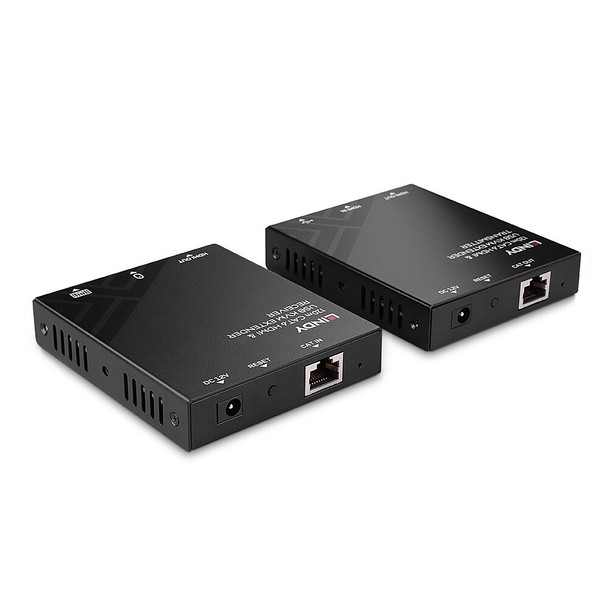

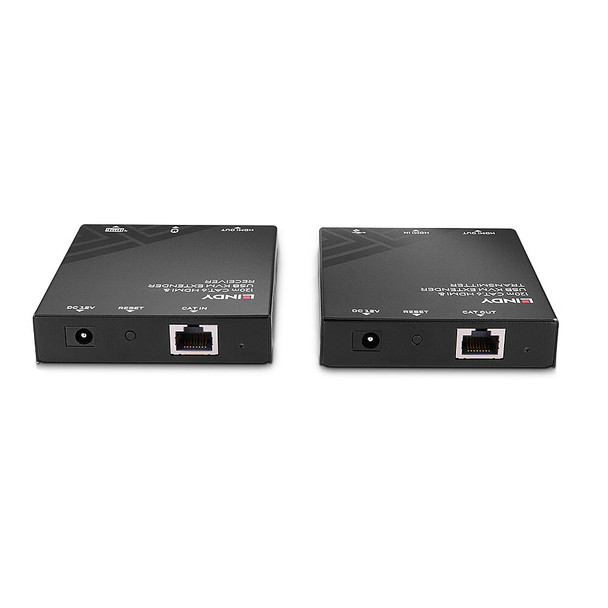

• HDMI KVM Extender, Transmitter
• HDMI KVM Extender, Receiver
• 4 x Mounting Ears with screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Technical Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4, USB 1.1
• Supported Bandwidth: 4.95 Gbps
• Maximum Distance: 120m (393ft) over Cat.6 network cable
• Maximum Resolution: 1920x1080@60Hz
• HDCP Support: 2.2
• EDID Pass-through: Yes
• Audio Support: HDMI audio pass-through
• CEC Support: Pass-through
• Transmission Medium: 1 x Cat.6
• Special Features: HDMI loop-out port, PoC (Power over Cable)
• Connectors (Transmitter): HDMI Type A (Female), USB Type A (Female), RJ-45 (Female)
• Connectors (Receiver): RJ-45 (Female), HDMI Type A (Female), 2 x USB Type A (Female)
• Power: 24VDC 1A via 5.5/2.1mm DC socket
• Dimensions (Transmitter/Receiver): 95x80x16.5mm (3.74x3.15x0.63in) per unit
• Housing Material: Metal
• Net Weight: 0.4kg (0.88lb)
• Operating Temperature: -5°C to 55°C (23°F to 131°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 10% to 90% RH (non-condensing)
• Colour: Black
• Certifications: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

DOWNLOADS

• User Manual for 120m CAT6 KVM Extender, HDMI 4K30 & USB
• Data Sheet for 39381 120m CAT6 KVM Extender, HDMI 4K30 & USB

Why Choose the Lindy 120m Cat.6 HDMI & USB KVM Extender?

The Lindy 120m Cat.6 HDMI & USB KVM Extender provides a reliable, high-quality solution for extending HDMI and USB signals over long distances. With PoC functionality, HDMI loop-out support, and ease of installation, it is ideal for various professional and commercial environments. Whether for educational setups, retail digital signage, or home entertainment, this KVM extender offers the flexibility and performance needed to streamline AV installations.
