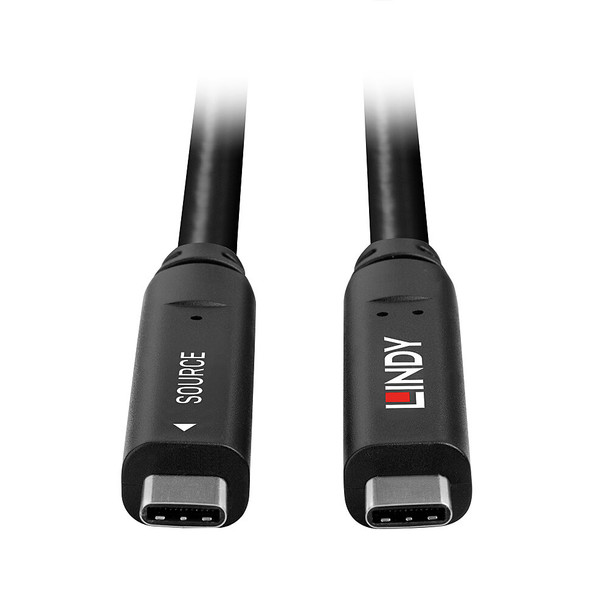

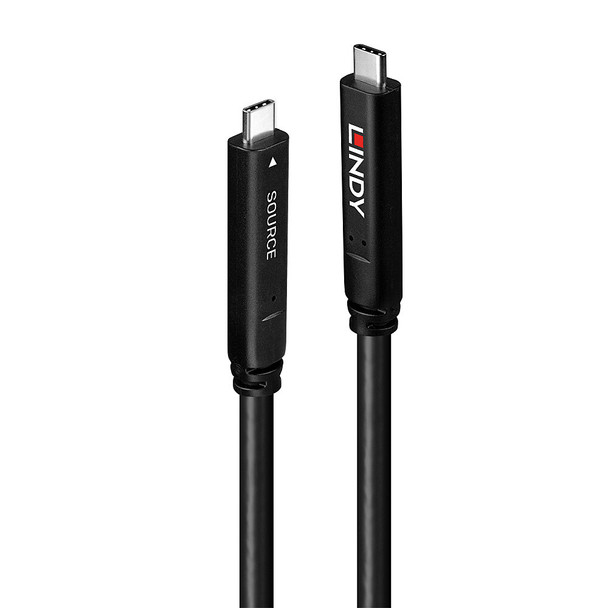

Lindy USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable – 10m

The Lindy USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable is a powerful, all-in-one solution designed to deliver seamless data transfer, high-definition video, and power delivery over a single cable. Perfect for modern meeting rooms, classrooms, or entertainment areas, this 10-meter cable allows you to connect devices such as LFDs (Large Format Displays) and touch panels with ease, offering excellent flexibility and unmatched performance.

Supporting up to 4K resolution at 144Hz on DisplayPort Alternate Mode, this hybrid cable excels in graphics-intensive tasks like gaming, content creation, and streaming. It delivers superior video quality and smoothness, making it a perfect choice for professional applications and entertainment setups.

Key Features

• 10m hybrid cable supporting data, video, and Power Delivery over USB Type C
• Data transfer rates of up to 10Gbps (USB 3.2 Gen 2)
• Supports DisplayPort 1.4 with video resolutions up to 4K 3840x2160 at 144Hz (4 lanes)
• USB Power Delivery (PD) up to 60W (20V, 3A) for device charging
• Flexible and easy to install with enhanced resistance to RFI/EMI interference
• Perfect for connecting USB Type C and Thunderbolt 3/4 equipped computers to high-performance displays
• Plug and play for quick, hassle-free installation
• 2-year warranty for reliability and peace of mind

Technical Specifications

• Connector A: USB Type C Male
• Connector B: USB Type C Male
• Power: PD 20V / 3A (60W)
• Housing Material: Plastic
• Connector Plating: Stainless Steel + Solder Nickel
• Pin Construction: Copper Alloy + Gold Plated Mating Area
• Cable Length: 10m (32.81ft)
• Cable Type: Round, PVC jacket
• Jacket Diameter: 6.5mm (0.26in)
• Conductor Gauge: 21AWG (Power)
• Shielding: Tinned Copper
• Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
• Maximum Resolution: 4K 3840x2160@144Hz
• Operating Temperature: 5°C to 60°C (41°F - 140°F)
• Storage Temperature: -20°C to 80°C (-4°F - 176°F)
• Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Package Contents

• 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
• Lindy Manual

Downloads:

• User Manual for USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable

Why Choose Lindy USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable?

This hybrid cable combines the capabilities of USB 3.2 Gen 2, DisplayPort 1.4, and Power Delivery, offering a versatile solution for data transfer, video output, and device charging. With a 10-meter length and robust optical fiber construction, it delivers high-speed performance and video clarity, making it perfect for demanding environments like professional workstations, gaming setups, and home entertainment systems. Plus, with a 2-year warranty, you can trust Lindy for reliable, long-term performance.
