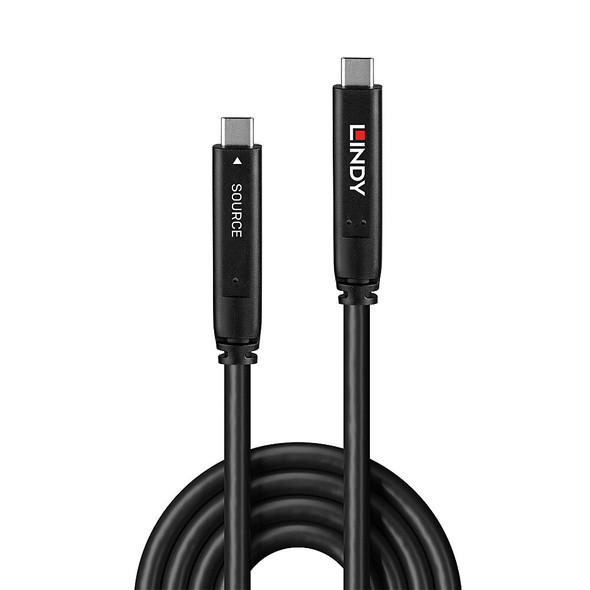

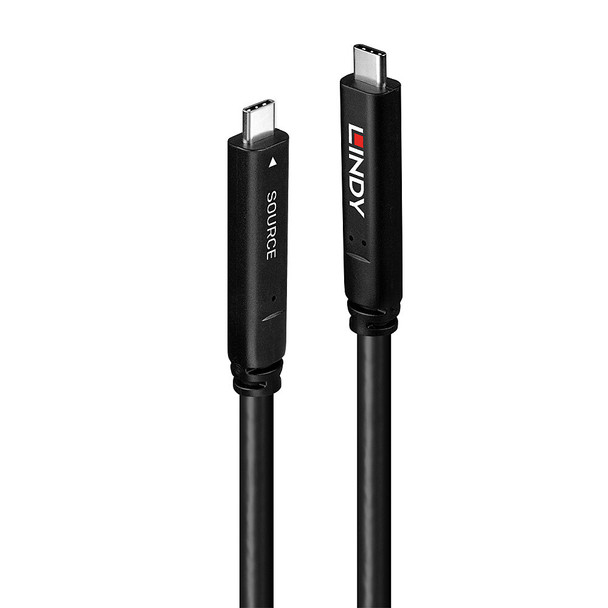

Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable – 10m

The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a high-performance optical fibre solution that combines data, video and power delivery into a single 10m cable. Designed for modern meeting rooms, classrooms, and professional AV installations, it provides reliable long-distance transmission of both USB 3.2 and DisplayPort 1.4 signals while maintaining excellent signal integrity.

With support for USB 3.2 Gen 1 data transfer rates up to 5Gbps, DisplayPort 1.4 Alternate Mode for 4K UHD resolutions at 30Hz, and USB Power Delivery up to 60W (20V/3A), this cable ensures seamless performance for the latest laptops, ultrabooks, MacBooks, and Type C computers. The optical fibre construction provides superior resistance to RFI/EMI, making it suitable for installation in sensitive environments where signal reliability is critical.

Its slim, flexible design allows easy installation, while Plug & Play functionality ensures quick, fuss-free setup without additional drivers.

Key Features

• 10m USB 3.2 Gen 1 & DisplayPort 1.4 Hybrid Optical Cable
• Data transfer rates up to 5Gbps
• Supports DisplayPort 1.4 Alternate Mode with resolutions up to 3840x2160@30Hz
• Power Delivery up to 60W (20V/3A) for charging and powering connected devices
• Optical fibre transmission ensures high performance with strong RFI/EMI resistance
• Compatible with USB Type C and Thunderbolt 3 equipped computers
• Flexible construction for easy installation in meeting rooms and classrooms
• 2-year warranty

Applications

• Ideal for connecting laptops, MacBooks, and ultrabooks to large format displays (LFDs) and interactive touchpanels
• Perfect for corporate meeting rooms, lecture halls, and classrooms
• Reliable long-distance extension of USB 3.2 and DisplayPort signals in professional AV/IT environments
• Suited for sensitive environments requiring RFI/EMI resistance

Package Contents

• 10m Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
• Lindy Manual

Technical Specifications

• Connectors: USB Type C Male to USB Type C Male
• Standards: USB 3.2 / 3.1 Gen 1, DisplayPort 1.4 (2 lanes)
• Bandwidth: 5Gbps
• Maximum Resolution: 3840x2160@30Hz
• Power Delivery: 60W (20V/3A)
• Transmission Medium: Optical Fibre 50/125 Multimode Fibre
• Transmission Technology: 850nm Laser Optical
• Shielding: SUS304
• Cable Length: 10m
• Jacket Diameter: 6.5mm
• Operating Temperature: -10°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: CE, FCC, RoHS, REACH, CP65
• Warranty: 2 Years

Important Notes

• USB devices that only support DP signals over 4 lanes may not be compatible.
• Displays must have USB settings set to USB 3.0 in order to receive video via Type C.

Download

• User Manual for USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
• Data Sheet for 43333 10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable

Why Choose the Lindy USB 3.2 Gen 1 & DP 1.4 Hybrid Cable?

This hybrid cable eliminates the need for multiple separate connections by delivering data, video, and power through a single optical cable. It is an efficient and future-proof solution for professional AV installations, ensuring long-distance reliability, superior performance, and easy installation in both commercial and educational environments.
