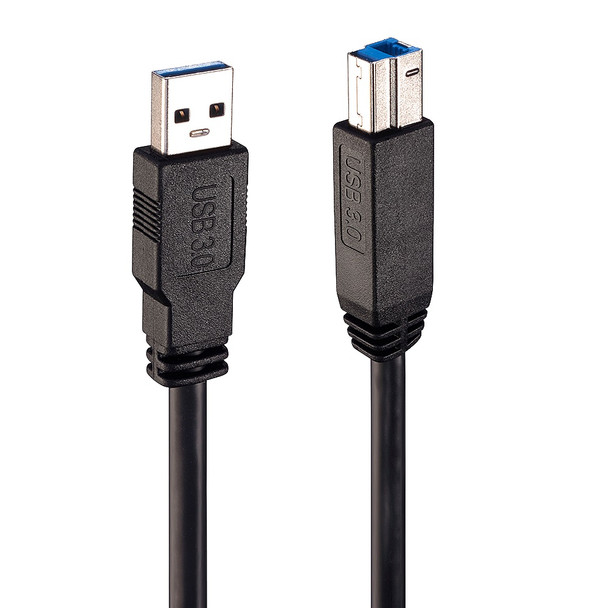

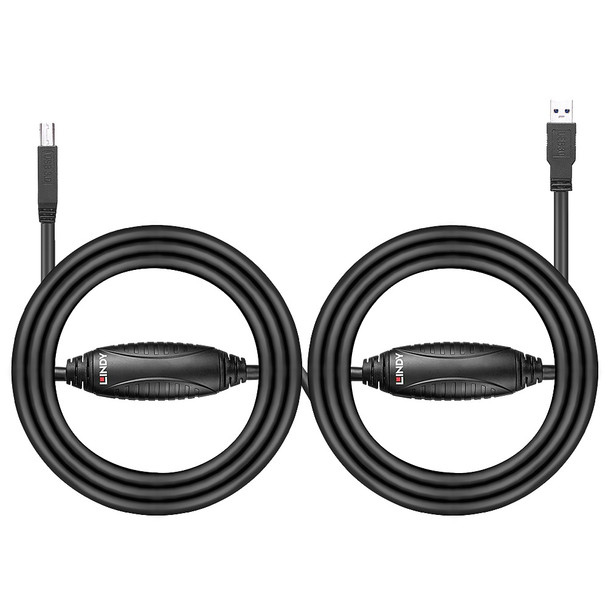

Lindy USB 3.0 Active Extension Cable – 10m

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the length of a USB 3.0 device connection by up to 10m, while maintaining full data transfer rates of up to 5Gbps. With a USB Type A male to USB Type B male connection, it is ideal for directly connecting devices such as printers and scanners at greater distances, ensuring flexible and reliable positioning.

Fully compatible with USB 3.0, 3.1 Gen 1 and 3.2 Gen 1 standards, this cable also offers backward compatibility with older USB generations. It is recommended for low-power or self-powered USB peripherals to ensure optimum performance.

Key Features

• Extends USB 3.0 connections up to 10m with built-in active electronics
• Supports SuperSpeed data transfer rates of up to 5Gbps
• USB Type A (Male) to USB Type B (Male) for direct connection to devices like printers
• Plug & Play installation with no drivers required
• Backwards compatible with USB 2.0 and 1.1 devices
• 2-year warranty for peace of mind

Applications

• Home or office setups requiring reliable long-distance USB 3.0 connections
• Direct connection of Type B devices such as printers and scanners
• Flexible device positioning without signal loss

Package Contents

• 10m USB 3.0 Active Extension Cable
• Lindy Manual

Technical Specifications

• Connectors: USB Type A Male to USB Type B Male
• Standard: USB 3.1 Gen 1 / 3.0
• Supported Bandwidth: 5Gbps
• Cable Length: 10m (32.8ft)
• Cable Type: Round, PVC Jacket
• Conductor: Copper, 28/28/22AWG
• Shielding: 85% Aluminium
• Nominal Attenuation:
  • 100 MHz: -1.5 dB
  • 1.25 GHz: -5.0 dB
  • 2.5 GHz: -7.5 dB
  • 7.5 GHz: -25 dB
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Dimensions:
  • USB A Male: 16x49x9mm
  • USB B Male: 10x52x13mm
  • Repeaters (2x): 35x100x15mm
• Net Weight: 0.5kg (1.1lb)
• Certifications: CE, UKCA, FCC, RoHS & REACH

Download

• User manual for 10m USB 3.0 Active Cable
• Datasheet for 43098 10m USB 3.0 Active Cable

Why Choose the Lindy USB 3.0 Active Extension Cable?

This cable is the perfect solution when you need to extend a USB 3.0 connection without sacrificing speed or reliability. Its active electronics ensure stable 5Gbps SuperSpeed performance, while its 10m reach provides flexibility for positioning printers and other USB Type B devices at a distance. With full backward compatibility, plug & play functionality, and robust shielding, it’s a dependable choice for both professional and home environments.
