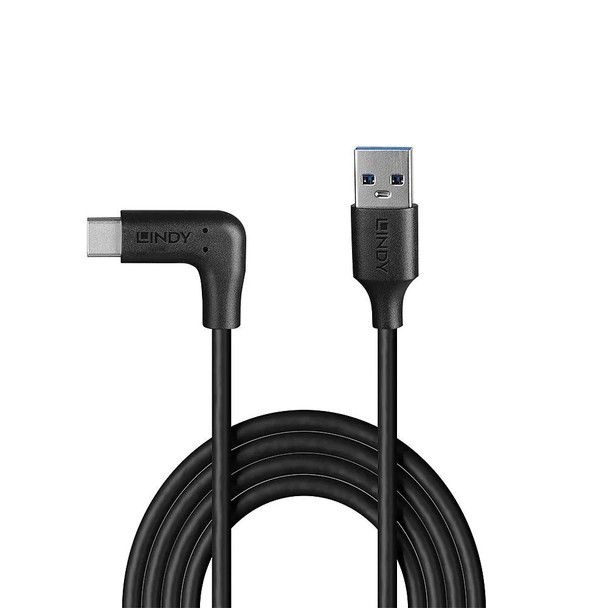

Lindy USB 3.2 Type A to Type C 90° Right Angle Cable – 10Gbps

The Lindy USB 3.2 Type A to Type C 90° Right Angle Cable delivers high-speed data transfer and robust build quality while protecting your device’s USB ports from strain. The angled plug design is perfect for confined spaces and hard-to-reach connections, helping prevent cable and port damage. With SuperSpeed USB 10Gbps capability, it’s ideal for fast file transfers and high-performance peripherals in both home and office environments.

Key Features

• USB 3.2 Gen 2 Type A to Type C cable with 90° right angle connector for port protection
• Supports 10Gbps SuperSpeed data transfer (USB 3.1 Gen 2 / USB 3.2 Gen 2)
• Triple-shielded construction for optimal noise suppression
• Corrosion-resistant tinned copper conductors for long-lasting performance
• Nickel-plated connectors with 24K gold-plated contacts for reliable signal integrity
• Reversible Type C connector for easy, no-orientation connection
• Compatible with USB 3.0, 3.1, and earlier versions
• Available in 0.5m, 1m, and 1.5m lengths
• 10-year warranty

Technical Specifications

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male (90° right angle)
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold
• Connector Dimensions (W×D×H): Type A – 15.5 × 35 × 7.8mm; Type C – 11.0 × 25.0 × 7.3mm

• Cable Standard: USB 3.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/30/30AWG
• Shielding: Aluminium Magnesium Braid (85%)

• Supported Bandwidth: 10Gbps
• Nominal Attenuation: 0.5MHz – 15GHz < 40dB
• Minimum Bend Radius: 45mm
• Operating Temperature: −20°C to 80°C
• Storage Temperature: −25°C to 85°C
• Certifications: RoHS, REACH, UL
• Packaging: Polybag
• Warranty: 10 years

USB 3.x Compatibility

• USB 3.0 / 3.1 Gen 1 / 3.2 Gen 1: Up to 5Gbps
• USB 3.1 Gen 2 / 3.2 Gen 2: Up to 10Gbps
• USB 3.2 Gen 2x2: Up to 20Gbps

Applications

• Connecting USB Type C devices such as smartphones, tablets, and laptops to USB Type A hosts
• Perfect for tight spaces behind desks, monitors, and wall-mounted setups
• High-speed data transfer for external drives, docks, and other peripherals

Why Choose Lindy USB 3.2 Right Angle Cables?

Combining speed, durability, and a port-friendly angled design, Lindy’s USB 3.2 right angle cables are the perfect solution for anyone needing reliable, high-performance connections in limited-space environments.
