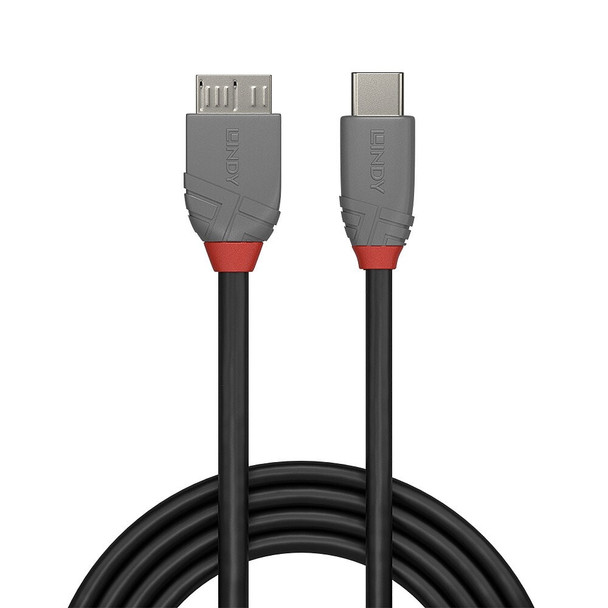

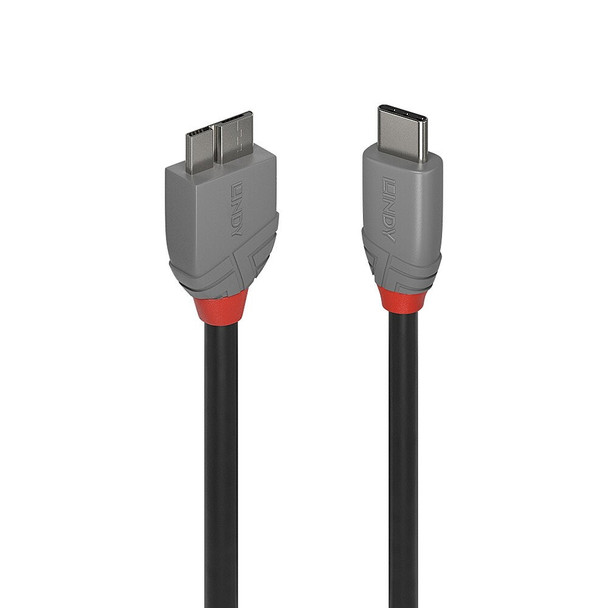

Lindy 0.5m USB 3.2 Type C to Micro-B Cable, 5Gbps, Anthra Line

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

The Anthra Line USB 3.2 Type C to Micro-B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability. USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found.

This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type C to Micro-B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

• Professional choice USB 3.2 Gen 1 Type C to Micro-B cable for commercial and high performance AV and IT installations
• SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
• Robust PVC housing, gold plated contacts and nickel plated connectors
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

TECHNICAL INFORMATION:

Connectors:

• Connector A: USB 3.2 Type C Male
• Connector B: USB 3.2 Type Micro-B Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction:
• C: High conductivity copper
• Micro-B: Brass Pin
• Plating: Gold
• Dimensions (approx.) WxDxH:
  C: 10.8x32x7.8mm (0.43x1.26x0.31in)
  Micro-B: 15.8x31.8x7.8mm (0.62x1.25x0.31in)

Cable Construction:

• Standard: USB 3.2 Gen 1
• Colour: Black
• Type: Round
• Jacket Diameter: 4.3mm (0.17in)
• Jacket Material: PVC
• Conductor Material:
• Tinned Copper
• Conductor Gauge Power: 22AWG
• Conductor Gauge Data: 30AWG
• Shielding: Copper Braid 82%
• Shielding in connector head shell: Copper foil

Specifications:

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: 100-2500MHz < 20dB
• Minimum Bend Radius: 25mm (0.98in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, California Proposition 65, UL
