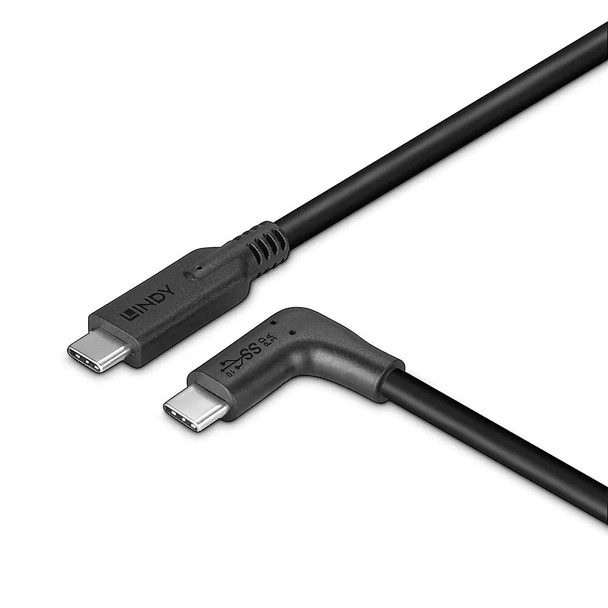

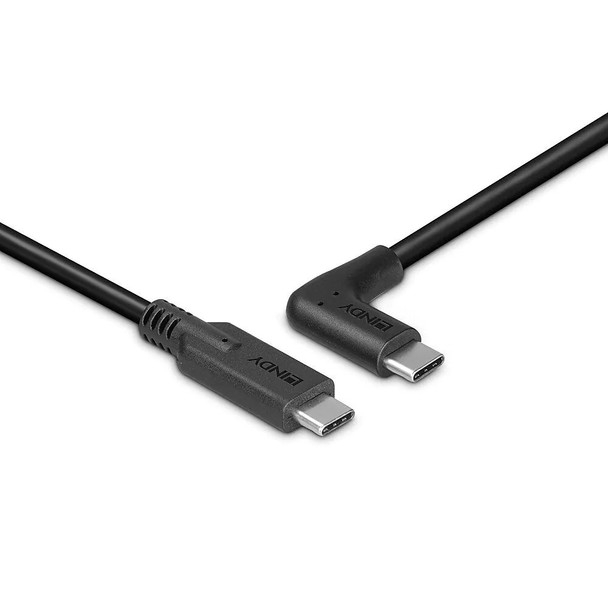

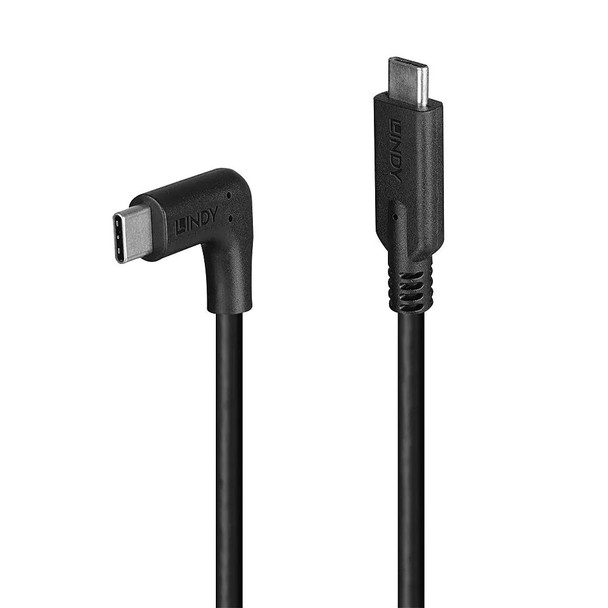

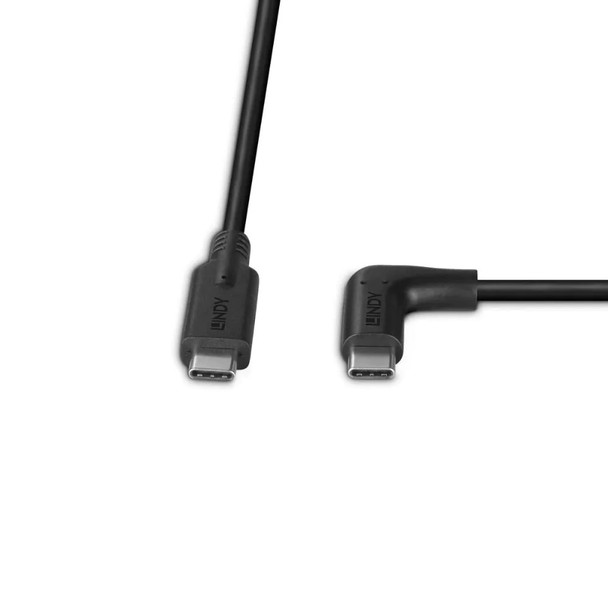

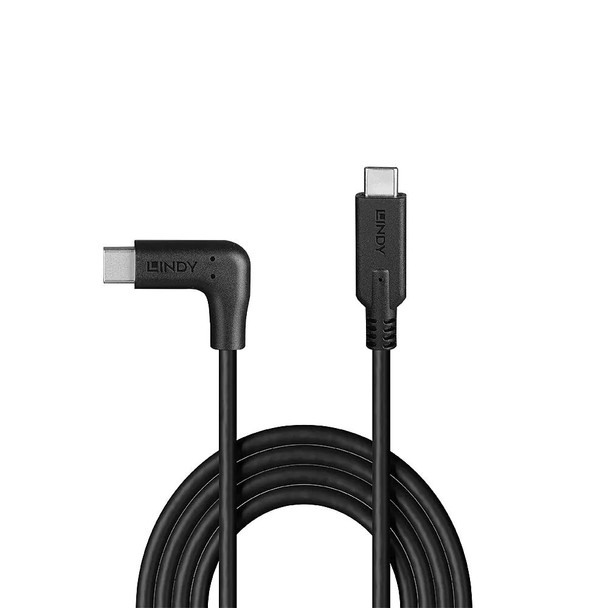

Lindy USB 3.2 C Cable, 90° Right Angle, 10Gbps

LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.

Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

USB 3.2 Gen 2x2 supports data transfer rates up to 20 Gbps.

• Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
• Robust PVC housing, nickel connectors, gold plated contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

TECHNICAL INFORMATION:

Connectors:

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold plated
• Dimensions (approx.) WxDxH:
  A: 15.5x35x7.8mm (0.61x1.38x0.31in)
  C: 11.0x25.0x7.3mm (0.43x0.98x0.29in)

Cable Construction:

• Standard: USB 3.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/30/30AWG
• Shielding: Aluminium Magnesium Braid 85%

Specifications:

• Supported Bandwidth: 10Gbps
• Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
• Minimum Bend Radius: 45mm (1.77in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
