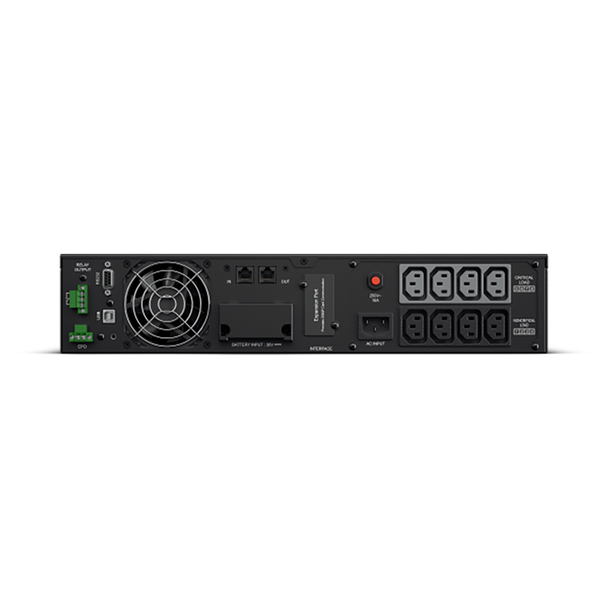

CyberPower Online Smart App UPS Systems 1500VA

Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

CyberPower OL1500ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency.

To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surges and spikes. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Critical/Non-critical Load Outlets
• Smart Battery Management (SBM)
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• ECO Mode
• Overload Protection
• Zero Transfer Time
• Hot-swappable Batteries
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Detachable LCD Panel
• PowerPanel Management Software
• Rack/Tower Convertible Configurations

What's in the box:

• OL1500ERTXL2U UPS
• Rackmount Rail
• Rackmount Ears
• Screw Kit
• Power Cord
• USB Cable
• Serial Cable
• Phone Line
• User's Manual
• Product Registration Card

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

Downloads:

• Datasheet

Specifications:

General
Phase	Single Phase
Form Factor	Rackmount, Tower
UPS Topology	Online Double Conversion
Energy Saving Technology	Online ECO Mode Efficiency > 95%
Active PFC Compatibility	Yes
Input
Generator Compatibility	Yes
Nominal Input Voltage ( Vac )	200
	208
	220
	230
	240
Input Voltage Range ( Vac )	190 ~ 300
Adjustable Voltage Range ( Vac )	0~60% Load for 120 ~ 139 Vac
	0~70% Load for 140 ~ 159 Vac
	0~80% Load for 160 ~ 179 Vac
	0~90% Load for 180 ~ 189 Vac
	0~100% Load for 190 ~ 300 Vac
Input Frequency ( Hz )	50 ± 10
	60 ± 10
Input Frequency Detection	Auto-sensing
Rated Input Current ( A )	7.5
Input Power Factor	0.99
Input Connector Type	IEC C14
Detachable Power Cord Plug Type	IEC C13 x 1
Power Cord Length (ft.)	6
Power Cord Length (m.)	1.8
Output
Capacity (VA)	1500
Capacity (Watts)	1350
On Battery Waveform	Pure Sine Wave
On Battery Voltage(s) ( Vac )	200 ± 2 %
	208 ± 2 %
	220 ± 2 %
	230 ± 2 %
	240 ± 2 %
Output Voltage Setting	Configurable
On Battery Frequency ( Hz )	50 ± 0.5%
	60 ± 0.5%
Output Frequency Setting	Configurable
Power Factor	0.9
ECO Mode Voltage Tolerance	± 10 %
	± 15 %
Overload Protection	Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)	105~125% Load for 1 min, 125~150% Load for 10 sec
Overload Protection (Battery Mode)	105~130% Load for 10 sec, 130~150% Load for 2 sec
Overload Protection (Bypass Mode)	Circuit Breaker
Crest Factor	3:01
Harmonic Distortion (Linear Load)	THD＜3%
Harmonic Distortion (Non-linear Load)	THD＜5%
Internal Bypass	Automatic Bypass, Manual Bypass
Outlet(s) - Total	8
Outlet Type	IEC C13 x 8
Outlet(s) - Battery & Surge Protected	8
Outlet(s) - Critical Load (CL)	4
Outlet(s) - Non-Critical Load (NCL)	4
Typical Transfer Time ( ms )	0
Battery
Runtime at Half Load ( min )	11
Runtime at Full Load ( min )	3
Typical Recharge Time ( Hours )	5
Maximum Charging Current ( A )	1
Start On Battery	Yes
Smart Battery Management (SBM)	Yes
User-replaceable	Yes
Hot-swappable	Yes
Battery Type	Sealed Lead-acid
Battery Cartridge (RBP)	RBP0074
Battery Cartridge (RBP) Quantity ( pcs )	1
Battery Quantity (Each RBP) ( pcs )	3
Battery Voltage (Each RBP) ( V )	36
Compatible Extended Battery Module (EBM)	BPE36V60ART2US
Max. EBM Quantity ( pcs )	10
Surge Protection & Filtering
Surge Suppression ( Joules )	1780
EMI/RFI Filtration	Yes
Phone/Network Protection RJ11/RJ45 (Combo)	1-in, 1-out
Management & Communications
LCD Panel	Yes
LCD Types	Detachable LCD Panel
LCD Information Display	Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control	Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
LED Indicators	Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery
HID Compliant USB Port(s)	1
Dry Contact (with Relay)	Yes
Emergency Power Off (EPO) Port	Yes
Audible Alarms	Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs )	Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1
Power Management Software	PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring	Yes - with optional RMCARD205
Physical
Enclosure Construction	Metal
Color	Black
Rackmount Rail	Yes
Rackmount Ears	Yes
Physical Size - Ups Module
Dimensions (WxHxD) (in.)	17 x 3.5 x 16.9
Dimensions (WxHxD) (mm.)	433 x 88 x 430
Weight (lbs.)	35.2
Weight (kg.)	18
Installed Rack Height ( U )	2
Shipping Dimensions
Dimensions (WxHxD) (in.)	22.6 x 9.4 x 21.7
Dimensions (WxHxD) (mm.)	575 x 240 x 550
Weight (lbs.)	53.9
Weight (kg.)	24.5
Environmental
Operating Temperature (°F)	32 ~ 104
Operating Temperature (°C)	0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )	0 ~ 90
Operating Elevation ( feet/meters )	0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)	-4 ~ 113
Storage Temperature (°C)	-20 ~ 45
Storage Relative Humidity (Non-condensing) ( % )	0 ~ 95
Storage Elevation ( feet/meters )	0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )	512
Audible Noise at 1.0M from Surface of Unit	38~55 dBA (0~100 % load)
Certifications
Certifications	CE, BSMI, C-Tick
RoHS	Yes
Warranty
Product Warranty Period (Year)	2
Battery Warranty Period (Year)	2
