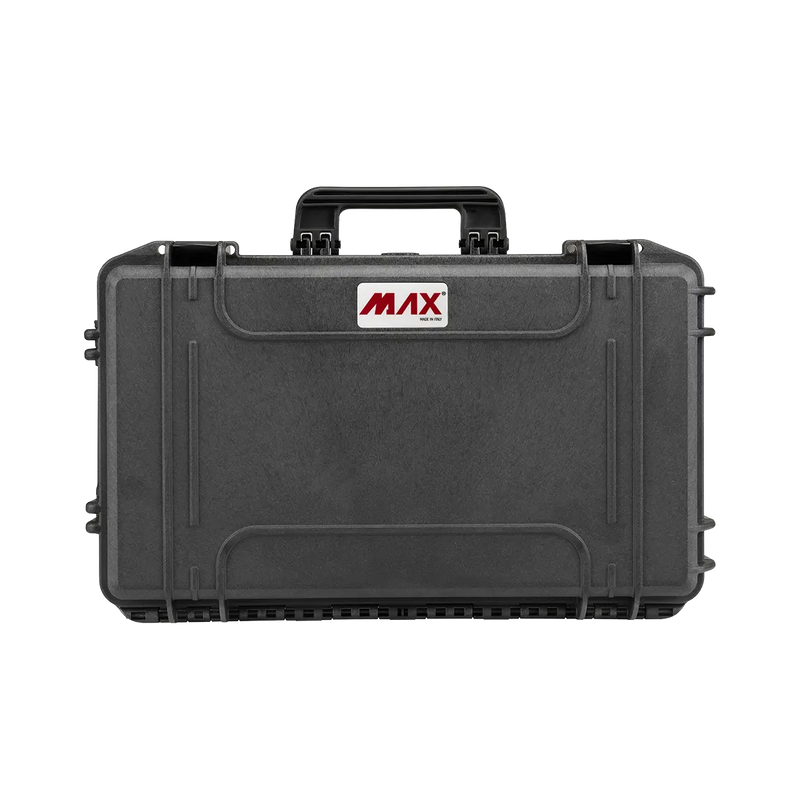

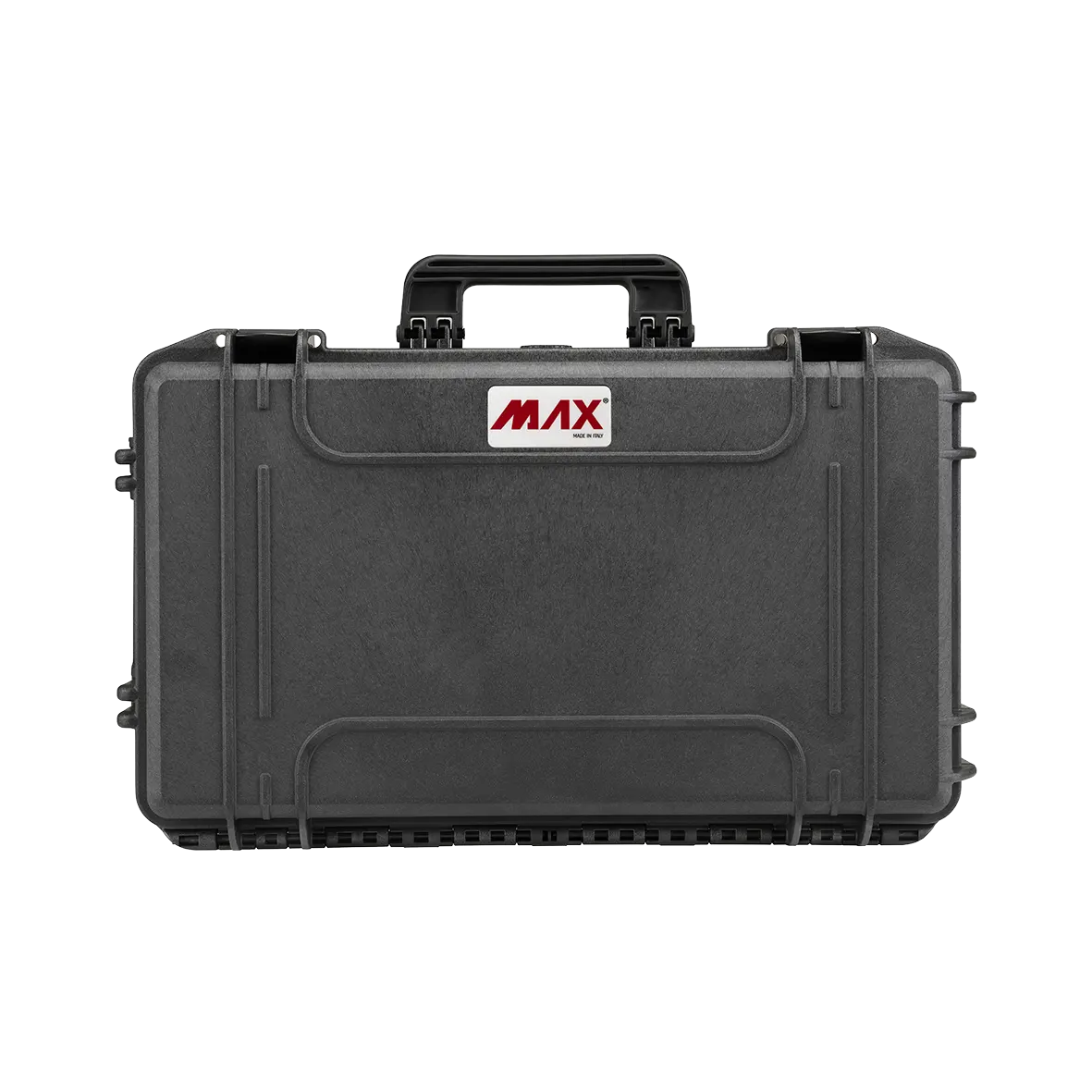

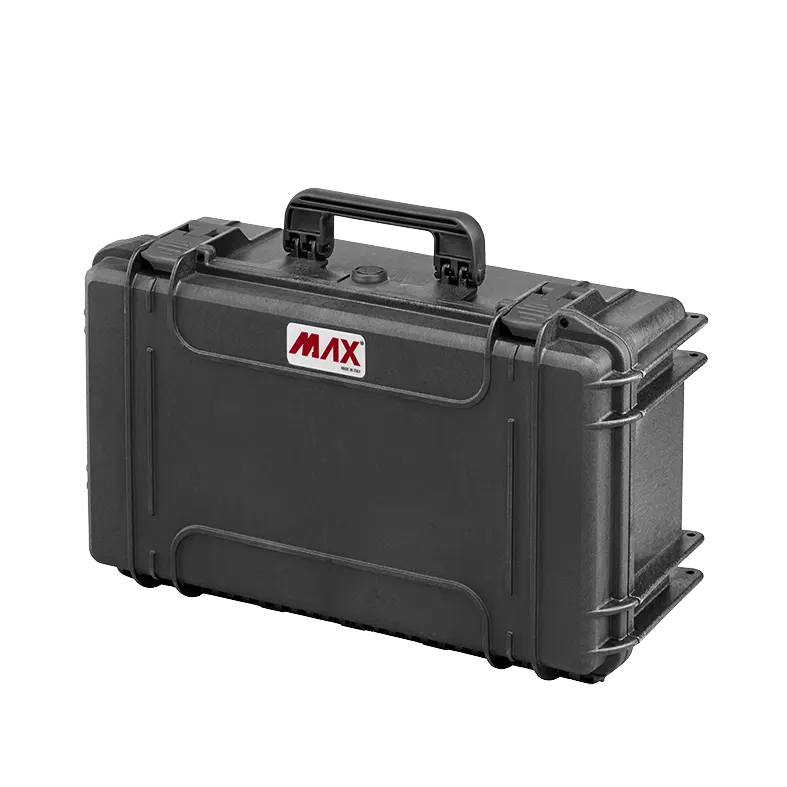

Closed Panaro MAX520 black case at an angle showing the carry handle, latches and red MAX logo

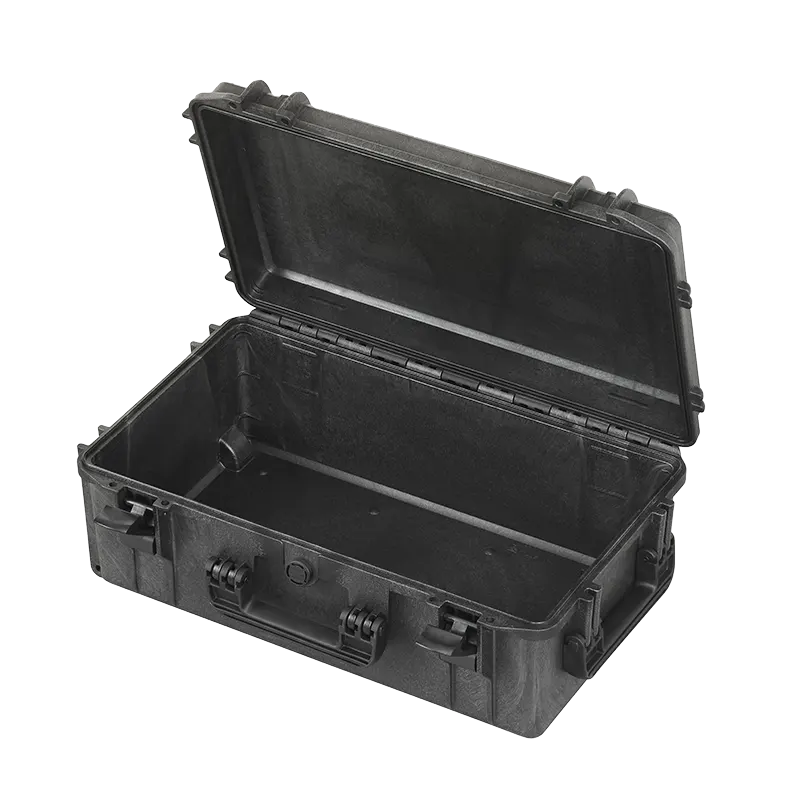

Panaro MAX520 open and empty, showing the plain interior and lid

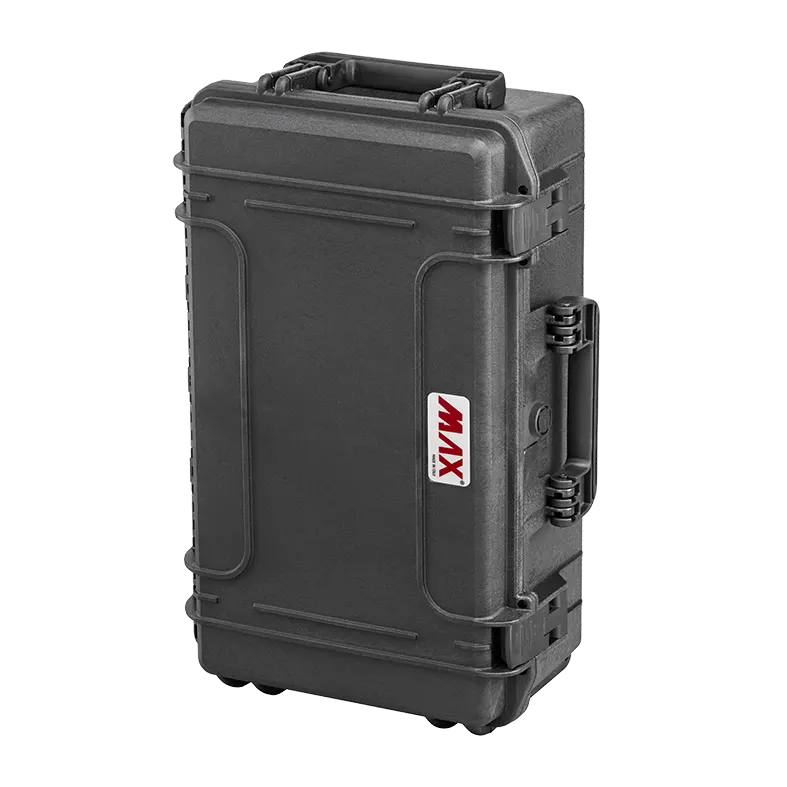

Panaro MAX520 standing on end showing the side handle and MAX logo
Top view of the Panaro MAX520 lid with the carry handle and MAX logo

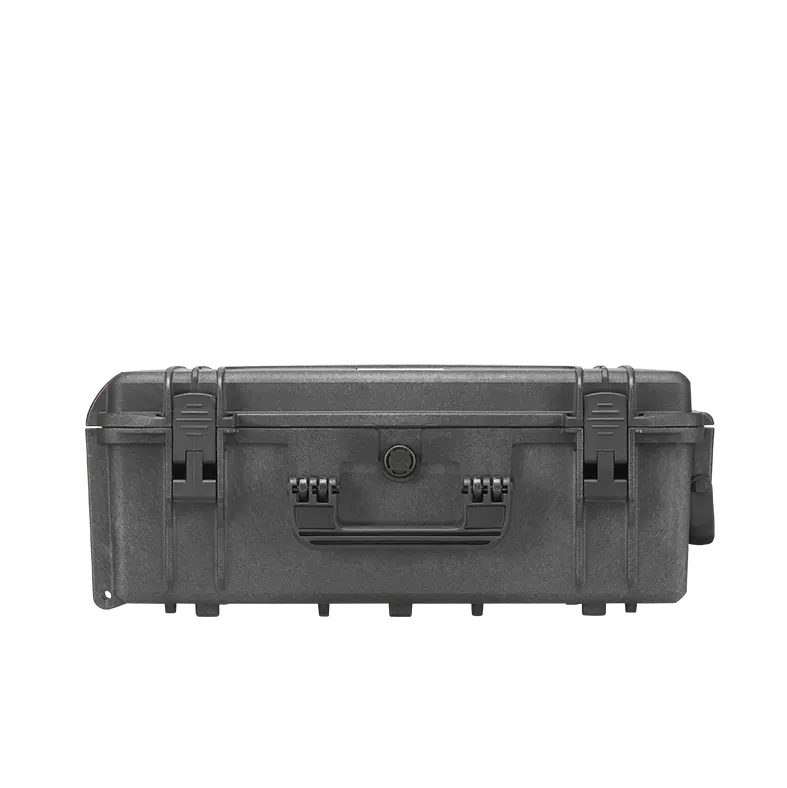

Front edge of the closed Panaro MAX520 showing the latches and pressure valve
Closed Panaro MAX520 black case at an angle showing the carry handle, latches and red MAX logo
Panaro MAX520 open and empty, showing the plain interior and lid
Panaro MAX520 standing on end showing the side handle and MAX logo
Top view of the Panaro MAX520 lid with the carry handle and MAX logo
Front edge of the closed Panaro MAX520 showing the latches and pressure valve
Closed Panaro MAX520 black case at an angle showing the carry handle, latches and red MAX logo
Panaro MAX520 open and empty, showing the plain interior and lid
Panaro MAX520 standing on end showing the side handle and MAX logo
Top view of the Panaro MAX520 lid with the carry handle and MAX logo
Front edge of the closed Panaro MAX520 showing the latches and pressure valve
Panaro

Panaro MAX520 Waterproof Case Black

$288.53
$288.53
RRP $302.32
Or 4 payments of $72.13 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX520

A Long, Slim MAX Case With an Open Interior

The Panaro MAX520 is a long, slim watertight case supplied empty, with 520 x 290 x 200 mm inside so long items like tripods, light stands or tool sets lie flat end to end.

It holds 30.16 litres, measures 574 x 361 x 225 mm outside and weighs 3.60 kg empty, splitting into a 45 mm lid and a 155 mm base. The polypropylene shell closes on an O-ring seal with double throw latches and an automatic pressure release valve. The open interior takes your own foam, dividers or a custom inlay.

Holes for two padlocks secure the contents between jobs, and the full length hinge and corrosion free nylon pins stand up to regular handling. The stackable lid and base let you store a fleet of cases neatly, and Panaro offer screen printing and custom labels for branded or numbered cases.

Panaro publish IP67 and STANAG 4280 / DEF STAN 81-41 documents for the MAX520 and state it is made in Italy. Panaro also publish an ATA 300 transport test report for this model. See our Panaro collection for foam versions, with other protective cases and defence and tactical cases.

Often ordered together

  • 520 x 290 x 200 mm interior, 30.16 litres
  • Empty interior for your own foam or dividers
  • O-ring seal and automatic pressure release valve
  • Double throw latches with two padlock points
  • Full length hinge with nylon pins
  • Stackable lid and base
  • Tripods, light stands and poles
  • Long hand tools and levels
  • Drones with long arms
  • Custom foam builds for slim kit
  • Marine and outdoor equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX520

Mega Code: PMMAX520

Configuration: Empty

Internal Dimensions: 520 x 290 x 200 mm

External Dimensions: 574 x 361 x 225 mm

Lid and Base Depth: 45 mm lid + 155 mm base

Capacity: 30.16 litres

Weight: 3.60 kg empty (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, ATA 300

Materials: Polypropylene shell, nylon latches, polymer O-ring

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

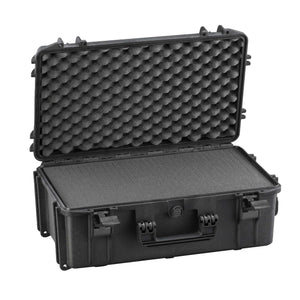

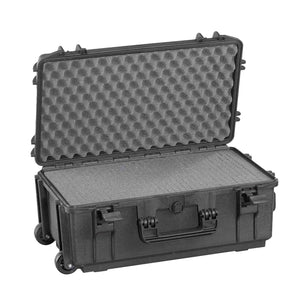

Empty suits a custom foam inlay, padded dividers or pouches. If you want pick and pluck foam straight away, the MAX520S is the same case with cubed foam fitted.
Panaro publish an IP67 certificate for the MAX520, which covers dust and temporary immersion. Keep the O-ring seal clean and the latches fully closed.
No. The MAX520 is a hand carry case. Look at the trolley versions in the range if you need wheels and a telescopic handle.
Yes. Panaro offer custom foam inlays for MAX cases. Send us your equipment list and we will get a quote from Panaro.
Yes. The downloads below include Panaro's datasheet, a 2D drawing and the test documents published for the MAX520.
