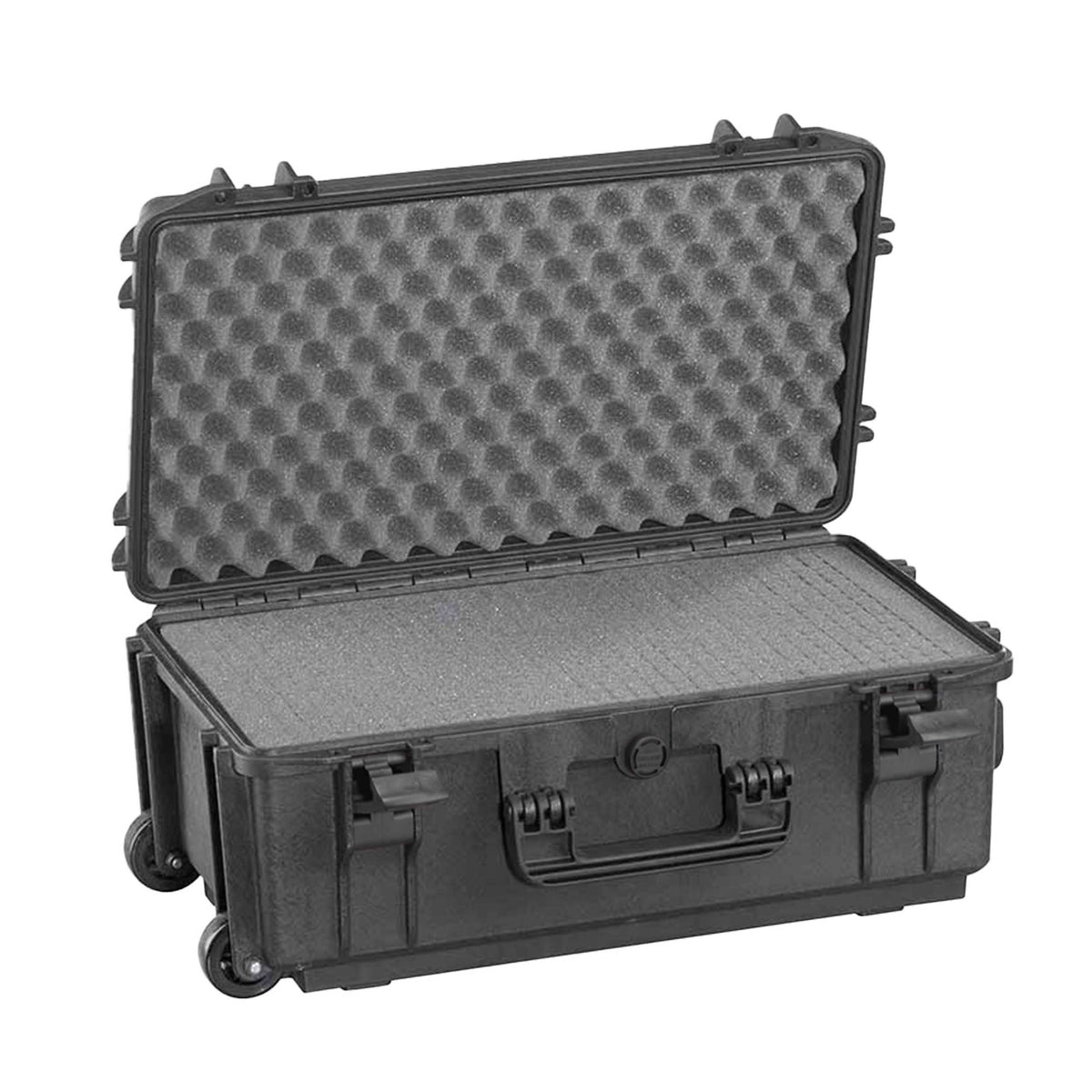

Panaro MAX520STR open: pick and pluck cubed foam in the base and convoluted foam in the lid, trolley wheels at the front corner

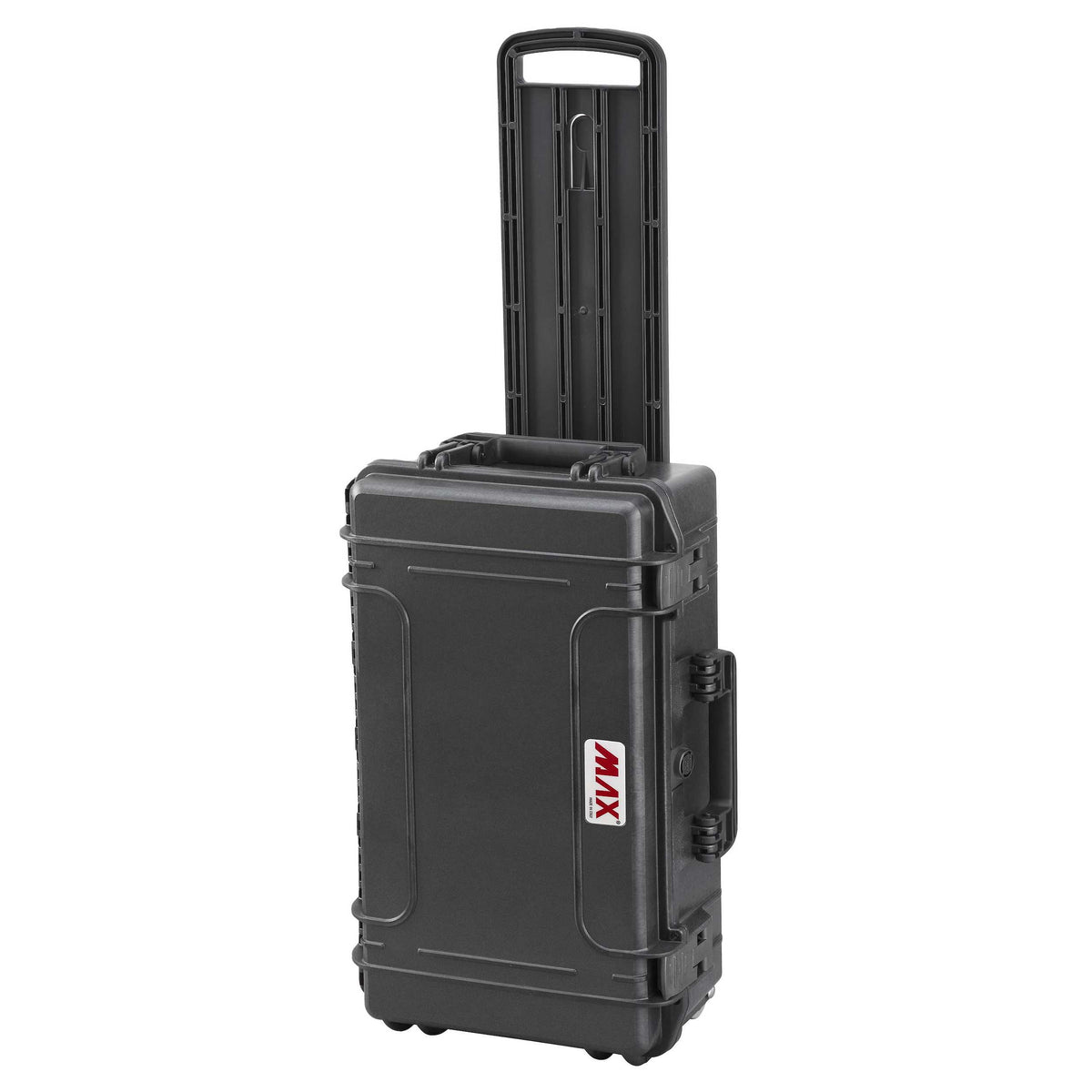

Panaro MAX520STR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo

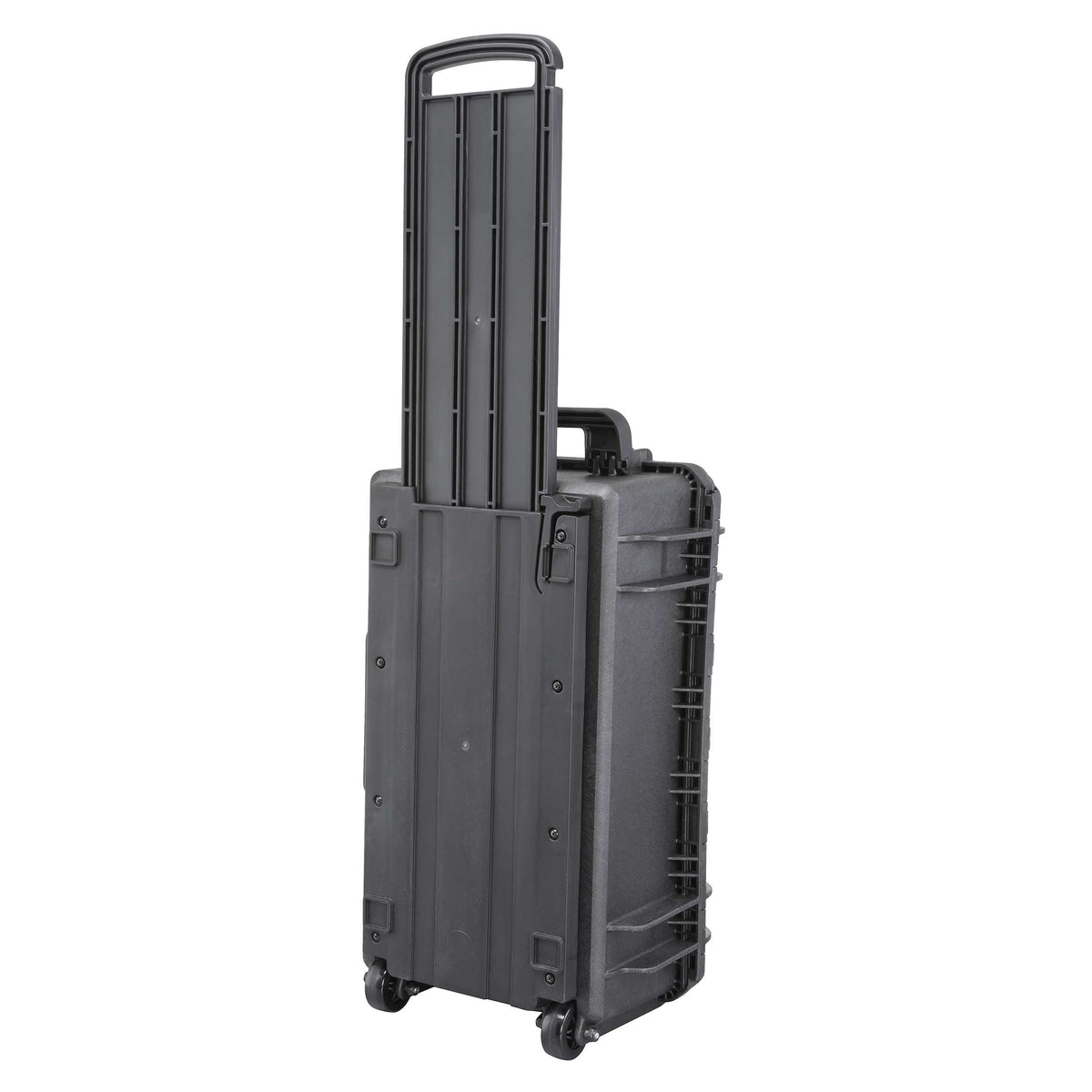

Panaro MAX520STR rear view standing upright, extendable handle raised in its rails and the two wheels at the base

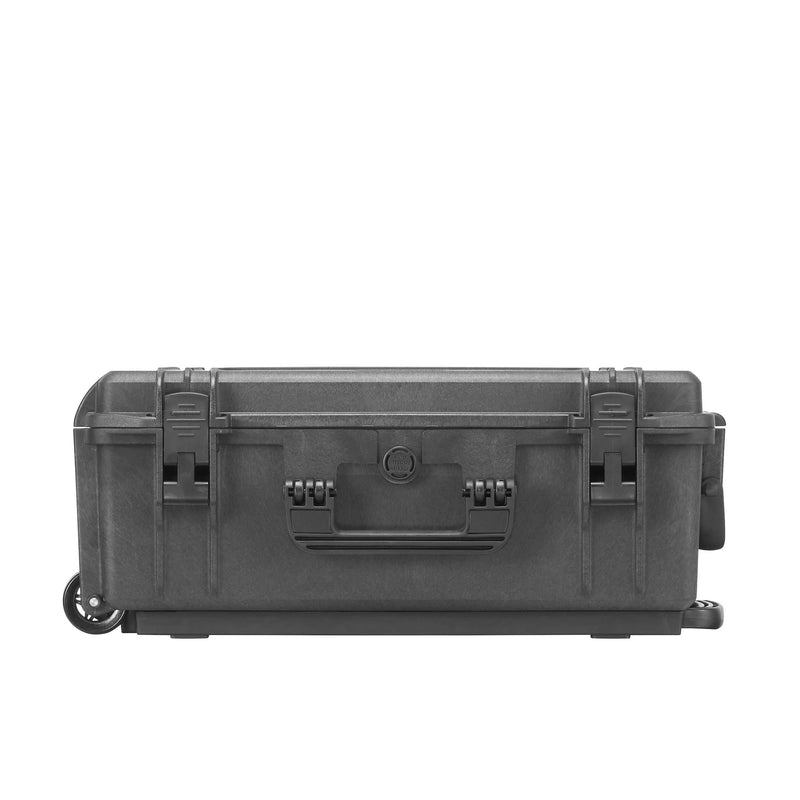

Panaro MAX520STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end

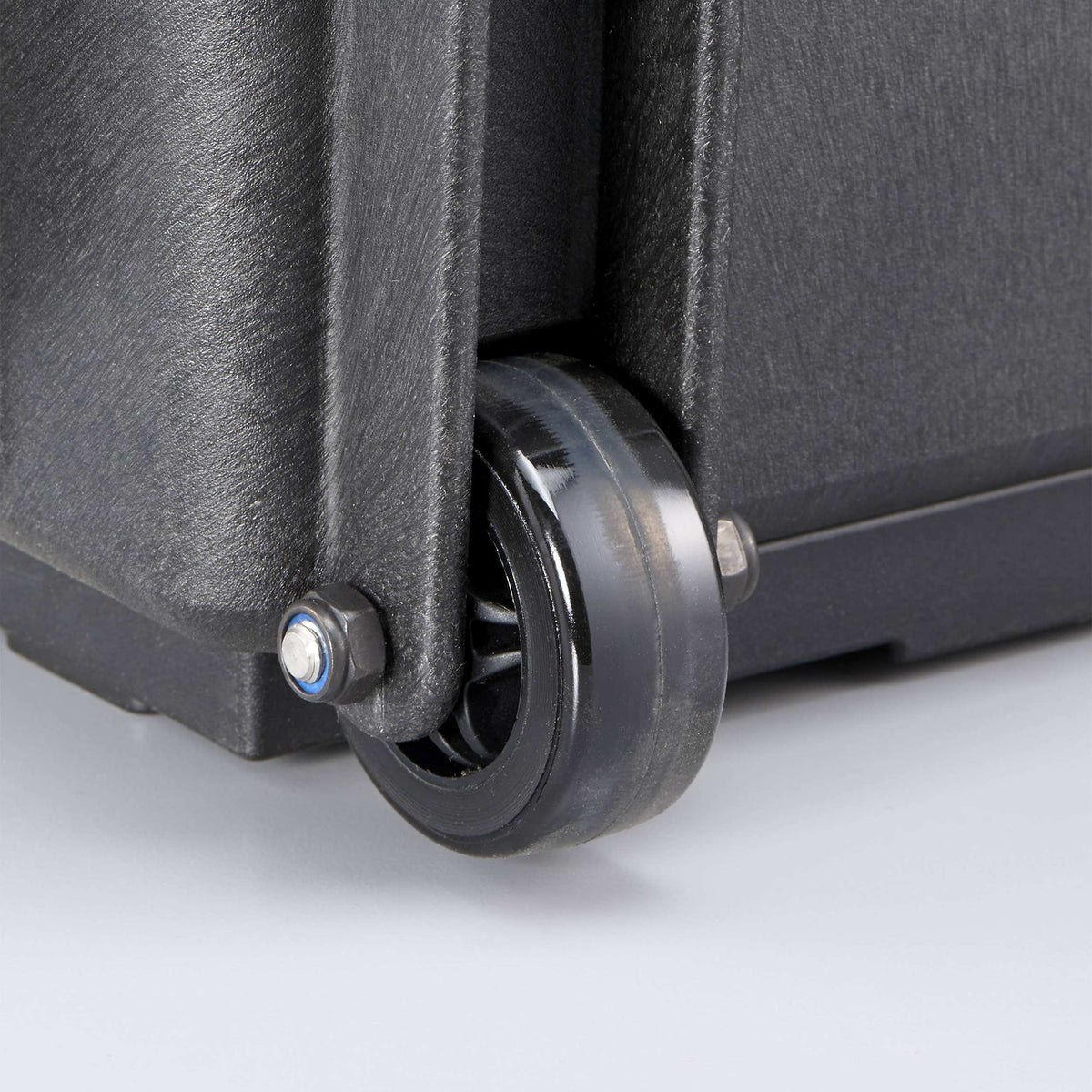

Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro MAX520STR open: pick and pluck cubed foam in the base and convoluted foam in the lid, trolley wheels at the front corner
Panaro MAX520STR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo
Panaro MAX520STR rear view standing upright, extendable handle raised in its rails and the two wheels at the base
Panaro MAX520STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro MAX520STR open: pick and pluck cubed foam in the base and convoluted foam in the lid, trolley wheels at the front corner
Panaro MAX520STR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo
Panaro MAX520STR rear view standing upright, extendable handle raised in its rails and the two wheels at the base
Panaro MAX520STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro

Panaro MAX520STR Waterproof Case with Cubed Foam and Trolley Black

$493.57
$493.57
RRP $530.72
Or 4 payments of $123.39 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX520STR

Custom Foam Layout That Rolls

The Panaro MAX520STR is the cubed foam MAX520 in its trolley shell: pick and pluck foam below, convoluted foam above, and a pull-up handle with wheels for longer distances.

Mark out your equipment and remove cubes until every piece sits in its own recess. Working space is 520 x 290 x 200 mm; Panaro quote this wheeled shell at 585 x 361 x 238 mm, 5.10 kg empty.

The MAX520TR is injection moulded in Italy from polypropylene, with its trolley parts in metal and plastic and wheels on stainless pins. Panaro list ATA 300 for air transport and IP67 for sealing on this shell.

A practical choice for technicians, drone pilots and AV crews moving between car park, lift and job site.

Compare trolley cases with the rest of our hard cases, or go to Panaro.

Often ordered together

  • Cubed foam base you shape by hand
  • Egg-crate foam in the lid
  • Extendable trolley handle and two wheels
  • Interior space of 30.16 litres
  • IP67 per Panaro test certificate
  • Stackable interlocking shell
  • AV and lighting kits
  • Drone systems on site
  • Instrument and sensor kits
  • Trade tools moved through buildings

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX520STR

Mega Code: PMMAX520STR

Configuration: Cubed foam, convoluted lid foam and trolley

Colour: Black

Internal Dimensions: 520 x 290 x 200 mm

External Dimensions: 585 x 361 x 238 mm (trolley version)

Lid + Base Depth: 45 + 155 mm

Case Weight (Panaro, MAX520TR): 5.10 kg

Capacity: 30.16 litres

Shell and Trolley: Polypropylene shell, metal and plastic trolley, stainless steel wheel pins

Certifications (Panaro, MAX520TR): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236520042

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Same foam and interior; the STR adds the wheels and extendable handle, which makes the shell 585 x 361 x 238 mm outside.
Panaro offer cubed foam kits for the MAX520, and the case also takes their divider and tool interiors.
It carries an IP67 certificate from Panaro, and a self-venting valve lets the pressure equalise so the lid still opens easily after a flight.
Panaro give 5.10 kg for the trolley shell; the foam adds to that.
Look under downloads on this page for the trolley datasheet, drawing and Panaro's test documents.
