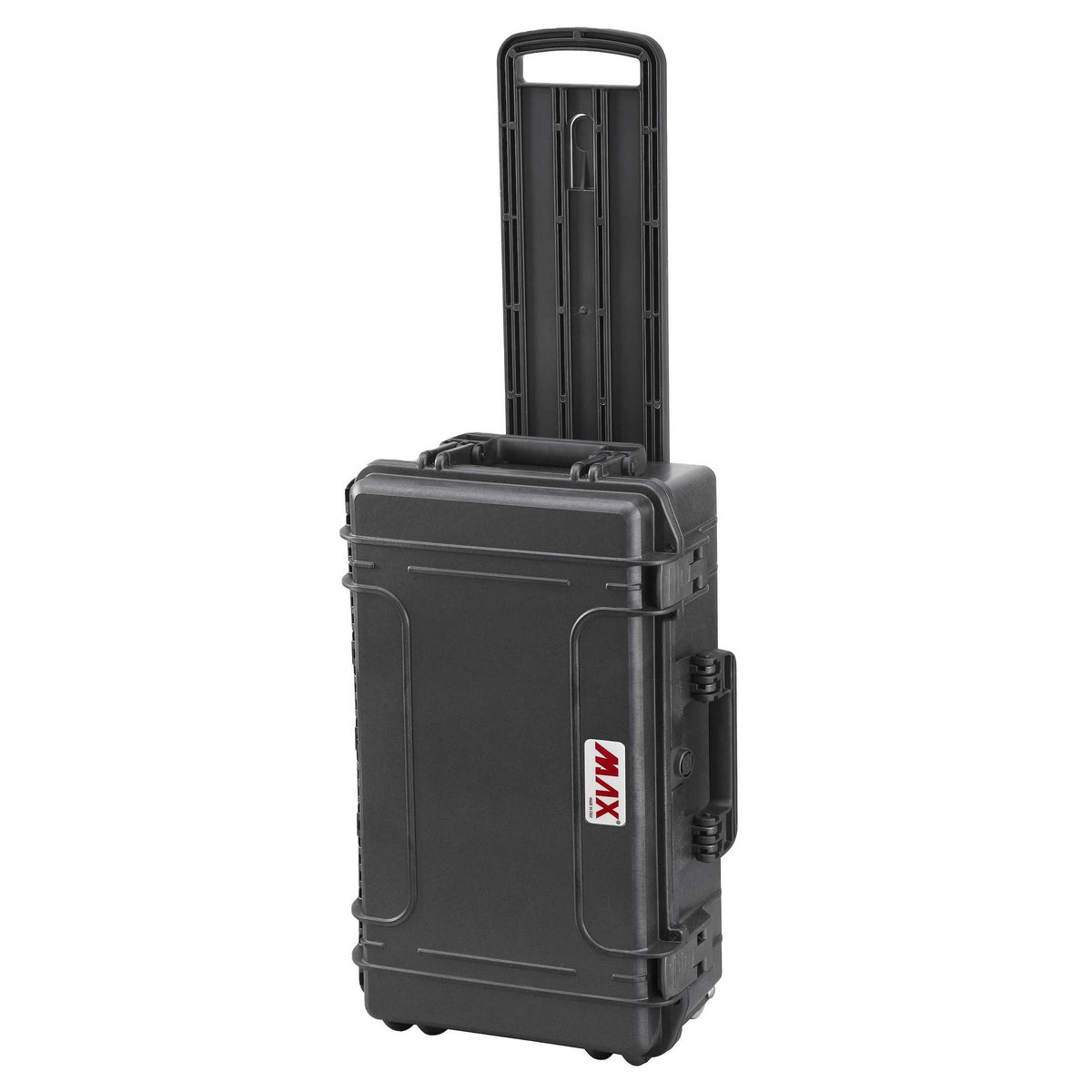

Panaro MAX520TR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo
Panaro MAX520TR open and empty, plain black base and lid interior with the wheels at the trolley end of the case
Panaro MAX520TR rear view standing upright, extendable handle raised in its rails and the two wheels at the base

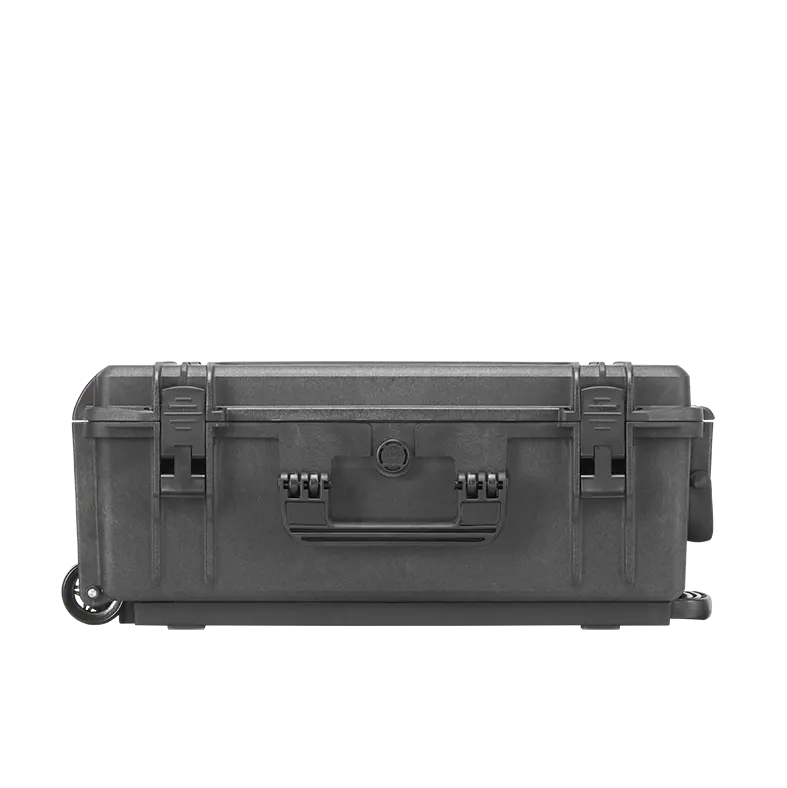

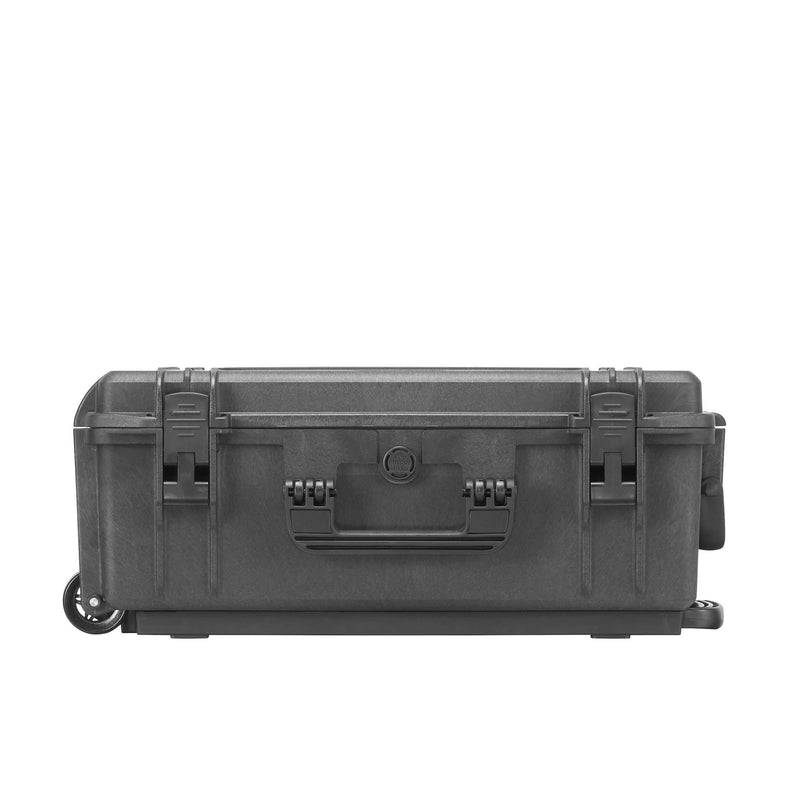

Panaro MAX520TR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end

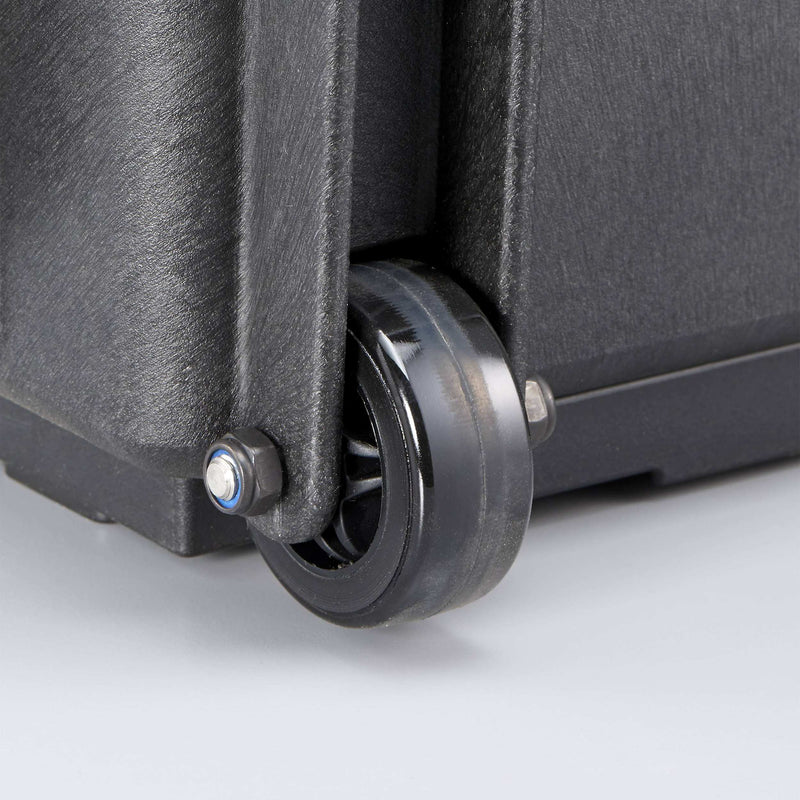

Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro MAX520TR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo
Panaro MAX520TR open and empty, plain black base and lid interior with the wheels at the trolley end of the case
Panaro MAX520TR rear view standing upright, extendable handle raised in its rails and the two wheels at the base
Panaro MAX520TR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro MAX520TR standing on its wheels with the extendable trolley handle pulled up, black MAX520 shell with red MAX logo
Panaro MAX520TR open and empty, plain black base and lid interior with the wheels at the trolley end of the case
Panaro MAX520TR rear view standing upright, extendable handle raised in its rails and the two wheels at the base
Panaro MAX520TR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Close-up of a trolley wheel on its stainless steel pin at the corner of a black MAX520 trolley case
Panaro

Panaro MAX520TR Waterproof Case with Trolley Black

$431.09
$431.09
RRP $461.15
Or 4 payments of $107.77 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX520TR

Blank Trolley Shell, Ready to Fit Out

The Panaro MAX520TR is the trolley version of the MAX520 supplied empty, for buyers who will fit their own foam, panels or custom inserts.

With nothing inside, all 520 x 290 x 200 mm is yours: 45 mm in the lid and 155 mm in the base. Extra fixing points in the shell help when you mount brackets or panels. Outside it measures 585 x 361 x 238 mm and Panaro give the weight as 5.10 kg.

One end carries the telescopic handle and the wheels. Panaro make the polypropylene shell in Italy; the downloadable files include its IP67 certificate and MIL-STD-810H report.

Integrators and workshops use empty shells for custom foam inlays, electronics and sample kits. Panaro also offer their own cubed foam, divider and tool interiors for this case.

Also see trolley cases and kits, protective cases and the Panaro brand page.

Often ordered together

  • Supplied empty, no foam or dividers
  • Extra fixing points in the shell
  • Extendable handle with two wheels
  • 45 mm lid and 155 mm base depth
  • Weight 5.10 kg, per Panaro
  • Shell certified IP67 by Panaro
  • Custom foam inlays by an integrator
  • Built-in electronics or control panels
  • Sample and demo kits for sales teams
  • Bulky items that need no padding

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX520TR

Mega Code: PMMAX520TR

Configuration: Empty case with trolley

Colour: Black

Internal Dimensions: 520 x 290 x 200 mm

External Dimensions: 585 x 361 x 238 mm (trolley version)

Lid + Base Depth: 45 + 155 mm

Case Weight (Panaro, MAX520TR): 5.10 kg

Capacity: 30.16 litres

Shell and Trolley: Polypropylene shell, metal and plastic trolley, stainless steel wheel pins

Certifications (Panaro, MAX520TR): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236520035

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. The MAX520TR is the empty trolley shell. For foam choose the MAX520STR or MAX520HDSTR; for dividers the MAX520CAMTR.
Panaro give 45 mm for the lid and 155 mm for the base, 200 mm in total.
Yes. Panaro say custom foam can be made on request, and a foam cutter can work from the dimensioned drawing in the downloads.
Yes. Panaro mould in holes for double padlocking.
Panaro's trolley datasheet, a dimensioned drawing and the IP67 and military test files for the MAX520TR.
