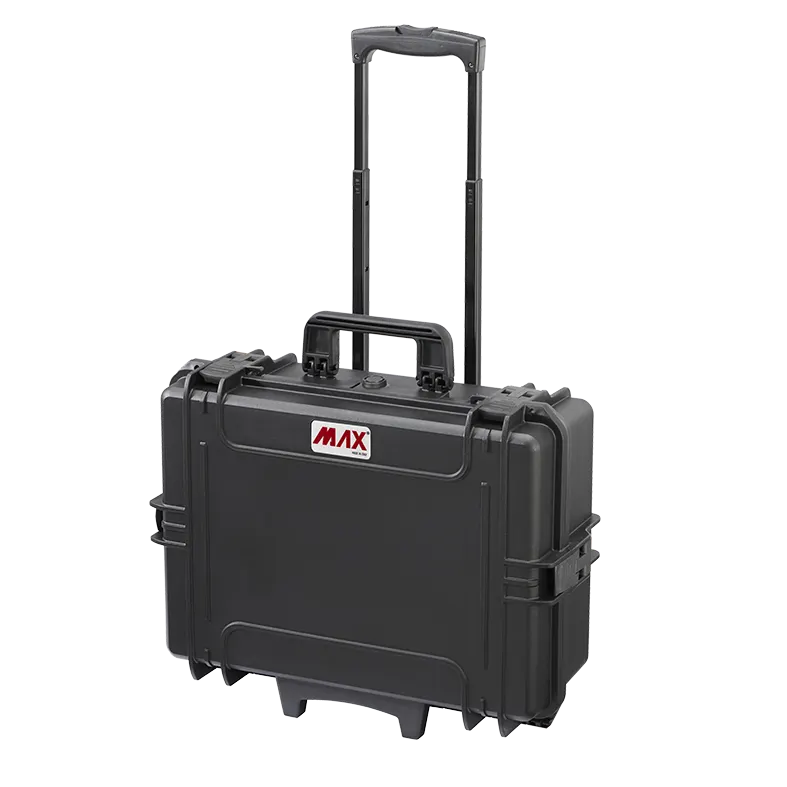

Black Panaro MAX505TR trolley case closed, telescopic handle extended above the carry handle, red MAX logo

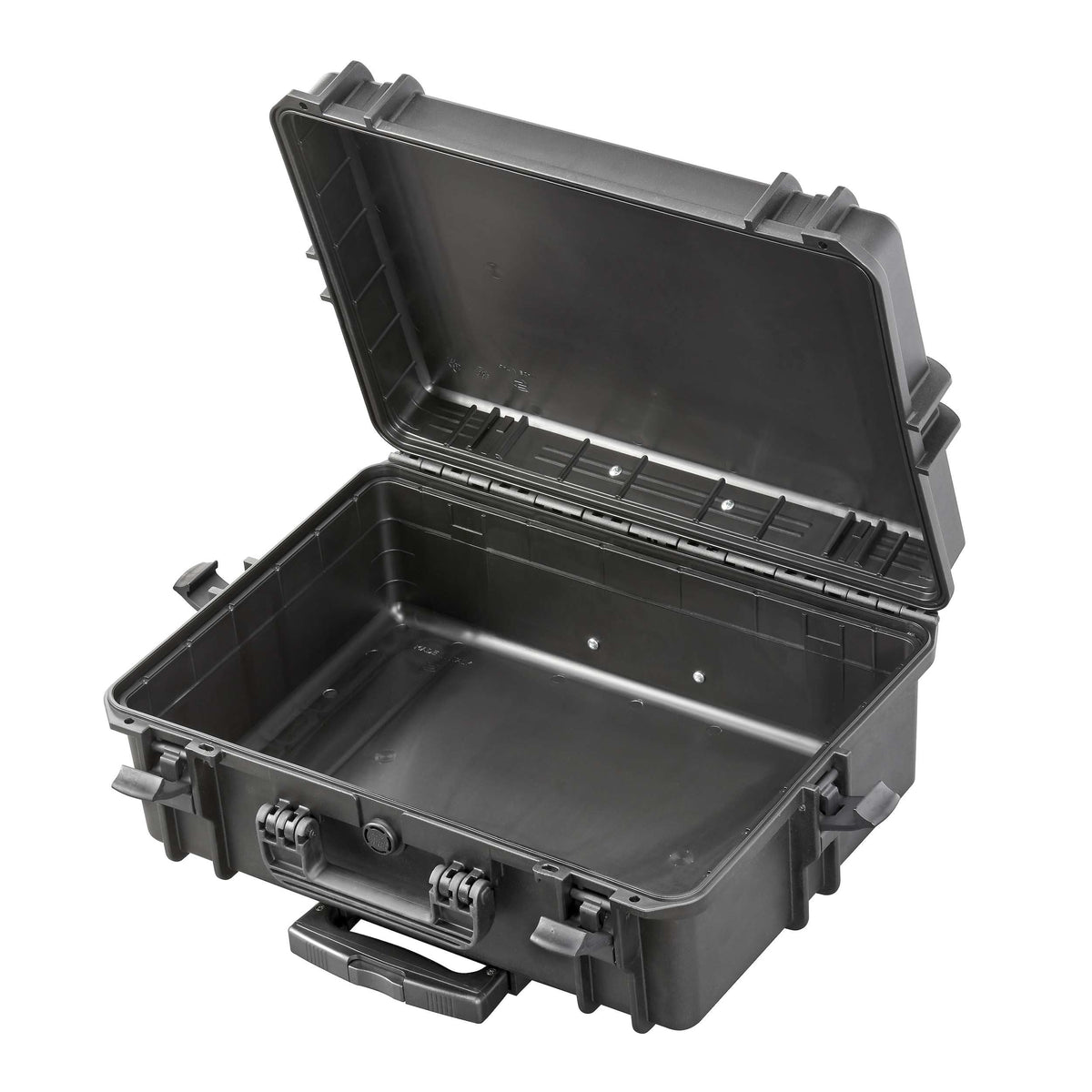

Black MAX505TR open and empty, showing the plain interior, lid seal channel and trolley handle base
Black MAX505TR seen from the latch side, handle base and wheels below the case

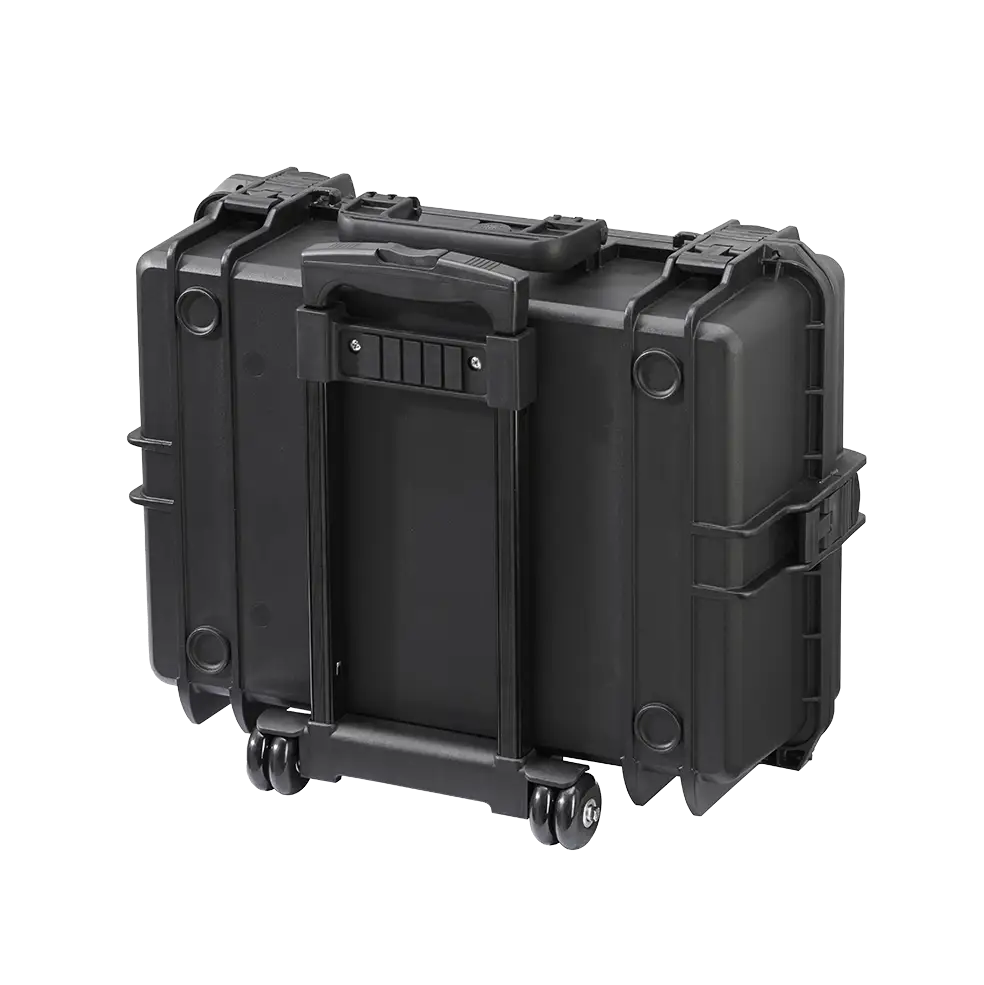

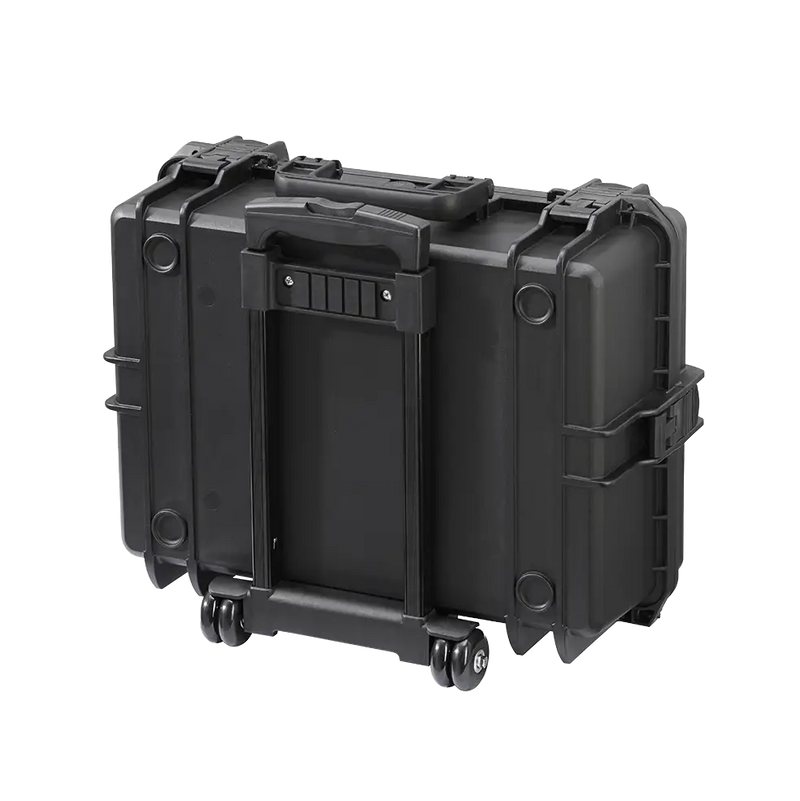

Rear of the black MAX505TR with the folded handle frame and two wheels
Black Panaro MAX505TR trolley case closed, telescopic handle extended above the carry handle, red MAX logo
Black MAX505TR open and empty, showing the plain interior, lid seal channel and trolley handle base
Black MAX505TR seen from the latch side, handle base and wheels below the case
Rear of the black MAX505TR with the folded handle frame and two wheels
Black Panaro MAX505TR trolley case closed, telescopic handle extended above the carry handle, red MAX logo
Black MAX505TR open and empty, showing the plain interior, lid seal channel and trolley handle base
Black MAX505TR seen from the latch side, handle base and wheels below the case
Rear of the black MAX505TR with the folded handle frame and two wheels
Panaro

Panaro MAX505TR Waterproof Case with Trolley Black

$436.70
$436.70
RRP $464.67
Or 4 payments of $109.18 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505TR

The Empty MAX505 On Wheels

The Panaro MAX505TR is the black MAX505 supplied empty, with wheels and an extendable handle, for loads you would rather pull than carry and fit out yourself.

An empty interior of 500 x 350 x 194 mm suits bulky or mixed contents: cables and adaptors, spare parts, sample ranges, or a custom insert. Panaro sell cubed foam, padded divider and tool storage kits for the MAX505 as accessories, and also cut custom foam on request. The case weighs 5 kg, per Panaro.

Panaro's drawing gives 555 x 445 x 258 mm closed and 970 mm with the handle pulled up; the wheels run on stainless steel pins. The TR page links Panaro's MIL-STD-810H report, and the TR datasheet shows IP67 with STANAG 4280 and DEF STAN 81-41. The shell has an O-ring seal, automatic valve, nylon latches and pins, and a space on the lid for screen printing. Made in Italy.

Other colours and fit-outs are in the Panaro range; also see trolleys and accessories and protective cases.

Often ordered together

  • Supplied empty, ready for your own insert
  • Wheels and telescopic handle
  • Inside 500 x 350 x 194 mm; 5 kg
  • 555 x 445 x 258 mm closed per Panaro
  • Space on the lid for screen printing
  • MIL-STD-810H report; IP67 on datasheet
  • Sales sample ranges on the road
  • Cables, adaptors and AV spares
  • Spare parts kits for field service
  • Custom foam inserts cut to your equipment
  • Document and evidence transport

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505TR

Mega Code: PMMAX505TR

Colour: Black

Configuration: TR, empty with trolley

External Dimensions: 555 x 445 x 258 mm (page and 2D drawing)

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 5 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley, stainless steel wheel pins

Height With Handle Extended: 970 mm (Panaro drawing)

Test Standards Listed by Panaro: MIL-STD-810H report on the page; datasheet also shows IP67, STANAG 4280, DEF STAN 81-41 (no ATA 300)

Pack Size: 1 case, sold each

EAN: 8011236505131

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No, the TR is supplied empty. Choose the MAX505STR for cubed foam or the MAX505TCTR for a tool storage system with the same trolley.
The datasheet prints the non-trolley size. Panaro's TR page and 2D drawing give 555 x 445 x 258 mm, which we use.
970 mm overall, per Panaro's TR drawing.
The page links a MIL-STD-810H report, and the TR datasheet shows the IP67 rating plus STANAG 4280 and DEF STAN 81-41. All are downloadable here.
Panaro offer screen printing and resin labels on the lid as a service. We do not print cases ourselves.
