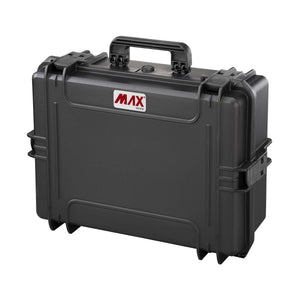

Panaro MAX505 black watertight case closed, three-quarter view with the red MAX badge, carry handle and two side latches

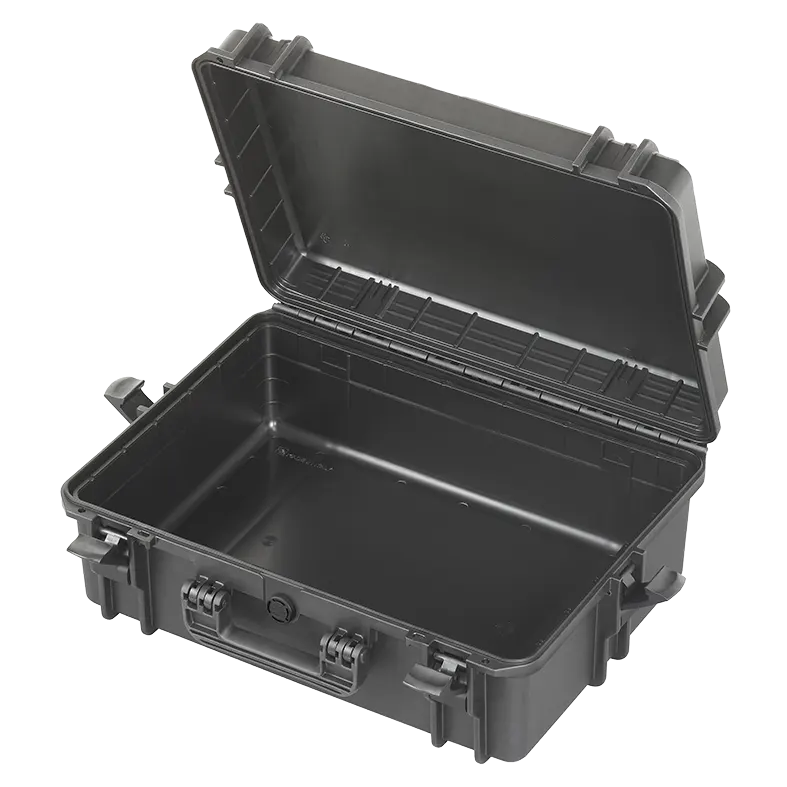

Panaro MAX505 black case open and empty, showing the plain moulded interior of the base and lid
Front view of the closed Panaro MAX505 in black, lid face with the MAX badge and the label recess
Panaro MAX505 black case seen edge-on from the handle side, showing the folding handle and two double throw latches
Close-up of the Panaro MAX automatic pressure release valve marked AUTO PRESSURE RELEASE, shown here on an orange MAX case
Panaro MAX505 black watertight case closed, three-quarter view with the red MAX badge, carry handle and two side latches
Panaro MAX505 black case open and empty, showing the plain moulded interior of the base and lid
Front view of the closed Panaro MAX505 in black, lid face with the MAX badge and the label recess
Panaro MAX505 black case seen edge-on from the handle side, showing the folding handle and two double throw latches
Close-up of the Panaro MAX automatic pressure release valve marked AUTO PRESSURE RELEASE, shown here on an orange MAX case
Panaro MAX505 black watertight case closed, three-quarter view with the red MAX badge, carry handle and two side latches
Panaro MAX505 black case open and empty, showing the plain moulded interior of the base and lid
Front view of the closed Panaro MAX505 in black, lid face with the MAX badge and the label recess
Panaro MAX505 black case seen edge-on from the handle side, showing the folding handle and two double throw latches
Close-up of the Panaro MAX automatic pressure release valve marked AUTO PRESSURE RELEASE, shown here on an orange MAX case
Panaro

Panaro MAX505 Waterproof Case Black

$299.97
$299.97
RRP $310.16
Or 4 payments of $74.99 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505

The Empty MAX505, Ready For Your Own Fit-Out

The Panaro MAX505 in black is the base case of the MAX505 family, supplied empty so you can add your own foam, dividers or a custom insert.

An empty shell suits buyers who already know what is going inside: a cut foam inlay made for one instrument, a stack of padded pouches, or bulk parts that just need a sealed box. Panaro also sell cubed foam, padded divider and lid organiser kits for this size, and the same case comes ready fitted as the MAX505S, MAX505CAM and MAX505CAMORG.

Usable space in the black MAX505 is 500 x 350 x 194 mm: 58 mm of it in the lid and 136 mm below, 33.95 litres in all, inside a 555 x 428 x 211 mm shell weighing 3.90 kg. Its O-ring lid seal, self-venting valve, two-stage latches, nylon-pinned hinges along the full length, strap and padlock holes and interlocking ribs are standard on every MAX. The empty MAX505 is tested by Panaro to MIL-STD-810, ATA 300, IP67 and, for military use, STANAG 4280 plus DEF STAN 81-41; it is made in Italy.

For fitted versions and other sizes, see the full Panaro range, more protective cases and defence and tactical gear.

Often ordered together

  • Supplied empty, black shell
  • Inside 500 x 350 x 194 mm, 33.95 litres
  • Watertight lid seal with automatic pressure valve
  • Double throw latches and padlock holes
  • Stackable interlocking body
  • Certified IP67 and ATA 300 by Panaro
  • Custom foam inlays for instruments and test gear
  • Sealed storage for spares and consumables
  • Vehicle and boat kits kept dry
  • Base case for Panaro foam or divider kits

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX505

Mega Code: PMMAX505

Configuration: Empty (no foam)

Colour: Black

Internal Size: 500 x 350 x 194 mm

Lid / Base Depth: 58 + 136 mm

External Size: 555 x 428 x 211 mm

Capacity: 33.95 L

Weight: 3.90 kg

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certificates Listed By Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1

Unit: Each

EAN: 8011236505100

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. This listing is the empty case. For pick and pluck foam choose the MAX505S, or the MAX505CAM for padded dividers.
Yes. The clear interior is 500 x 350 x 194 mm, with 58 mm of depth in the lid and 136 mm in the base, so measure your insert against those figures.
Panaro rate it IP67. A valve vents automatically, which helps the lid open normally after a flight or a big temperature swing.
Yes. The MAX505 datasheet, drawing, IP67, environmental, MIL-STD-810H and ATA 300 papers are attached to this listing as downloads.
