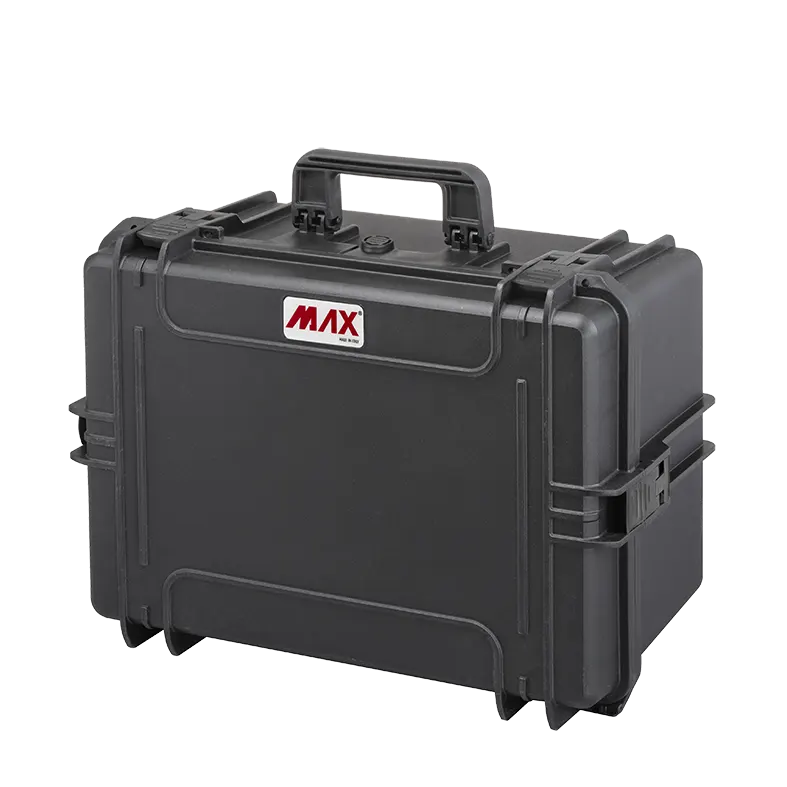

Panaro MAX505H280 black deep watertight case closed, angled view with the MAX badge and carry handle

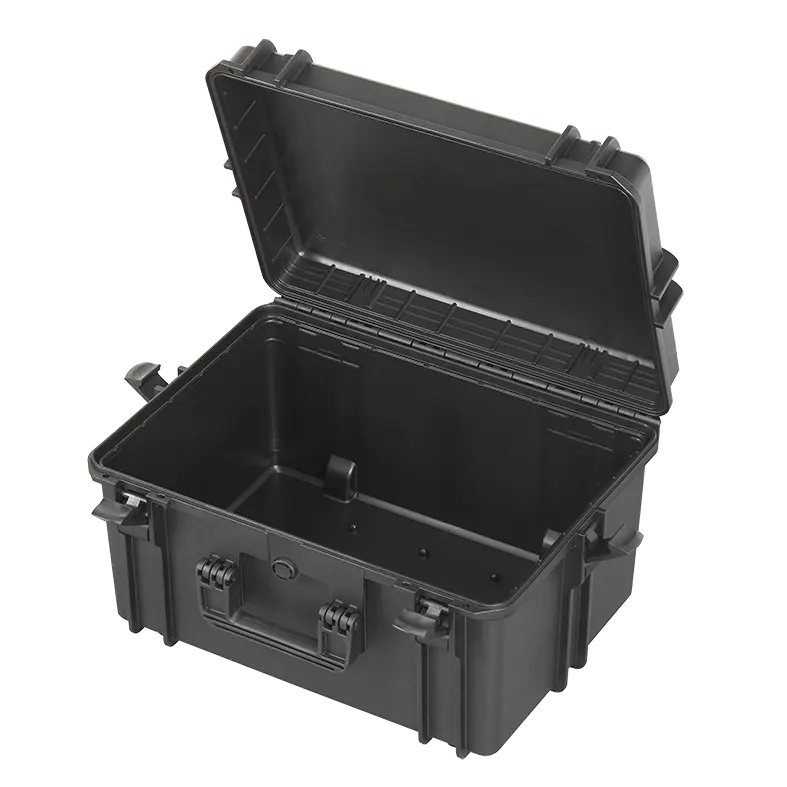

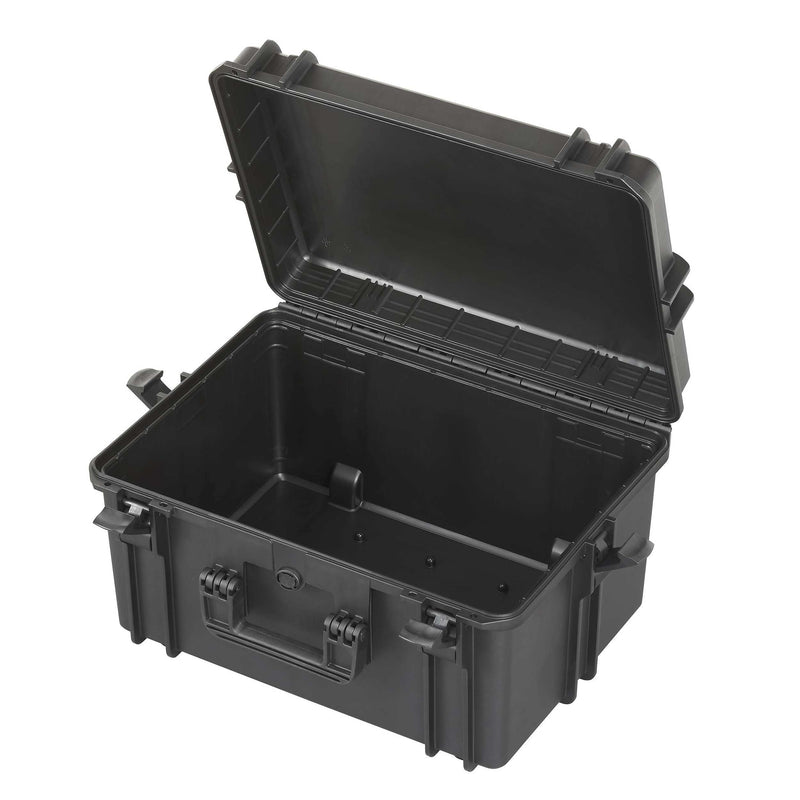

Panaro MAX505H280 open and empty, showing the deep base and shallow lid
Front edge of the closed Panaro MAX505H280 with folding handle and two double throw latches
Panaro MAX505H280 viewed straight on from the handle side showing the deep body and latches
Close-up of the Panaro MAX automatic pressure release valve, pictured on an orange case
Panaro MAX505H280 black deep watertight case closed, angled view with the MAX badge and carry handle
Panaro MAX505H280 open and empty, showing the deep base and shallow lid
Front edge of the closed Panaro MAX505H280 with folding handle and two double throw latches
Panaro MAX505H280 viewed straight on from the handle side showing the deep body and latches
Close-up of the Panaro MAX automatic pressure release valve, pictured on an orange case
Panaro MAX505H280 black deep watertight case closed, angled view with the MAX badge and carry handle
Panaro MAX505H280 open and empty, showing the deep base and shallow lid
Front edge of the closed Panaro MAX505H280 with folding handle and two double throw latches
Panaro MAX505H280 viewed straight on from the handle side showing the deep body and latches
Close-up of the Panaro MAX automatic pressure release valve, pictured on an orange case
Panaro

Panaro MAX505H280 Waterproof Case Black

$356.73
$356.73
RRP $371.89
Or 4 payments of $89.18 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505H280

The Deep MAX505 For Taller Equipment

The MAX505H280 keeps the MAX505 footprint but gives 280 mm of internal height, for 49 litres of space in an empty black watertight case.

Where the standard MAX505 has 194 mm inside, the H280 has 58 mm in the lid and 222 mm in the base. That depth suits upright items such as bottles of reagent, a stack of meters, a projector, a small generator controller or a camera with its lens mounted. Supplied empty, it can take a custom foam inlay or Panaro's own foam kit for this case.

Inside it is 500 x 350 x 280 mm; outside 555 x 428 x 306 mm. Panaro give the weight as 4.90 kg. Sealed lid, self-venting valve, two-stage latches, a hinge running the whole back edge, strap and padlock holes and stacking ribs are all part of the H280 shell. Panaro's test list for the deep MAX505H280 includes ATA 300 for aircraft, IP67, MIL-STD-810 and the two NATO and UK defence protocols, STANAG 4280 and DEF STAN 81-41; it is made in Italy.

Compare sizes in Panaro, or see protective cases and defence and tactical.

Often ordered together

  • Deep body: 280 mm inside
  • 49 litre capacity, supplied empty
  • Same 500 x 350 mm footprint as the MAX505
  • IP67 lid seal and pressure release valve
  • Weight 4.90 kg
  • Made in Italy, per Panaro
  • Tall test instruments and analysers
  • Projectors and AV units
  • Sample bottles and field kits
  • Custom foam inlays for bulky items

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX505H280

Mega Code: PMMAX505H280

Colour: Black

Configuration: Empty (no foam)

Internal Size: 500 x 350 x 280 mm

Lid / Base Depth: 58 + 222 mm

External Size: 555 x 428 x 306 mm

Capacity: 49 L

Weight: 4.90 kg

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certificates Listed By Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1

Unit: Each

EAN: 8011236505230

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

The footprint is the same, but the internal height is 280 mm instead of 194 mm, giving 49 litres instead of 33.95.
No, it is empty. The MAX505H280S has cubed foam and the MAX505H280HDS has high density cubed foam.
Panaro make a trolley handle kit for the MAX505H280, and we list it separately. The ready made trolley version is the MAX505H280TR.
Yes. The H280 datasheet, 2D drawing, IP67, environmental and MIL-STD-810H certificates and the ATA 300 paper are attached.
