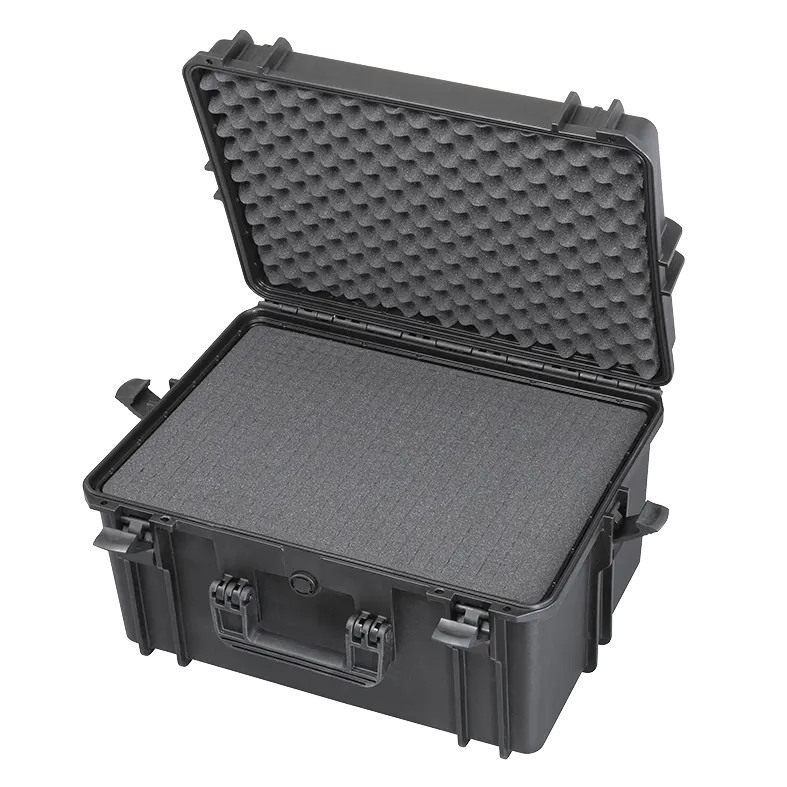

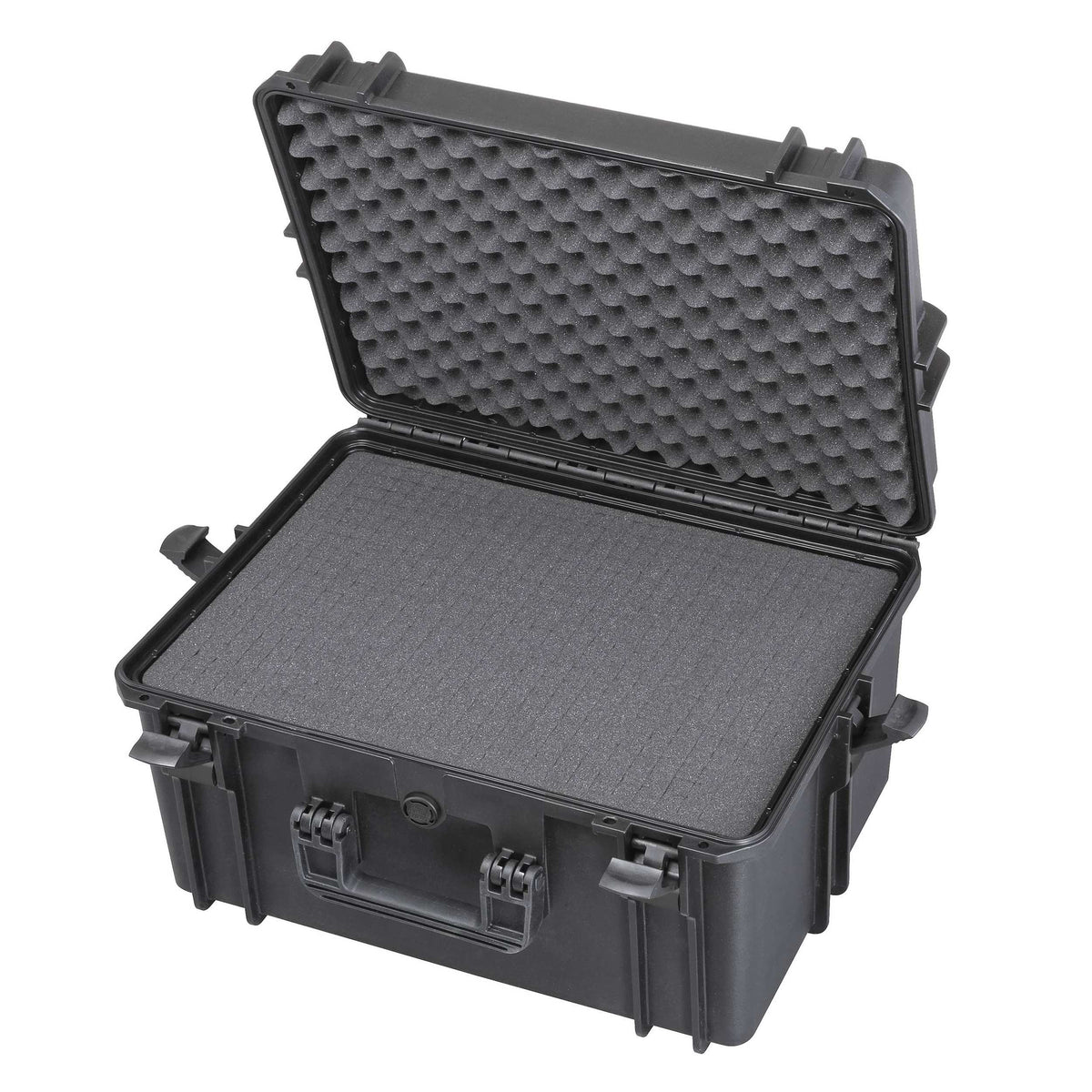

Panaro MAX505H280S open with grey pick and pluck cubed foam in the deep base and convoluted foam in the lid

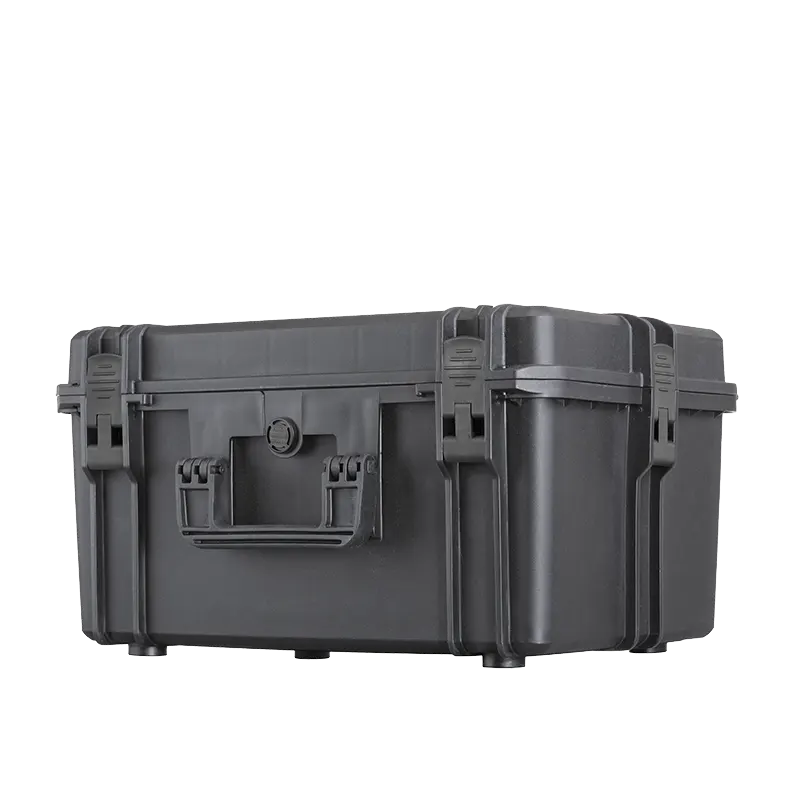

Front of the closed Panaro MAX505H280 showing the folding carry handle and two latches
Panaro MAX505H280 from the handle side, showing the full depth of the case
Panaro MAX automatic pressure release valve in close-up, on an orange shell
Closed black Panaro MAX505H280 deep case, the shell used for the MAX505H280S, with MAX badge and handle
Panaro MAX505H280S open with grey pick and pluck cubed foam in the deep base and convoluted foam in the lid
Front of the closed Panaro MAX505H280 showing the folding carry handle and two latches
Panaro MAX505H280 from the handle side, showing the full depth of the case
Panaro MAX automatic pressure release valve in close-up, on an orange shell
Closed black Panaro MAX505H280 deep case, the shell used for the MAX505H280S, with MAX badge and handle
Panaro MAX505H280S open with grey pick and pluck cubed foam in the deep base and convoluted foam in the lid
Front of the closed Panaro MAX505H280 showing the folding carry handle and two latches
Panaro MAX505H280 from the handle side, showing the full depth of the case
Panaro MAX automatic pressure release valve in close-up, on an orange shell
Panaro

Panaro MAX505H280S Waterproof Case with Cubed Foam Black

$446.71
$446.71
RRP $472.11
Or 4 payments of $111.68 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505H280S

Pick And Pluck Foam In The Deep MAX505

The MAX505H280S is the deep MAX505H280 shipped full of Panaro's S foam: pre-cut cubes below and an egg crate layer above, ready to be plucked to the shape of your equipment.

With Panaro's pick and pluck S set you pull out cubes to make a pocket for each item, while the lid layer presses down on top. Their replacement kit for this case, FOAMKIT MAX505H280-AC, is made up, by Panaro's listing, of one 50 mm base sheet, three cubed 55 mm sheets and one 50 mm egg crate sheet for the lid, giving room for tall objects or two tiers.

Before foam, the H280S offers 49 litres in a 500 x 350 x 280 mm interior, and the outside measures 555 x 428 x 306 mm; Panaro weigh it at 5.60 kg ready to use. Standard MAX hardware applies: gasket lid, automatic vent, latches and padlock holes. Panaro hold IP67 and ATA 300 certificates for the MAX505H280S, plus MIL-STD-810 and STANAG 4280 / DEF STAN 81-41 test reports; the case is built in Italy.

Foam cases for cameras sit in photography and AV; protective cases and Panaro list the rest.

Often ordered together

  • Pick and pluck cubed foam below
  • Egg crate foam layer in the lid
  • Deep 49 litre MAX505H280 shell
  • Inside 500 x 350 x 280 mm
  • 5.60 kg with foam
  • Panaro certify IP67 and ATA 300
  • Cameras with lenses mounted
  • Handheld instruments and probes
  • Drones with tall controllers
  • Fragile parts shipped by courier or air

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX505H280S

Mega Code: PMMAX505H280S

Colour: Black

Configuration: S: cubed foam in the base, convoluted foam in the lid

Internal Size: 500 x 350 x 280 mm

Lid / Base Depth: 58 + 222 mm

External Size: 555 x 428 x 306 mm

Capacity: 49 L

Weight: 5.60 kg

Foam: Panaro FOAMKIT MAX505H280-AC lists 1 x 50 mm base, 3 x 55 mm cubed, 1 x 50 mm convoluted

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certificates Listed By Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1

Unit: Each

EAN: 8011236505247

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Mark out your items on the top layer, then pull out the pre-cut cubes inside each outline. Remove a few cubes at a time and test the fit as you go.
Panaro make FOAMKIT MAX505H280-AC for this case, whose sheets Panaro list as 50 mm for the base, 55 mm for each of three cubed layers and 50 mm for the lid.
Panaro use standard cubed foam in the S and high density cubed foam in the HDS. The HDS weighs 6.98 kg against 5.60 kg for the S.
Panaro's S and HDS datasheet for the H280, the 2D drawing and the H280 IP67, environmental, MIL-STD-810H and ATA 300 papers.
