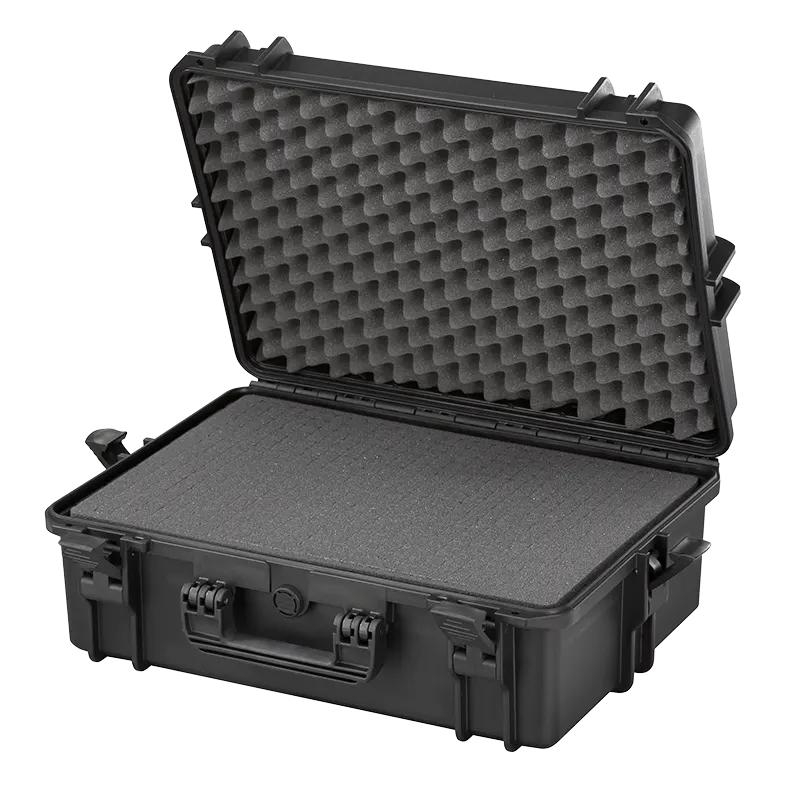

Panaro MAX505S black waterproof case open, grey pick and pluck cubed foam in the base and egg crate foam lining the lid
Black Panaro MAX505 case closed, three quarter view with carry handle up, red MAX logo and two latches on the side

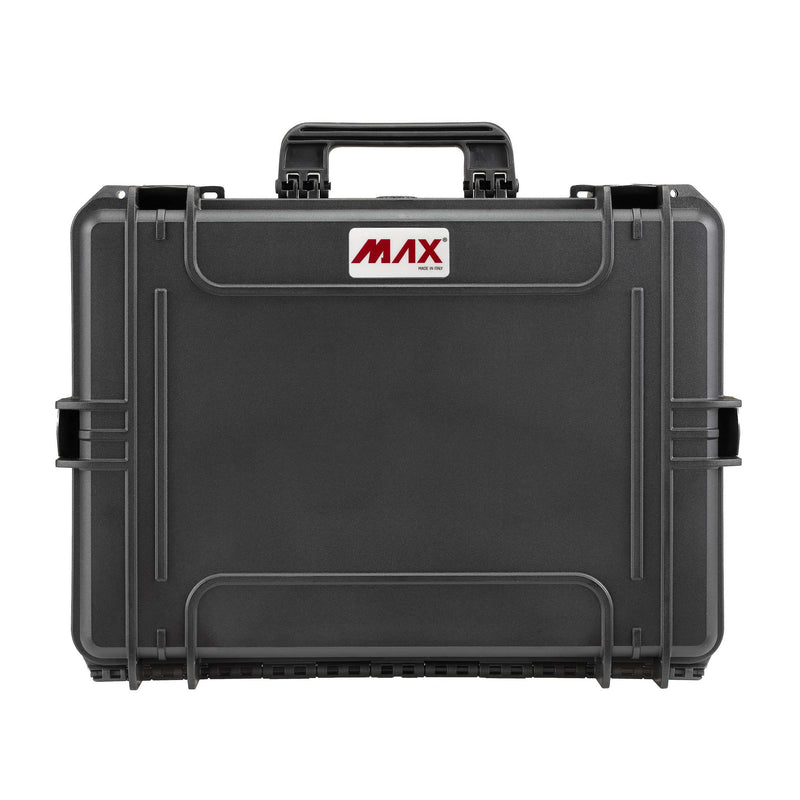

Front of the closed black MAX505 shell showing the red MAX logo, lid outline and fold-down carry handle
Black MAX505 case viewed from the front edge, two double throw latches either side of the handle and the pressure valve
Panaro MAX505S black waterproof case open, grey pick and pluck cubed foam in the base and egg crate foam lining the lid
Black Panaro MAX505 case closed, three quarter view with carry handle up, red MAX logo and two latches on the side
Front of the closed black MAX505 shell showing the red MAX logo, lid outline and fold-down carry handle
Black MAX505 case viewed from the front edge, two double throw latches either side of the handle and the pressure valve
Panaro MAX505S black waterproof case open, grey pick and pluck cubed foam in the base and egg crate foam lining the lid
Black Panaro MAX505 case closed, three quarter view with carry handle up, red MAX logo and two latches on the side
Front of the closed black MAX505 shell showing the red MAX logo, lid outline and fold-down carry handle
Black MAX505 case viewed from the front edge, two double throw latches either side of the handle and the pressure valve
Panaro

Panaro MAX505S Waterproof Case with Cubed Foam Black

$366.96
$366.96
RRP $384.78
Or 4 payments of $91.74 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505S

Cut-To-Fit Foam In The Black MAX505

The Panaro MAX505S is the black MAX505 watertight case supplied with pick and pluck cubed foam, so you can pull out a cavity shaped to your camera, meter or handset.

Panaro fill the 500 x 350 x 194 mm interior with a 20 mm base pad, two 55 mm layers of pre-scored cubes and a convoluted 50 mm lid pad. Trace your gear on the top layer, pull out every cube within the outline, and go one or both layers deep to suit its height. Panaro give the finished case as 4.44 kg.

The polypropylene shell seals on a polymer O-ring, the nylon latches are double throw, and an automatic valve releases the pressure difference after a flight or a climb so the lid opens easily. Panaro test this model for IP67 sealing and to NATO's STANAG 4280 and the UK's DEF STAN 81-41 protocols, with separate reports for MIL-STD-810H and ATA 300; the datasheet, drawing and every report are downloadable on this page. It is made in Italy.

Other sizes and fit-outs sit in our Panaro range. For camera kits, see photography and AV; for field equipment, defence and tactical and the wider protective case list.

Often ordered together

  • Pick and pluck foam: two 55 mm cubed layers
  • Convoluted 50 mm pad holds items down from the lid
  • Interior 500 x 350 x 194 mm, 33.95 L
  • Automatic pressure release valve
  • O-ring seal under nylon double throw latches
  • Tested to IP67, STANAG 4280, MIL-STD-810H and ATA 300 (Panaro)
  • Made in Italy by Panaro
  • Mirrorless and DSLR bodies with two or three lenses
  • Handheld test meters, probes and leads
  • Two-way radios with spare batteries
  • Small drones with controller and props
  • Presentation samples that must arrive unmarked

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505S

Mega Code: PMMAX505S

Colour: Black

Configuration: S, pick and pluck cubed foam

External Dimensions: 555 x 428 x 211 mm

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 4.44 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Foam (Panaro sheet): 20 mm base, 2 x 55 mm cubed layers, 50 mm convoluted lid

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1 case, sold each

EAN: 8011236505209

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Lay the item on the top cubed layer, trace around it, then pull out the cubes inside the outline. Remove the matching cubes from the second layer if the item is taller than 55 mm.
A 20 mm base pad, two 55 mm layers of cubed foam and a 50 mm convoluted pad fixed in the lid, per Panaro's foam sheet for the MAX505.
Same black shell and foam layout. HDS is Panaro's high density cubed foam; their datasheet gives 4.44 kg for the S and 5.28 kg for the HDS.
The datasheet, 2D drawing, IP67 certificate, STANAG 4280 and DEF STAN 81-41 report, MIL-STD-810H report, ATA 300 report, a fluid and fungus declaration and the foam sheet are attached on this page.
Panaro give the outside as 555 x 428 x 211 mm. Cabin limits differ by airline, so check yours against those figures before you fly.
