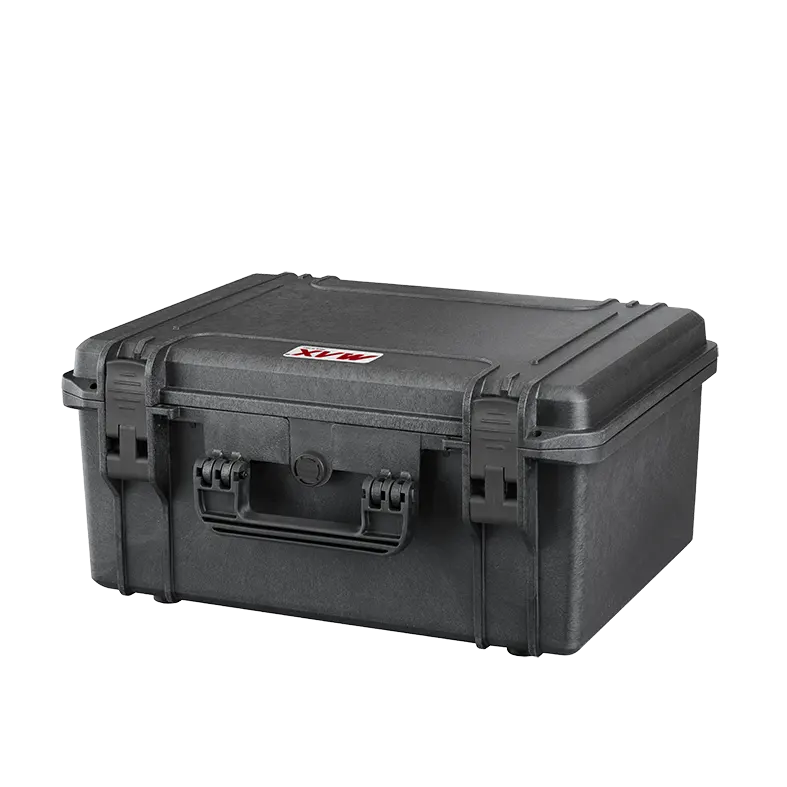

Black Panaro MAX465H220 deep case closed, three quarter view, the shell of the MAX465H220S

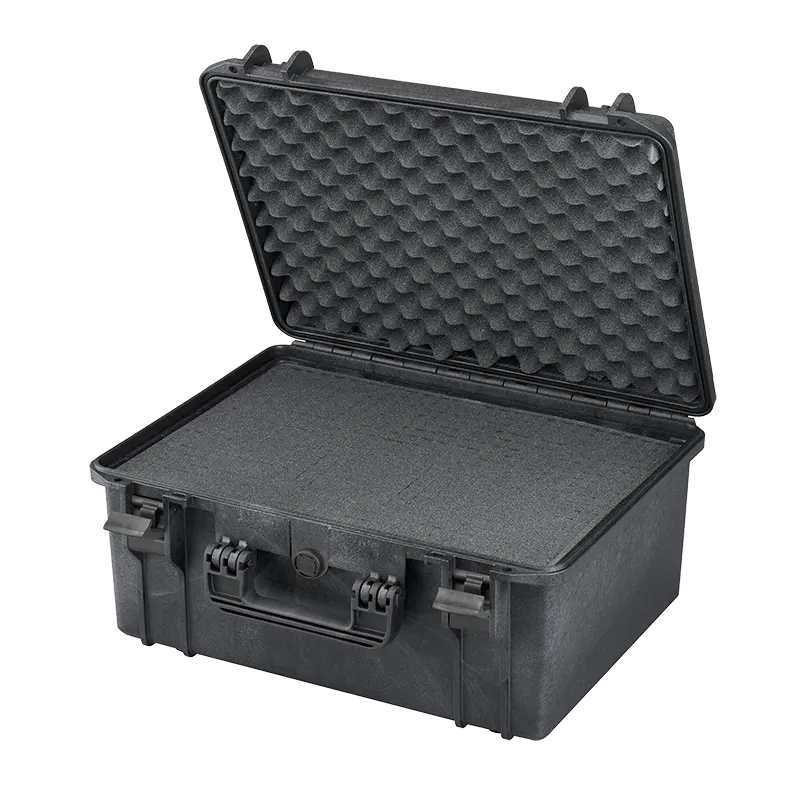

MAX465H220S open with deep grey cubed pick and pluck foam in the base and convoluted foam in the lid
Front view of a black MAX465 lid with handle, latches and red MAX badge
MAX465H220 lying flat with the latch side forward, showing the shell depth
Black Panaro MAX465H220 deep case closed, three quarter view, the shell of the MAX465H220S
MAX465H220S open with deep grey cubed pick and pluck foam in the base and convoluted foam in the lid
Front view of a black MAX465 lid with handle, latches and red MAX badge
MAX465H220 lying flat with the latch side forward, showing the shell depth
Black Panaro MAX465H220 deep case closed, three quarter view, the shell of the MAX465H220S
MAX465H220S open with deep grey cubed pick and pluck foam in the base and convoluted foam in the lid
Front view of a black MAX465 lid with handle, latches and red MAX badge
MAX465H220 lying flat with the latch side forward, showing the shell depth
Panaro

Panaro MAX465H220S Waterproof Case with Cubed Foam Black

$372.24
$372.24
RRP $389.19
Or 4 payments of $93.06 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX465H220S

MAX465H220S: Deep Case With Three Layers of Cubed Foam

The MAX465H220S is the 220 mm deep MAX465 fitted with Panaro's cubed foam: three pluckable layers in the base and a convoluted pad in the lid.

According to Panaro's foam sheet, the H220 S stacks three 50 mm cube layers on a 20 mm base sheet, with a 35 mm convoluted pad in the lid. Plucking through all three layers lets you bury tall items such as a camera body with a mounted lens, a flash kit, a handheld analyser or a small drone.

The shell is 502 x 415 x 246 mm outside and 465 x 335 x 220 mm inside. Weight is 3.96 kg on Panaro's datasheet and 3.94 kg on the product page. You can download Panaro's IP67 certificate, their MIL-STD-810H and ATA 300 Cat. 1 certificates and the environmental report covering STANAG 4280 and DEF STAN 81-41 for the MAX465H220 from this page. Made in Italy.

The empty, high density and trolley versions are in the Panaro section. For camera kits see photography and AV, or compare other protective cases.

Often ordered together

  • Deep shell with three cube layers
  • Each cube layer 50 mm, on a 20 mm base
  • 35 mm egg-crate lid pad
  • Datasheet weight 3.96 kg
  • IP67 certificate from Panaro
  • Made in Italy
  • Cameras with lenses mounted
  • Flash and lighting kits
  • Handheld analysers and detectors
  • Small drones
  • Tall instruments that stand upright

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro, MAX Cases range

MPN: MAX465H220S

Mega Code: PMMAX465H220S

Configuration: S, cubed foam (pick and pluck) with convoluted lid foam

Colour: Black

Internal Dimensions: 465 x 335 x 220 mm (lid 40 + base 180 mm)

External Dimensions: 502 x 415 x 246 mm

Capacity: 34.27 L

Weight: 3.96 kg (Panaro datasheet); 3.94 kg on the product page

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Certificates: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1 (per Panaro)

Foam: 20 mm base, 3 x 50 mm cubed, 35 mm convoluted lid (Panaro)

Made In: Italy (per Panaro)

Unit: Each

EAN: 8011236465046

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Yes. Pluck one, two or all three cube layers in each area to suit items of different heights.
Yes, the MAX465H220STR: identical foam, plus a trolley with wheels and a pull up handle.
The MAX465H220HDS uses the same layout in Panaro's denser foam.
Panaro's datasheet says 3.96 kg and their web page says 3.94 kg, so we show both.
