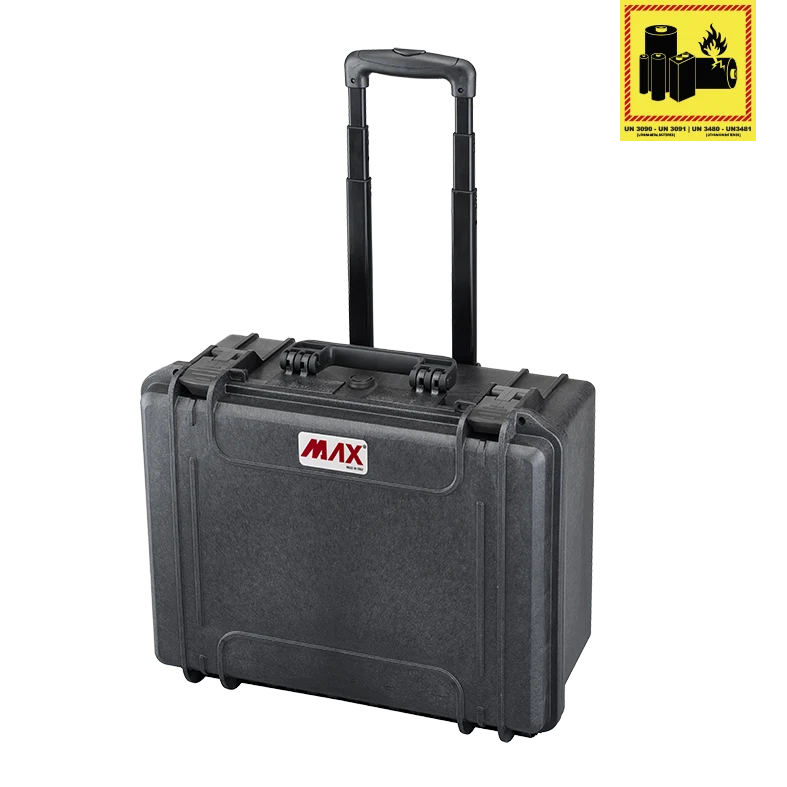

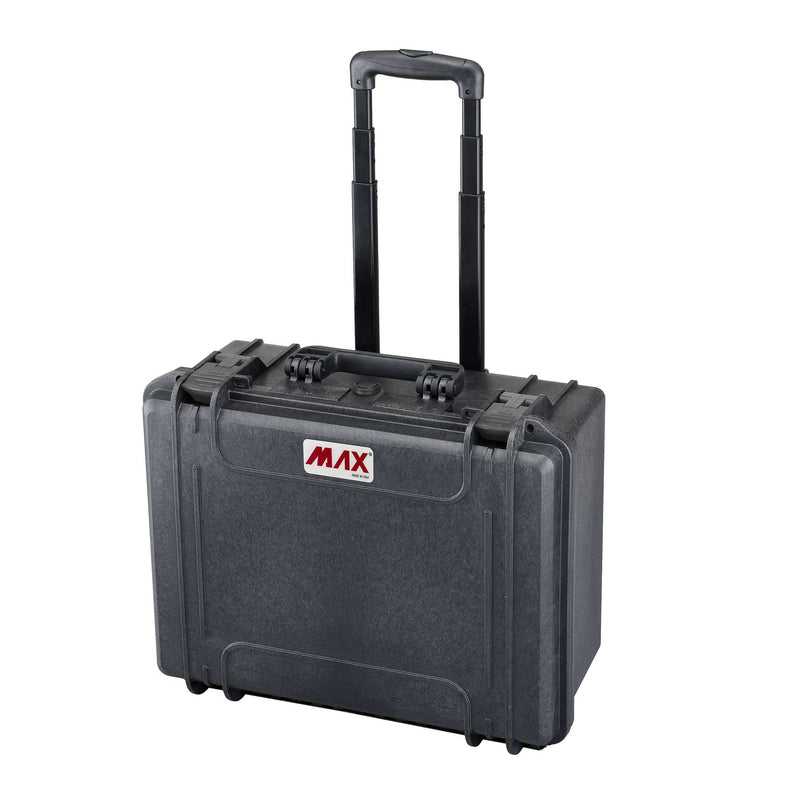

Black Panaro MAX465H220 trolley case closed with the extendable handle raised, the shell of the MAX465H220STR
MAX465H220STR open with deep grey cubed foam in the base, convoluted foam in the lid and the trolley handle at the front
MAX465H220 trolley case lying flat, latch side forward, handle stowed

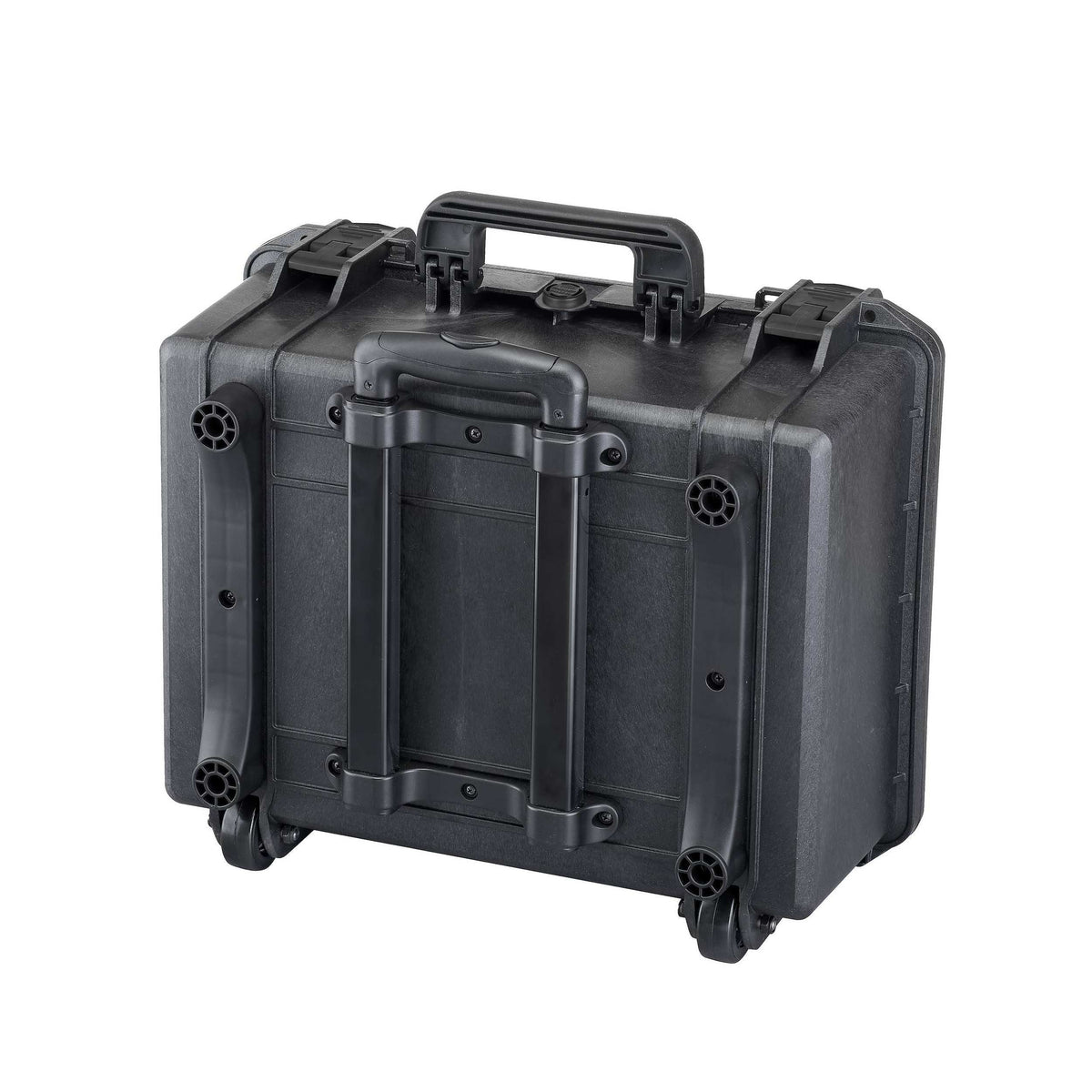

Back of the MAX465H220 trolley case showing the trolley frame and wheels

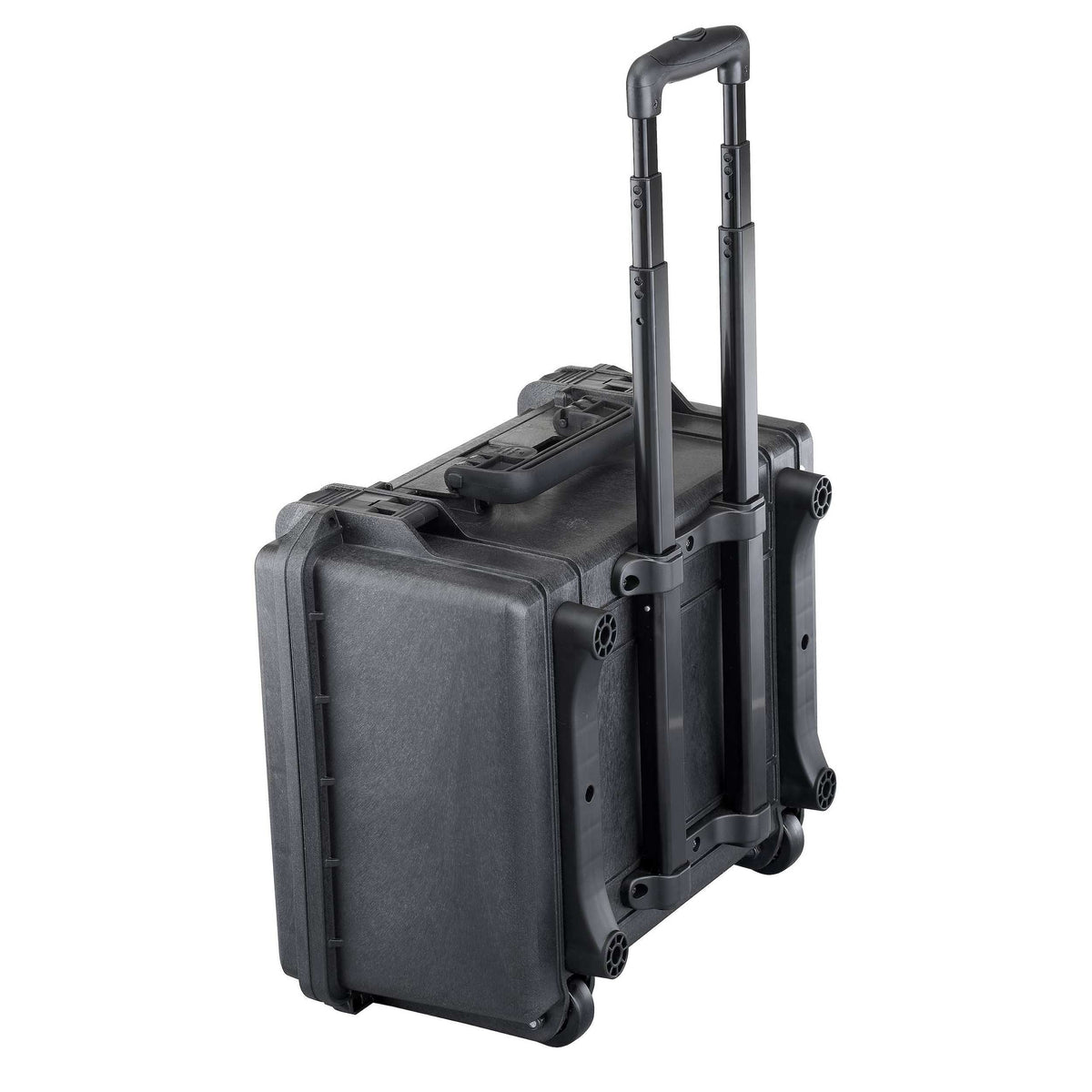

MAX465H220 trolley case from the rear corner with the handle extended
Side view of the MAX465H220 trolley case lying flat with the handle stowed
Black Panaro MAX465H220 trolley case closed with the extendable handle raised, the shell of the MAX465H220STR
MAX465H220STR open with deep grey cubed foam in the base, convoluted foam in the lid and the trolley handle at the front
MAX465H220 trolley case lying flat, latch side forward, handle stowed
Back of the MAX465H220 trolley case showing the trolley frame and wheels
MAX465H220 trolley case from the rear corner with the handle extended
Side view of the MAX465H220 trolley case lying flat with the handle stowed
Black Panaro MAX465H220 trolley case closed with the extendable handle raised, the shell of the MAX465H220STR
MAX465H220STR open with deep grey cubed foam in the base, convoluted foam in the lid and the trolley handle at the front
MAX465H220 trolley case lying flat, latch side forward, handle stowed
Back of the MAX465H220 trolley case showing the trolley frame and wheels
MAX465H220 trolley case from the rear corner with the handle extended
Side view of the MAX465H220 trolley case lying flat with the handle stowed
Panaro

Panaro MAX465H220STR Waterproof Case with Cubed Foam and Trolley Black

$549.23
$549.23
RRP $584.73
Or 4 payments of $137.31 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX465H220STR

MAX465H220STR: Foam Fitted Trolley Case

The MAX465H220STR is the wheeled MAX465H220 with Panaro's standard cubed foam inside, for camera, AV and instrument kits that travel on foot through terminals and venues.

Panaro's STR page pairs pick and pluck cubes in the base with convoluted foam under the lid, then adds wheels and an extendable handle. Their H220 and H220TR foam sheet sets out a 20 mm floor, three cube layers of 50 mm and a 35 mm lid pad, and the finished case weighs 5 kg.

Inside: 465 x 335 x 220 mm. Outside: 502 x 422 x 267 mm on Panaro's page, or 502 x 415 x 267 mm on the STR / HDSTR datasheet. Panaro name IP67 and ATA 300 Cat. 1 for the STR together with MIL-STD-810H testing and a STANAG 4280 / DEF STAN 81-41 report; the trolley drawing and test documents are attached. Made in Italy.

See camera and AV cases, wheeled options in trolley cases and the rest of Panaro MAX.

Often ordered together

  • Wheeled MAX465H220 with cubed foam
  • Three 50 mm pick and pluck layers
  • Extendable handle
  • Complete weight 5 kg
  • Trolley drawing and test reports to download
  • Made in Italy
  • Camera and lens kits on the move
  • AV and broadcast equipment
  • Drone kits
  • Instrument kits for site visits
  • Trade show and demo equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro, MAX Cases range

MPN: MAX465H220STR

Mega Code: PMMAX465H220STR

Configuration: STR, cubed foam (pick and pluck) with trolley

Colour: Black

Internal Dimensions: 465 x 335 x 220 mm (lid 40 + base 180 mm)

External Dimensions: 502 x 422 x 267 mm on Panaro's product page, 502 x 415 x 267 mm on the datasheet

Capacity: 34.27 L

Weight: 5 kg (Panaro page); 5.00 kg (datasheet)

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Certificates: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1 (per Panaro)

Foam: 20 mm base, 3 x 50 mm cubed, 35 mm convoluted lid (Panaro)

Made In: Italy (per Panaro)

Unit: Each

EAN: 8011236465060

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Same case, trolley and foam layout. The HDSTR uses high density foam and weighs 6.06 kg against 5.00 kg on Panaro's datasheet.
Up to three 50 mm layers, sitting above a 20 mm base pad that stays in place.
Panaro list a metal and plastic trolley, with the wheels on stainless steel pins.
Panaro sell cubed foam kits for MAX cases and make custom foam on request.
