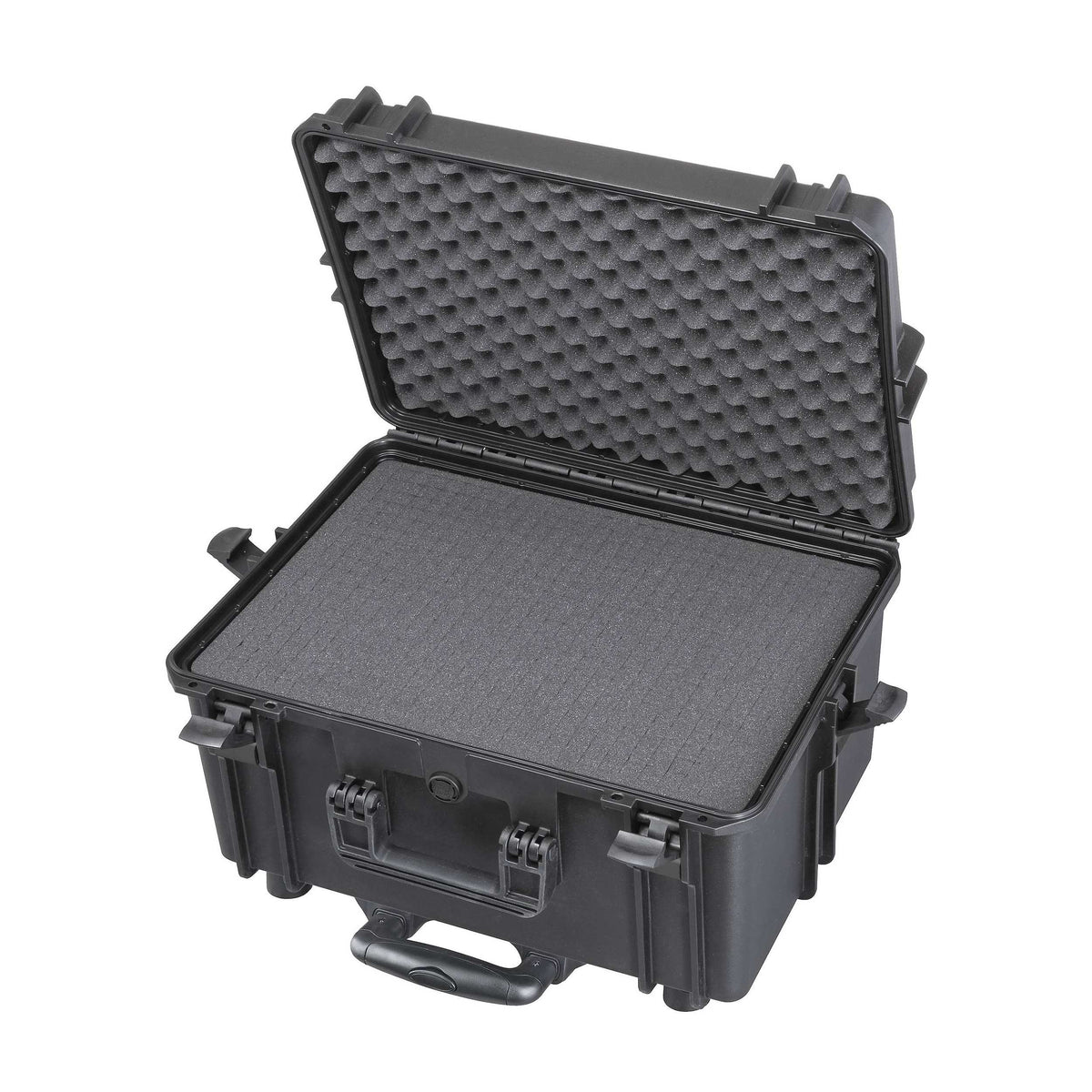

Black Panaro MAX505H280STR deep trolley case open, grey cubed foam filling the base and convoluted foam in the lid

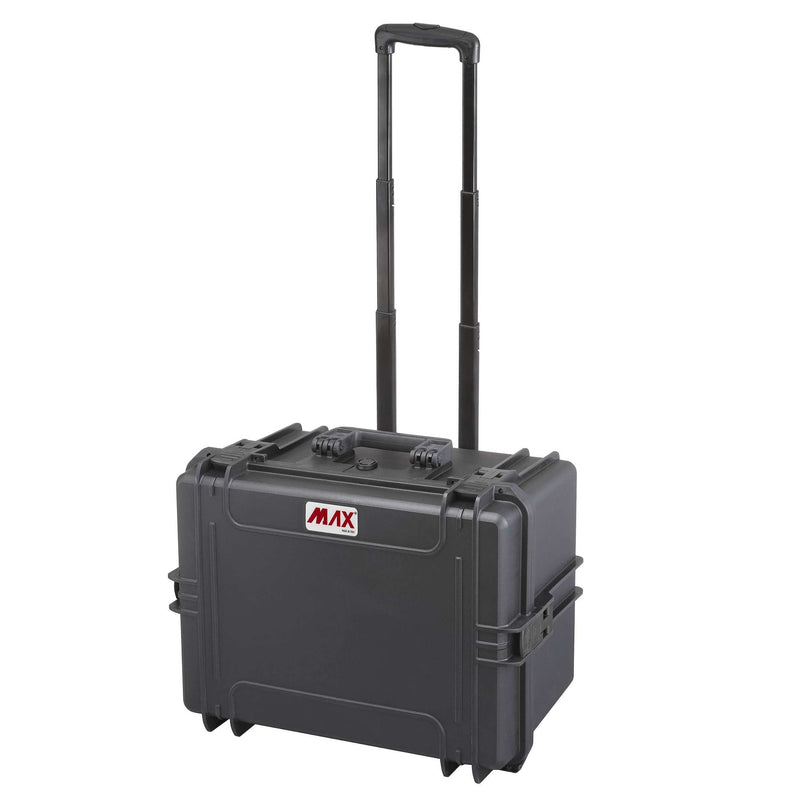

Black MAX505H280TR deep trolley case closed with the telescopic handle raised and red MAX badge
Black MAX505H280 trolley case along the latch side, handle base and wheels below

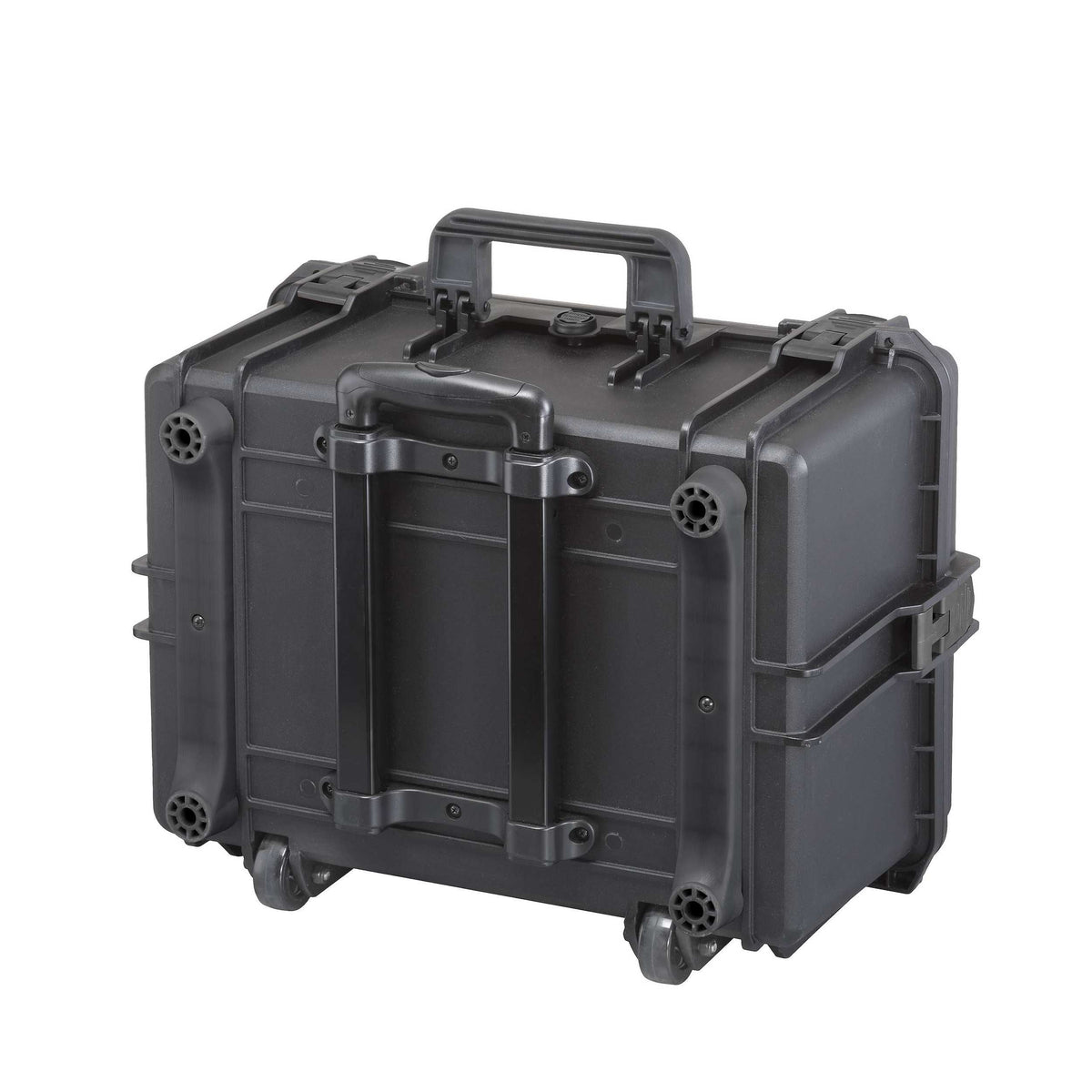

Back of the black MAX505H280 trolley case with the stowed handle frame and two wheels
Black Panaro MAX505H280STR deep trolley case open, grey cubed foam filling the base and convoluted foam in the lid
Black MAX505H280TR deep trolley case closed with the telescopic handle raised and red MAX badge
Black MAX505H280 trolley case along the latch side, handle base and wheels below
Back of the black MAX505H280 trolley case with the stowed handle frame and two wheels
Black Panaro MAX505H280STR deep trolley case open, grey cubed foam filling the base and convoluted foam in the lid
Black MAX505H280TR deep trolley case closed with the telescopic handle raised and red MAX badge
Black MAX505H280 trolley case along the latch side, handle base and wheels below
Back of the black MAX505H280 trolley case with the stowed handle frame and two wheels
Panaro

Panaro MAX505H280STR Waterproof Case with Cubed Foam and Trolley Black

$633.16
$633.16
RRP $677.60
Or 4 payments of $158.29 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505H280STR

Deep Foam Trolley With Three Cube Layers

The Panaro MAX505H280STR is the deep MAX505 trolley case with cubed foam, giving 280 mm of internal height to pluck into, enough for taller kit that will not fit the standard MAX505.

Because the base is deeper, Panaro fill it differently: a 50 mm base pad, three 55 mm layers of pick and pluck cubes, topped in the lid by 50 mm of convoluted foam. Pluck one, two or three layers to suit each item. The interior is 500 x 350 x 280 mm, 49 litres, and Panaro give the fitted case as 6.60 kg.

Closed it measures 555 x 437 x 326 mm on Panaro's drawing, 997 mm with the handle up, on wheels with stainless steel pins. For the H280STR Panaro claim IP67, plus STANAG 4280 with DEF STAN 81-41 environmental testing, MIL-STD-810 and ATA 300 Category 1 for air transport; the reports, datasheet and foam sheet are downloadable here. Made in Italy.

Find the empty H280TR and other sizes in the Panaro range, with more in photography and AV and defence and tactical.

Often ordered together

  • Three 55 mm cubed foam layers over a 50 mm base
  • 49 L of space, 280 mm deep inside
  • Wheels and telescopic handle
  • 6.60 kg fitted, per Panaro
  • 997 mm tall with the handle raised
  • IP67, STANAG 4280, ATA 300 listed by Panaro
  • Drones with gimbal cameras attached
  • Cinema lenses and follow focus units
  • Tall test sets and analysers
  • Two-layer camera kits with bodies below and lenses above
  • Robotics and demonstration equipment

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505H280STR

Mega Code: PMMAX505H280STR

Colour: Black

Configuration: STR, cubed foam with trolley

External Dimensions: 555 x 437 x 326 mm (page and 2D drawing)

Internal Dimensions: 500 x 350 x 280 mm (Panaro datasheet)

Lid + Base Depth: 58 + 222 mm

Capacity: 49 L

Weight: 6.60 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley, stainless steel wheel pins, polyurethane foam

Height With Handle Extended: 997 mm (Panaro drawing)

Foam (Panaro sheet): 50 mm base, 3 x 55 mm cubed layers, 50 mm convoluted lid

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Pack Size: 1 case, sold each

EAN: 8011236505261

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Per Panaro's foam sheet for the H280 TR: a 50 mm base layer, three 55 mm cubed layers and a 50 mm convoluted lid layer.
Panaro's datasheet gives 500 x 350 x 280 mm. Their H280STR web page shows 194 mm, which matches the shallower MAX505 and conflicts with its own 58 + 222 mm depth, so we follow the datasheet.
Panaro give 6.60 kg for the H280STR with its standard cubed foam.
The H280 STR and HDSTR datasheet, the H280 TR drawing, the IP67 certificate, STANAG, MIL-STD-810H and ATA 300 reports, Panaro's fluid and fungus statement and their foam layout sheet.
