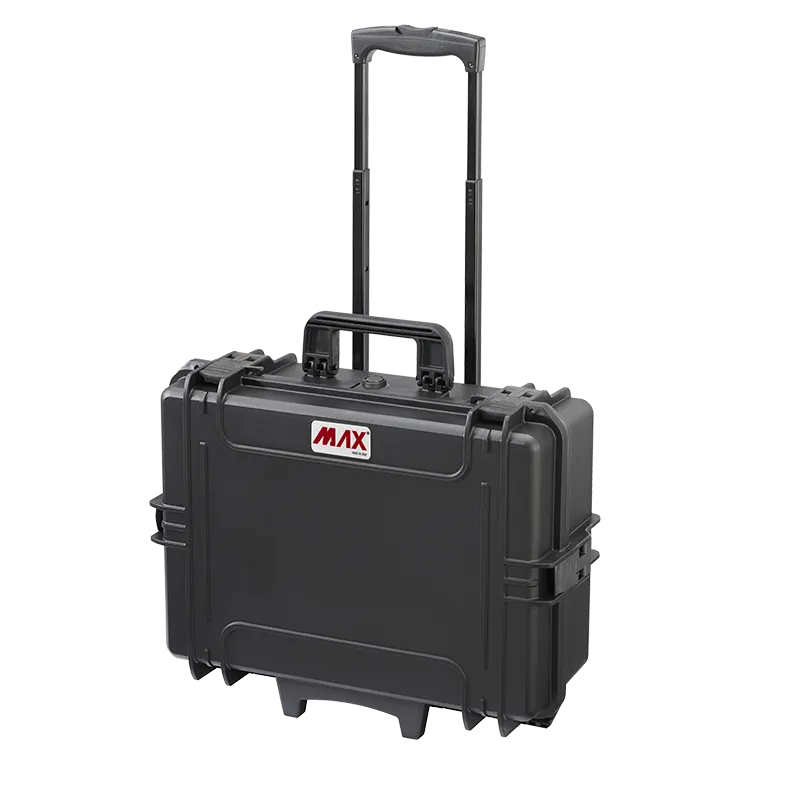

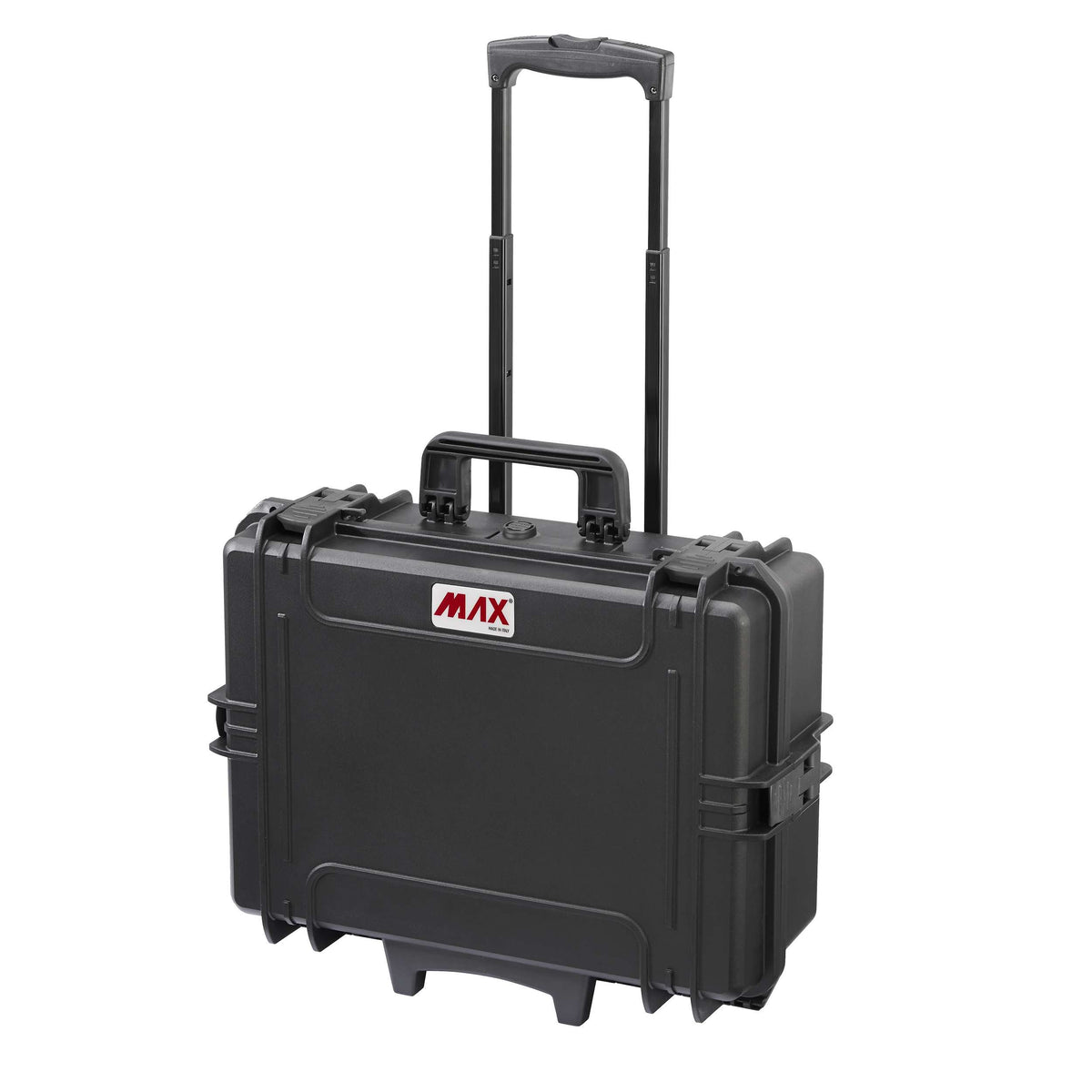

Black MAX505TR trolley case closed with the telescopic handle fully extended and the red MAX logo on the lid

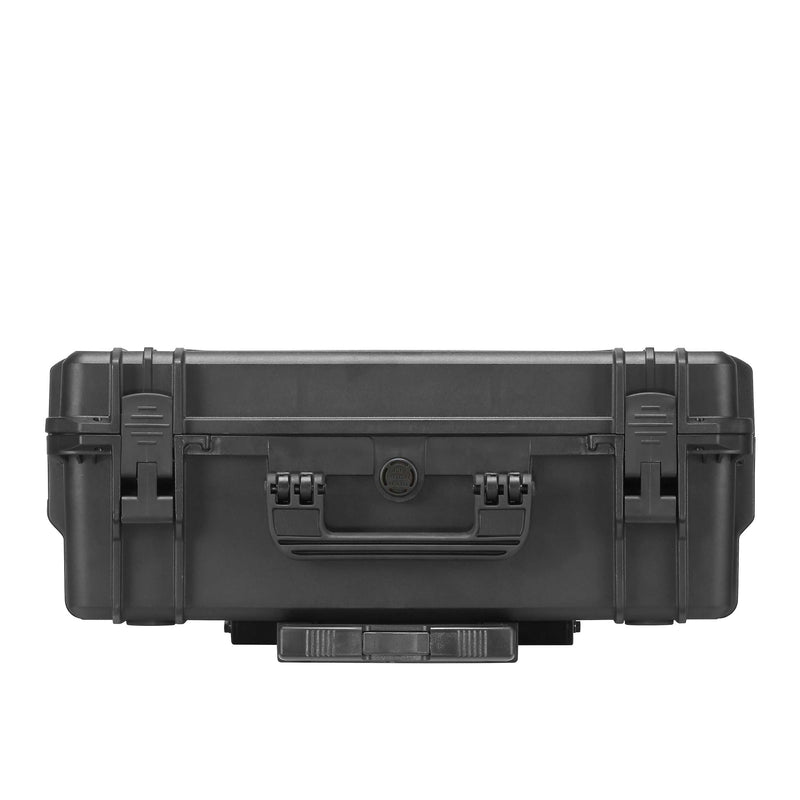

Black MAX505 trolley case from the latch side with the folded handle base and wheels visible below

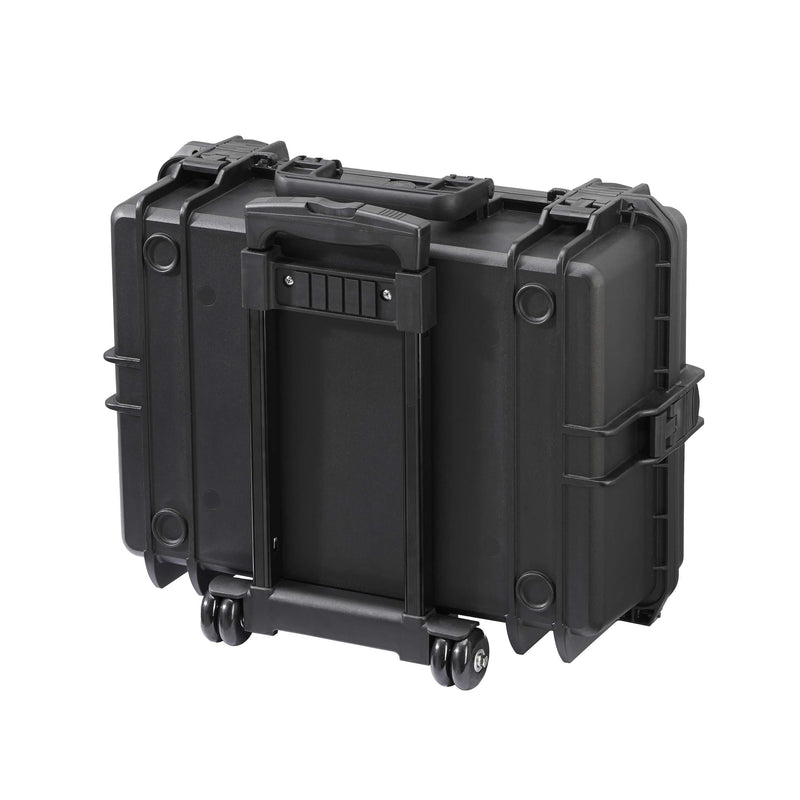

Rear of the black MAX505 trolley case showing the retracted handle frame and two wheels
Black Panaro MAX505STR open on its wheels, grey cubed foam in the base and convoluted foam in the lid
Black MAX505TR trolley case closed with the telescopic handle fully extended and the red MAX logo on the lid
Black MAX505 trolley case from the latch side with the folded handle base and wheels visible below
Rear of the black MAX505 trolley case showing the retracted handle frame and two wheels
Black Panaro MAX505STR open on its wheels, grey cubed foam in the base and convoluted foam in the lid
Black MAX505TR trolley case closed with the telescopic handle fully extended and the red MAX logo on the lid
Black MAX505 trolley case from the latch side with the folded handle base and wheels visible below
Rear of the black MAX505 trolley case showing the retracted handle frame and two wheels
Panaro

Panaro MAX505STR Waterproof Case with Cubed Foam and Trolley Black

$503.69
$503.69
RRP $539.31
Or 4 payments of $125.92 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505STR

Foam-Fitted MAX505 That Rolls

The Panaro MAX505STR is the black MAX505 with pick and pluck cubed foam, plus wheels and an extendable handle so a fitted kit rolls through terminals and car parks instead of being carried.

The trolley adds a metal and plastic handle and wheels on stainless steel pins to the back of the case. Panaro's drawing gives 555 x 445 x 258 mm outside and 970 mm to the top of the handle when it is pulled up. Inside you still have 500 x 350 x 194 mm and the full S foam set: a 20 mm floor pad, two layers of 55 mm cubes and the convoluted lid lining of 50 mm. Panaro give the case as 5.50 kg.

Panaro link a MIL-STD-810H report from the trolley version's page, and the datasheet goes further, printing IP67 beside STANAG 4280 / DEF STAN 81-41. ATA 300 is listed only for the versions without wheels. The lid still closes on an O-ring with nylon double throw latches, with an automatic pressure valve. Made in Italy.

Other trolley cases are in the Panaro range. AV crews will find more in photography and AV, and there are wheeled options across trolleys and accessories.

Often ordered together

  • Wheels and an extendable handle fitted
  • Pick and pluck foam set from Panaro
  • Inside 500 x 350 x 194 mm; outside 555 x 445 x 258 mm
  • Handle up, 970 mm tall
  • Stainless steel wheel pins
  • MIL-STD-810H report; IP67 on the datasheet
  • Broadcast and video kits through airports
  • Travelling service technicians with meters
  • Drone operators moving between sites
  • Trade show demo equipment
  • Lighting and audio accessories for events

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505STR

Mega Code: PMMAX505STR

Colour: Black

Configuration: STR, cubed foam with trolley

External Dimensions: 555 x 445 x 258 mm (page and 2D drawing)

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 5.50 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley, stainless steel wheel pins, polyurethane foam

Height With Handle Extended: 970 mm (Panaro drawing)

Foam (Panaro sheet): 20 mm base, 2 x 55 mm cubed layers, 50 mm convoluted lid

Test Standards Listed by Panaro: MIL-STD-810H report on the page; datasheet also shows IP67, STANAG 4280, DEF STAN 81-41 (no ATA 300)

Pack Size: 1 case, sold each

EAN: 8011236505186

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's drawing shows 970 mm from the floor to the top of the extended handle.
Yes. Panaro's foam sheet lists one foam plan for the MAX505 and the 505 TR, so the cubes and lid pad match the MAX505S.
That is the case without the trolley. Panaro's product page and 2D drawing for the TR give 555 x 445 x 258 mm, which we have published.
No. Panaro attach ATA 300 to the non-wheeled MAX505 only. For the STR you get a linked MIL-STD-810H report, and the datasheet lists IP67 and the STANAG 4280 and DEF STAN 81-41 marks.
Five files: Panaro's STR and HDSTR datasheet, the MAX505 TR 2D drawing, the MIL-STD-810H test report, a fluid contamination and fungus statement, and the foam layout sheet.
