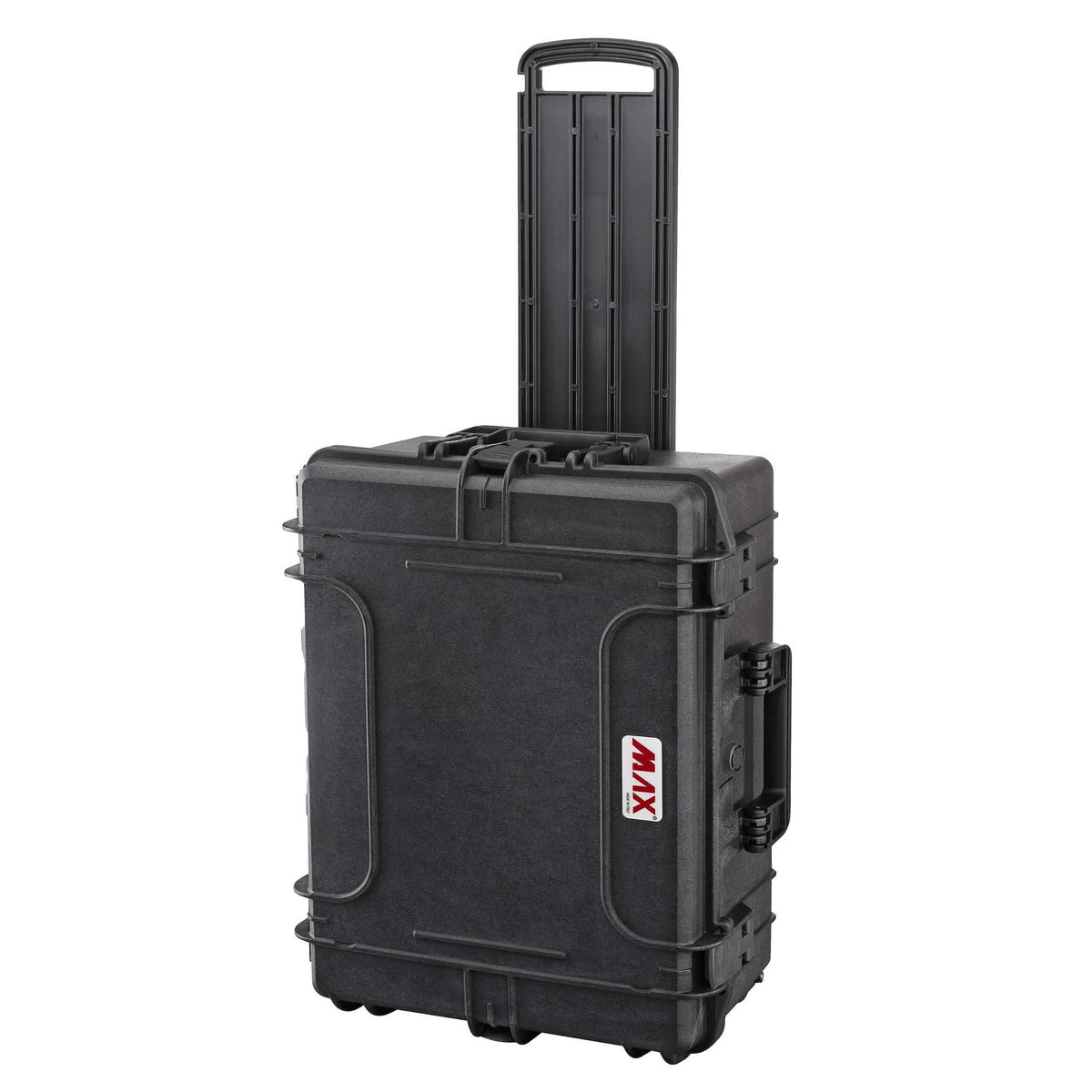

Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front

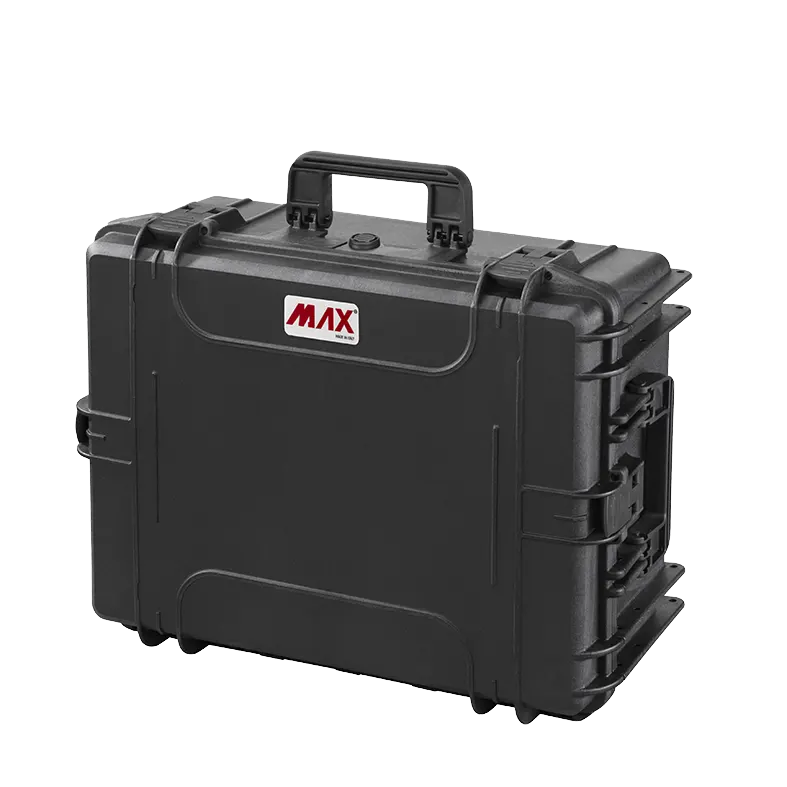

Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245STR open with grey cubed foam filling the base and egg-crate convoluted foam lining the lid, wheels at the back
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245STR open with grey cubed foam filling the base and egg-crate convoluted foam lining the lid, wheels at the back
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
Panaro

Panaro MAX540H245STR Waterproof Case with Cubed Foam and Trolley Black

$671.22
$671.22
RRP $717.20
Or 4 payments of $167.81 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H245STR

Custom Foam Pockets That Roll

The Panaro MAX540H245STR is the trolley MAX540H245 with standard cubed foam below and egg-crate foam above, for a kit you shape once and then wheel from job to job.

Lighting heads, audio interfaces, a drone or a set of meters can each get their own pocket: trace around the item, pull out the cubes, and keep a base layer underneath. Once the load is in, the extendable handle and wheels on stainless steel pins save carrying it through airports, car parks and corridors.

The trolley case weighs 6.90 kg empty on Panaro's datasheet and stands 283 mm tall on a 604 x 473 mm footprint, with a 538 x 405 x 245 mm cavity. The lid takes 50 mm of the depth and the base 195 mm, so taller items go in the base.

An injection moulded polypropylene shell, nylon latches and an O-ring keep it sealed. Panaro's downloads for this size show an IP67 certificate, ATA 300 for flights, a MIL-STD-810H certificate and environmental testing to STANAG 4280 with DEF STAN 81-41. It is made in Italy.

Other rolling options sit in trolley and accessory listings, and camera users can check photography gear cases or browse all Panaro cases.

Often ordered together

  • Standard cubed foam in the base
  • Convoluted foam in the lid
  • Wheels on stainless steel pins with an extendable handle
  • 604 x 473 x 283 mm outside, 538 x 405 x 245 mm inside
  • Stackable interlocking shell
  • Made in Italy, per Panaro
  • Portable lighting and audio kits
  • Drones and accessories
  • Trade show demo equipment
  • Meters and sensors for site visits
  • Airport travel with fragile gear

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX540H245STR

Mega Code: PMMAX540H245STR

Configuration: Cubed foam (S) in the base, convoluted foam in the lid, trolley

Internal Size: 538 x 405 x 245 mm

External Size: 604 x 473 x 283 mm

Lid + Base Depth: 50 + 195 mm

Weight: 6.90 kg for the MAX540H245TR case, per Panaro

Capacity: 53.38 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Colour: Black

Pack Size: 1

Unit: Each

EAN: 8011236540132

Downloads

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

One black MAX540H245 trolley case with pre-cubed foam for the base and an egg-crate pad for the lid, the same set Panaro photograph in the MAX540H245STR.
The base is 195 mm deep and the lid 50 mm, per Panaro. Leave some foam under each item, so the usable pocket depth is a little less than the base depth.
Panaro make a padded divider insert for this case size, sold in our MAX540H245CAMTR. Ask us if you want a divider kit on its own.
Panaro list 6.90 kg for the MAX540H245TR without foam.
The trolley version's 2D drawing and datasheet are in the downloads on this page, beside Panaro's test certificates.
