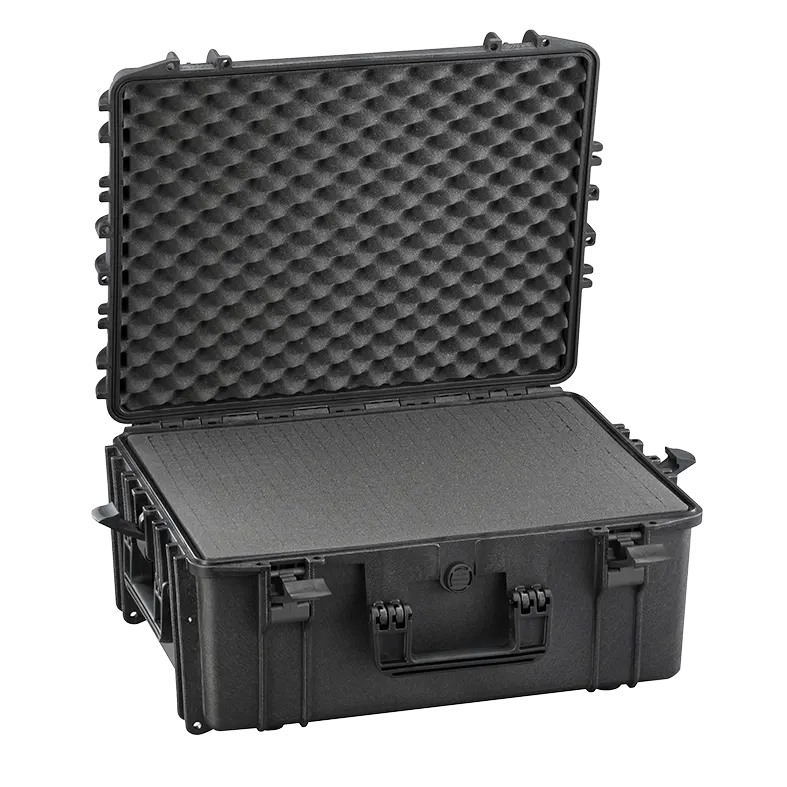

MAX540H245S open, grey cubed pick and pluck foam filling the base and convoluted egg-crate foam lining the lid, carry handle at the front

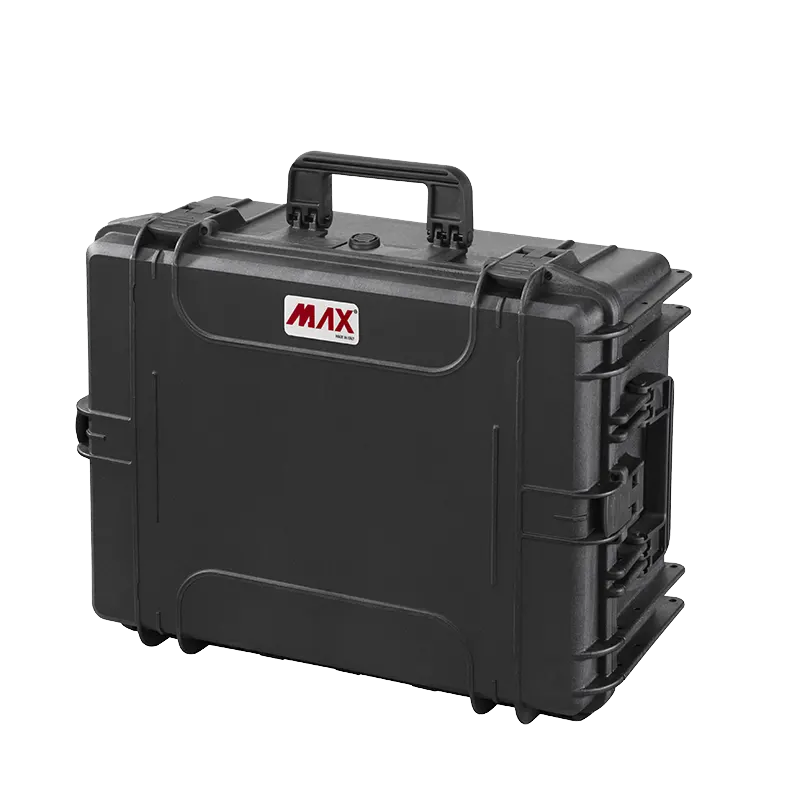

Panaro MAX540H245 black case closed, three-quarter view showing the top carry handle, the red MAX badge on the lid and the side latches
Front of a closed black MAX540H245 lying flat: two double throw latches, the soft grip carry handle and the round pressure valve above it
MAX540H245S open, grey cubed pick and pluck foam filling the base and convoluted egg-crate foam lining the lid, carry handle at the front
Panaro MAX540H245 black case closed, three-quarter view showing the top carry handle, the red MAX badge on the lid and the side latches
Front of a closed black MAX540H245 lying flat: two double throw latches, the soft grip carry handle and the round pressure valve above it
MAX540H245S open, grey cubed pick and pluck foam filling the base and convoluted egg-crate foam lining the lid, carry handle at the front
Panaro MAX540H245 black case closed, three-quarter view showing the top carry handle, the red MAX badge on the lid and the side latches
Front of a closed black MAX540H245 lying flat: two double throw latches, the soft grip carry handle and the round pressure valve above it
Panaro

Panaro MAX540H245S Waterproof Case with Cubed Foam Black

$527.78
$527.78
RRP $557.41
Or 4 payments of $131.95 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H245S

Pluck the Foam to Fit Your Kit

The Panaro MAX540H245S arrives with pick and pluck cubes filling the lower half and an egg-crate profile pad inside the lid, so you can shape the inside around one fixed set of gear and carry it by hand.

Mark out each item on the foam, pull the cubes away and the pocket is done, no cutting tools needed. Leave a layer under each pocket for cushioning. The egg-crate foam in the lid then holds everything down when the case is shut. It suits kits that stay the same from job to job, such as a measuring set, a camera with two lenses or a first aid layout.

On Panaro's figures the empty case is 5.30 kg and 594 x 473 x 270 mm outside; the cavity, 538 x 405 x 245 mm, is split into 50 mm of lid and 195 mm of base. Carry handles sit on top and on both ends.

Built in Italy, it shares the MAX seal and latch design. The certificates they publish for this case start with IP67 and ATA 300 and include MIL-STD-810H testing and a STANAG 4280 report (DEF STAN 81-41 too). The lid has space for a screen print or resin label.

First aid teams can find more in medical and first aid; for other sizes, see protective cases or Panaro.

Often ordered together

  • Pick and pluck cubed foam in the base
  • Egg-crate convoluted foam in the lid
  • No tools needed to shape the pockets
  • 538 x 405 x 245 mm interior
  • Handles on top and both ends
  • Certified to IP67 and ATA 300, per Panaro
  • A camera body with two or three lenses
  • Measuring and calibration sets
  • First aid or medical device layouts
  • Presentation samples for sales calls
  • Tablets and handheld scanners

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX540H245S

Mega Code: PMMAX540H245S

Configuration: Cubed foam (S) in the base, convoluted foam in the lid

Internal Size: 538 x 405 x 245 mm

External Size: 594 x 473 x 270 mm

Lid + Base Depth: 50 + 195 mm

Weight: 5.30 kg for the MAX540H245 case, per Panaro

Capacity: 53.38 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Colour: Black

Pack Size: 1

Unit: Each

EAN: 8011236540064

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Lay your items on the foam, mark around them, then pull out the cubes inside each outline. Keep the bottom layer in place so each item sits on foam rather than the shell.
Convoluted, egg-crate profile foam, as Panaro's photo of the MAX540H245S shows. It presses gently on the contents when the case is closed.
Panaro sell cubed foam kits for the MAX range, and custom cut foam is available from Panaro on request. Contact us for a replacement kit for this size.
No, this is the hand-carry version. The MAX540H245STR pairs this foam set with a trolley: wheels plus a pull-out handle.
Yes. Every certificate Panaro publish for the MAX540H245 is downloadable on this page, next to the datasheet and drawing.
