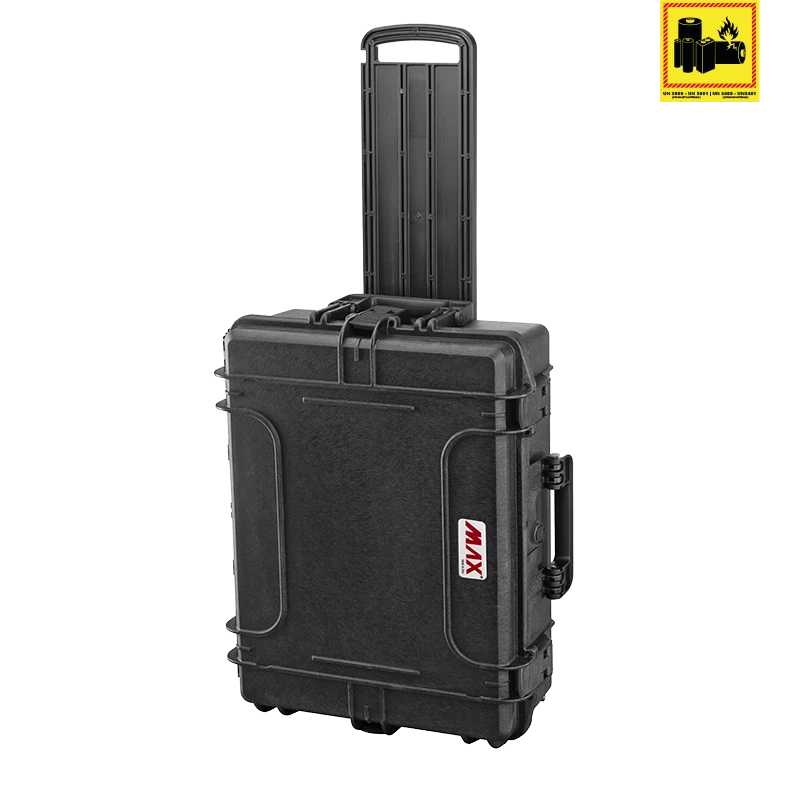

Panaro MAX540H190STR upright on its wheels with the extendable handle pulled up, black MAX540H190 shell with red MAX logo
Panaro MAX540H190STR three-quarter view of the closed lid showing the two wheels and side handles at the trolley end

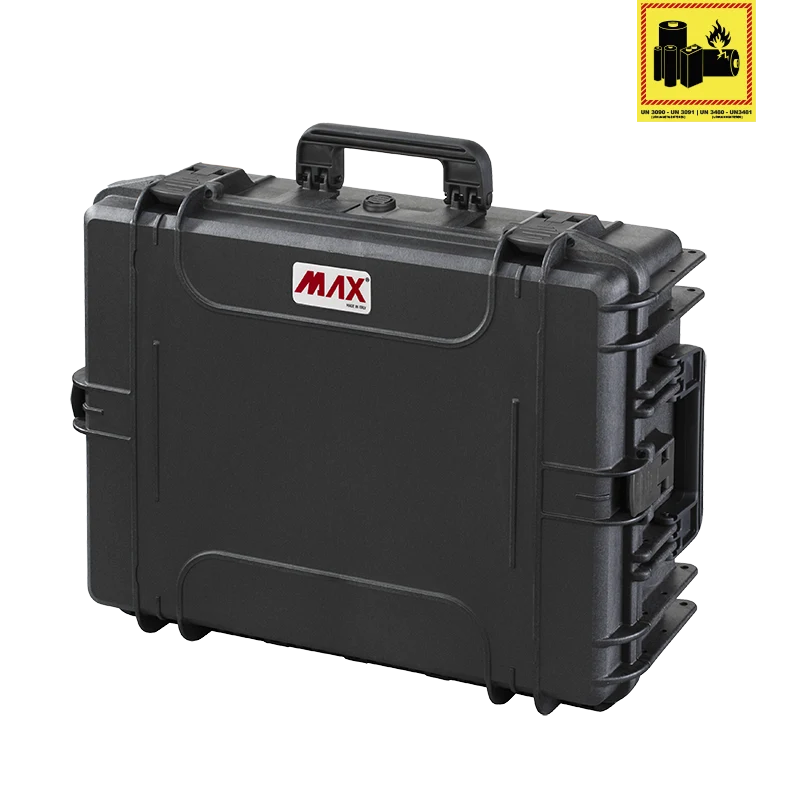

Panaro MAX540H190STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Panaro MAX540H190STR lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro MAX540H190STR open: grey cubed foam in the base and convoluted foam in the lid, wheels at the trolley end
Panaro MAX540H190STR upright on its wheels with the extendable handle pulled up, black MAX540H190 shell with red MAX logo
Panaro MAX540H190STR three-quarter view of the closed lid showing the two wheels and side handles at the trolley end
Panaro MAX540H190STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Panaro MAX540H190STR lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro MAX540H190STR open: grey cubed foam in the base and convoluted foam in the lid, wheels at the trolley end
Panaro MAX540H190STR upright on its wheels with the extendable handle pulled up, black MAX540H190 shell with red MAX logo
Panaro MAX540H190STR three-quarter view of the closed lid showing the two wheels and side handles at the trolley end
Panaro MAX540H190STR lying flat, latch side view with carry handle, two latches, pressure valve and a wheel at the trolley end
Panaro MAX540H190STR lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro

Panaro MAX540H190STR Waterproof Case with Cubed Foam and Trolley Black

$601.04
$601.04
RRP $646.11
Or 4 payments of $150.26 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H190STR

A Wide Foam Case You Can Roll

The Panaro MAX540H190STR gives you cubed foam and lid foam in the trolley version of the MAX540H190, for single-layer kits that travel.

Shape the cubes around each item and the whole kit is visible the moment you open the lid. Inside there is 538 x 405 x 190 mm of floor. This wheeled version measures 604 x 473 x 225 mm outside and Panaro give its weight as 6.40 kg; it keeps the side grips at each end.

Panaro's documents for the MAX540H190TR include MIL-STD-810H and IP67 results. The polypropylene shell is made in Italy.

Good for sales demos, trade show kits, drone teams and technicians who move from car to site with a broad kit.

See cases with wheels, protective cases and the Panaro line-up.

Often ordered together

  • Cubed foam base with lid foam
  • Trolley wheels and extendable handle
  • 41.40 litres of space
  • Trolley shell weight 6.40 kg, per Panaro
  • IP67 test certificate from Panaro
  • Stackable shell with padlock holes
  • Trade show and demo kits
  • Drone systems with spare batteries
  • Technician instrument kits
  • Laptop and projector kits

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX540H190STR

Mega Code: PMMAX540H190STR

Configuration: Cubed foam, convoluted lid foam and trolley

Colour: Black

Internal Dimensions: 538 x 405 x 190 mm

External Dimensions: 604 x 473 x 225 mm (trolley version)

Lid + Base Depth: 50 + 140 mm

Case Weight (Panaro, MAX540H190TR): 6.40 kg

Capacity: 41.40 litres

Shell and Trolley: Polypropylene shell, metal and plastic trolley, stainless steel wheel pins

Certifications (Panaro, MAX540H190TR): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, UN4H2

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236540040

Downloads

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Same foam and interior; the STR adds wheels and an extendable handle and grows to 604 x 473 x 225 mm outside.
Panaro offer a cubed foam kit for the MAX540H190. Ask us if you need one.
Panaro offer the UN version separately; this foam trolley case is the standard one. For lithium battery freight, follow your carrier's dangerous goods rules.
The trolley datasheet, drawing and Panaro's certificates are attached below the description.
