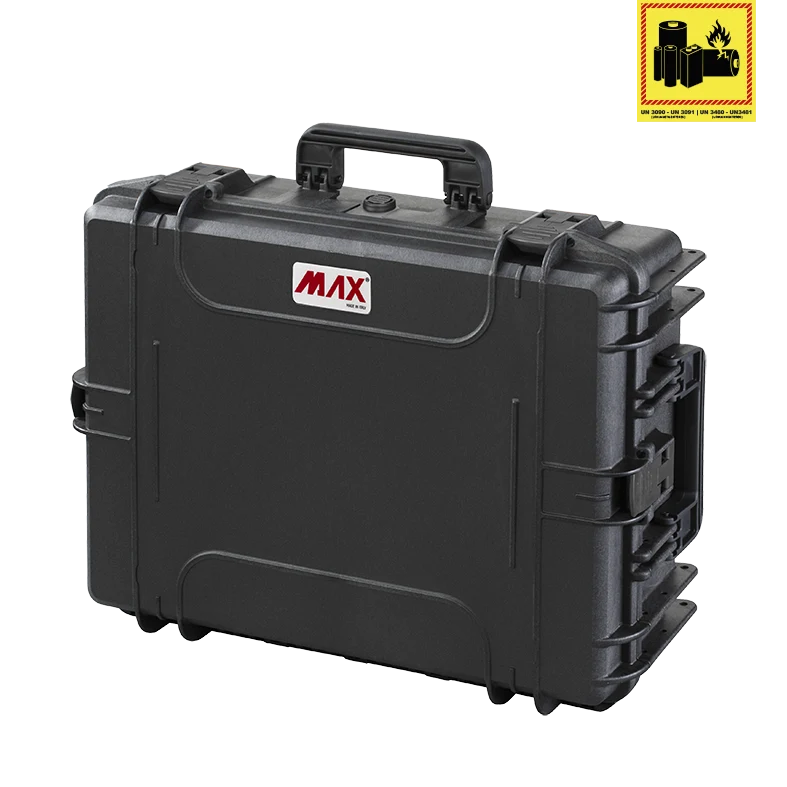

Panaro MAX540H190 closed, three-quarter view of the black MAX540H190 shell with red MAX logo, top handle and side handle
Panaro MAX540H190 open and empty, plain black interior of the MAX540H190 base and lid
Panaro MAX540H190 straight-on lid view of the black MAX540 shell with red MAX logo, top handle and side handles folded flat
Panaro MAX540H190 lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro MAX540H190 lying flat, latch side view of the MAX540H190 with carry handle, two latches and pressure valve
Panaro MAX540H190 closed, three-quarter view of the black MAX540H190 shell with red MAX logo, top handle and side handle
Panaro MAX540H190 open and empty, plain black interior of the MAX540H190 base and lid
Panaro MAX540H190 straight-on lid view of the black MAX540 shell with red MAX logo, top handle and side handles folded flat
Panaro MAX540H190 lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro MAX540H190 lying flat, latch side view of the MAX540H190 with carry handle, two latches and pressure valve
Panaro MAX540H190 closed, three-quarter view of the black MAX540H190 shell with red MAX logo, top handle and side handle
Panaro MAX540H190 open and empty, plain black interior of the MAX540H190 base and lid
Panaro MAX540H190 straight-on lid view of the black MAX540 shell with red MAX logo, top handle and side handles folded flat
Panaro MAX540H190 lid view of the black MAX540 shell with the side handles raised on both ends for a two-person carry
Panaro MAX540H190 lying flat, latch side view of the MAX540H190 with carry handle, two latches and pressure valve
Panaro

Panaro MAX540H190 Waterproof Case Black

$378.84
$378.84
RRP $398.46
Or 4 payments of $94.71 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H190

A Wide, Shallow Shell Left Empty

The Panaro MAX540H190 is a large, low-profile watertight case supplied empty, with an open 538 x 405 x 190 mm interior for your own layout.

The wide footprint suits flat items: laptops and tablets, panels, documents, instruments and kit you want to lay out side by side rather than stack. The 41.40 litres divide into a 50 mm lid and a 140 mm base. Outside it measures 594 x 473 x 215 mm and weighs 4.76 kg, per Panaro.

As well as the top handle there are side handles on both ends, so two people can share the load. Panaro list IP67 sealing and UN4H2 for the MAX540H190. ATA 300 is not listed for this height.

It is moulded in Italy in polypropylene and has a self-venting pressure valve, two latches and holes to padlock the lid.

See protective cases, defence cases and other Panaro sizes.

Often ordered together

  • Supplied empty, open interior
  • Inside 538 x 405 x 190 mm, 41.40 litres
  • Top handle plus side handles at both ends
  • IP67 sealing per Panaro
  • Pressure release valve fitted
  • Weight 4.76 kg, per Panaro
  • Made in Italy
  • Laptops, tablets and flat electronics
  • Instrument panels and custom fit-outs
  • Documents and field records
  • Flat tool sets laid side by side

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

MPN: MAX540H190

Mega Code: PMMAX540H190

Configuration: Empty case

Colour: Black

Internal Dimensions: 538 x 405 x 190 mm

External Dimensions: 594 x 473 x 215 mm

Lid + Base Depth: 50 + 140 mm

Empty Case Weight (Panaro, MAX540H190): 4.76 kg

Capacity: 41.40 litres

Shell: Polypropylene, nylon latches, polymer O-ring, side handles both ends

Certifications (Panaro, MAX540H190): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, UN4H2

Made In: Italy, per Panaro

Pack Size: 1

Unit: Each

EAN: 8011236540019

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. Foam comes in the MAX540H190S (cubed) and MAX540H190HDS (high density) listings.
The internal height in millimetres. The MAX540H245 has the same footprint with a deeper 245 mm interior.
Panaro list UN4H2 for this model but offer a dedicated UN version with markings and stickers for dangerous goods. This is the standard case, so check with your freight carrier first.
The MAX540H190 datasheet, 2D drawing, IP67 certificate, environmental test report and MIL-STD-810H report are on this page.
