MAX540H245CAMTR open, grey padded divider insert split into compartments in the base and convoluted foam in the lid, wheels at the rear

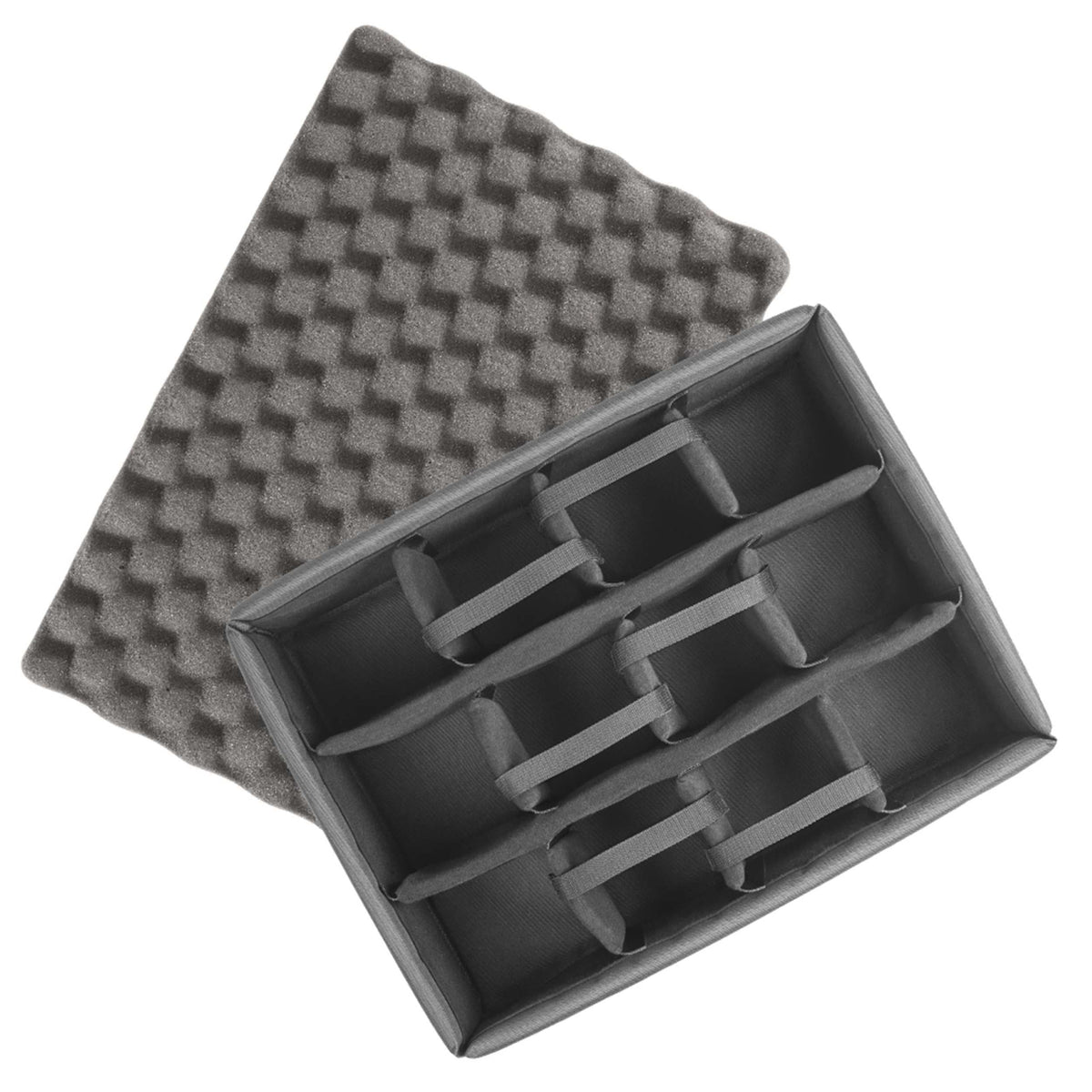

MAX540H245 padded divider insert in grey beside its convoluted egg-crate lid foam pad, dividers forming small compartments
Top view of the MAX540H245 padded divider insert, grey walls and movable dividers arranged in three rows of compartments
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side

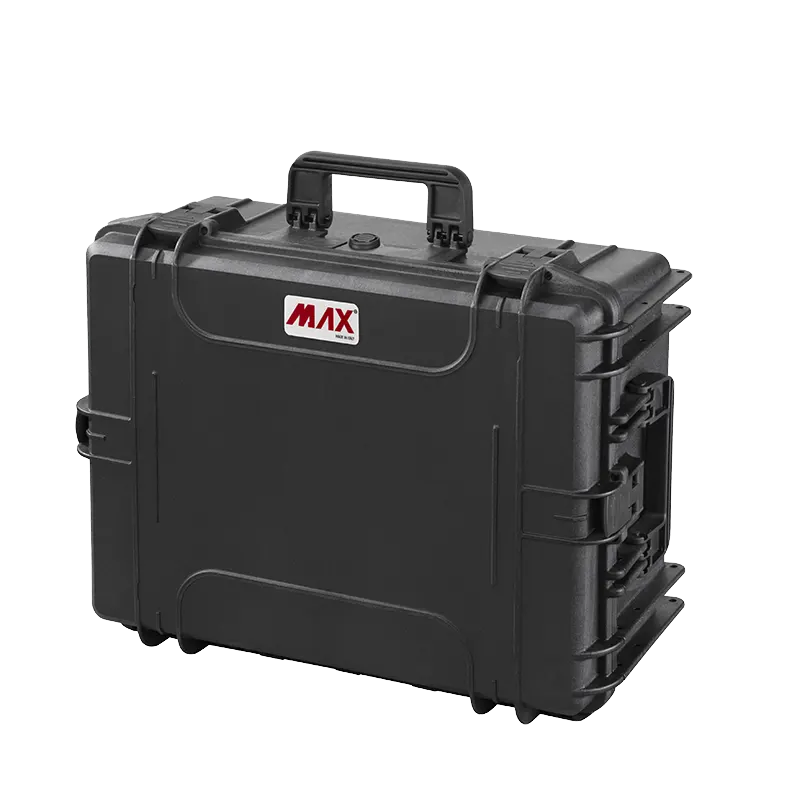

Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245CAMTR open, grey padded divider insert split into compartments in the base and convoluted foam in the lid, wheels at the rear
MAX540H245 padded divider insert in grey beside its convoluted egg-crate lid foam pad, dividers forming small compartments
Top view of the MAX540H245 padded divider insert, grey walls and movable dividers arranged in three rows of compartments
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
MAX540H245CAMTR open, grey padded divider insert split into compartments in the base and convoluted foam in the lid, wheels at the rear
MAX540H245 padded divider insert in grey beside its convoluted egg-crate lid foam pad, dividers forming small compartments
Top view of the MAX540H245 padded divider insert, grey walls and movable dividers arranged in three rows of compartments
Panaro MAX540H245TR stood upright on its wheels with the telescopic trolley handle pulled out and the MAX logo on the side
Closed MAX540H245TR seen from the wheel end, both rear wheels visible, red MAX badge on the lid and latches along the front
Front view of the MAX540H245TR lying flat, two latches and the carry handle, with a trolley wheel visible at the left end
Panaro

Panaro MAX540H245CAMTR Waterproof Case with Padded Dividers and Trolley Black

$793.98
$793.98
RRP $854.06
Or 4 payments of $198.50 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX540H245CAMTR

Padded Bays Below, Egg-Crate Foam Above

The Panaro MAX540H245CAMTR rolls a camera, audio or drone kit around in padded compartments, with convoluted foam in the lid pressing down on everything when it shuts.

A grey divider insert turns the base into rows of bays for a body, lenses, a field monitor or a small drone and its controller. Because the lid keeps its egg-crate foam rather than an organiser panel, gear is held from above as well as at the sides, which helps with tall lenses and heavier items that would otherwise lift in transit. Hook and loop tabs on the dividers let you reshape the bays.

It is built on the MAX540H245TR trolley shell. Its numbers from Panaro: 6.90 kg empty; outside, 604 x 473 x 283 mm; inside, 538 x 405 x 245 mm, of which the lid holds 50 mm and the base 195 mm. It brings an extendable handle and wheels on stainless steel pins.

The seal is a polymer O-ring around the lid, latches are nylon, and the body is polypropylene made in Italy. Water and dust are covered by Panaro's IP67 certificate, air carriage by ATA 300, and rough handling by MIL-STD-810H plus the STANAG 4280 and DEF STAN 81-41 trials.

For crews already on Panaro, the MAX catalogue lists every size; drone and film users also shop our photo and video cases and hard protective cases.

Often ordered together

  • Grey padded divider insert in the base
  • Convoluted egg-crate foam in the lid
  • Telescopic handle with wheels on stainless steel pins
  • 538 x 405 x 245 mm interior
  • Watertight seal and automatic pressure valve
  • Made in Italy, per Panaro
  • Camera bodies with tall telephoto lenses
  • Drone kits that should not shift in transit
  • Audio recorders, microphones and wireless packs
  • Corporate video crews on location
  • Field monitors and gimbals

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro (MAX Cases)

MPN: MAX540H245CAMTR

Mega Code: PMMAX540H245CAMTR

Configuration: Padded dividers in the base, convoluted foam in the lid, trolley

Internal Size: 538 x 405 x 245 mm

External Size: 604 x 473 x 283 mm

Lid + Base Depth: 50 + 195 mm

Weight: 6.90 kg for the MAX540H245TR case, per Panaro

Capacity: 53.38 litres

Materials: Polypropylene shell, nylon latches, polymer O-ring, metal and plastic trolley

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300

Made In: Italy, per Panaro

Colour: Black

Pack Size: 1

Unit: Each

EAN: 8011236540088

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's photo of the MAX540H245CAMTR shows a grey padded divider insert in the base with egg-crate foam fixed in the lid. The case itself is the black MAX540H245 with trolley wheels and handle.
Dividers suit kit that changes from job to job, because the bays can be reshaped. Cubed foam, as in the MAX540H245STR, is plucked once to the outline of each item and stays that way.
No, this version has foam in the lid. The MAX540H245CAMORGTR is the same trolley with a zipped pocket organiser in the lid instead.
Panaro give 6.90 kg for the empty MAX540H245TR case. The divider insert and lid foam add to that, and Panaro do not publish a weight for this exact configuration.
Yes, all of them sit in the downloads section here: datasheet, drawing, each test certificate and the fluid contamination declaration.
